5340-00-343-1397
Handwheel
5340003431397 003431397 SK5054N6233PC8 S5901F3113972PC17 S5901H3113985PC1B17 D201-13 D201-13G 5-063-018
An item having a major diameter of 3 or more inches (76.2mm) other than items having spoked or sumulated spoked construction, which may be under 3 inches (76.2mm) designed to be gripped by the hand to transmit rotary motion to other devices through a center axis, fabricated in the form of a solid body with simulated spokes or a recessed surface between the rim and the hub, or it may be built up in the form of a frame having a central hub connected to the rim by the spokes. It may have reference markings in the form of dots, arrows, hairline, etc., to indicate the relative position and/or direction of rotation of the item(s) with which it is used. It may also include an integral ratchet device. For similar items having a maximum diameter of less than 3 inches (76.2mm), see KNOB. For items calibrated in units or series of divisions denoting relative positioning of associated devices, see DIAL (as modified). Excludes STEERING WHEEL. View more Handwheel
November 2023
14
Marketplace 5340-00-343-1397
Request a Quotation from participating marketplace vendors
Related Documents 5340-00-343-1397 4+ Documents (More...)
(Identification) 1/2 NSN 5340-00-343-1397 (Identification) 2/2 - - 1.
D201-13 HANDWHEEL 18 EA NS Request Quotation Updated Every Day 5340-00-343-1397 RQST NE Updated Every
/fsg-38/fsc-3830/de
Handwheel 5340003431397 003431397 Day 5340-00-343-1397 RQST Updated Every Day 5340-00-343-1397
RQST NE Related Documents 5340-00-343-1397 https//www.nsnlookup.com /fsg-38/fsc-3830/de 3830-12-123-2902
Restrictions 5340-00-343-1397
5340-00-343-1397 is a Handwheel that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5340-00-343-1397
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5340-00-343-1397
- US Navy (N9BZ)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- HDHX
- Brazil (YA01)
- Effective Date:
- 1 Dec 2001
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
Approved Sources 5340-00-343-1397
- Part Number
- Manufacturer
- Status
- S5901F3113972PC17
- Manufacturer
- 80064 - Naval Ship Systems Command (Active)
- Primary Buy
- Primary Buy
- S5901H3113985PC1B17
- 80064 - Naval Ship Systems Command (Active)
- Primary Buy
- Primary Buy
- D201-13
- 28193 - Henry Technologies, Inc. (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- D201-13G
- 28193 - Henry Technologies, Inc. (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 5-063-018
- 28193 - Henry Technologies, Inc. (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- SK5054N6233PC8
- 28193 - Henry Technologies, Inc. (Obsolete)
- Advisory Reference
- Advisory Reference
Datasheet 5340-00-343-1397
- Characteristic
- Specifications
- FIIG
- Specifications
- A25300
- Material And Location [ANNQ]
- Die Cast White Metal Wheel
- Surface Treatment And Location [ANNR]
- Enamel Overall
- Color And Location [AWJT]
- Brown Overall

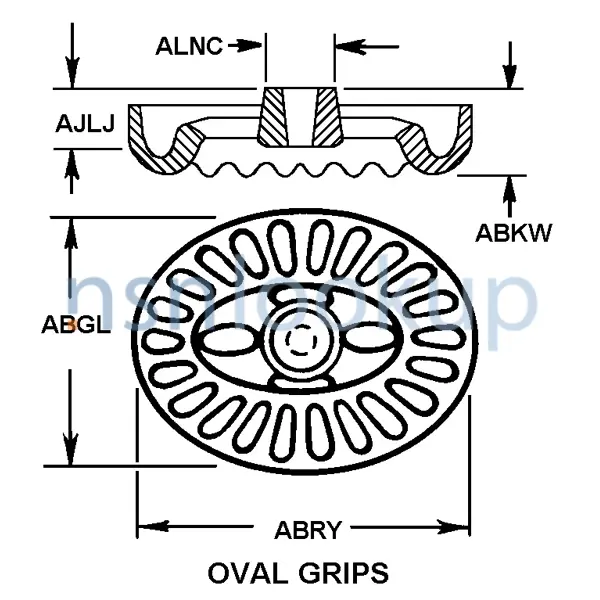

- Handwheel Style [AWJX]
- Oval Grips
- Width [ABGL]
- 1.625 Inches Nominal
- Overall Height [ABKW]
- 0.625 Inches Nominal
- Length [ABRY]
- 2.875 Inches Nominal
- Hub Length [AJLJ]
- 0.375 Inches Nominal
- Hub Outside Diameter [ALNC]
- 0.938 Inches Nominal
- Drive Facility Style [AWJY]
- Flatted, Two Sides Parallel
- Inside Diameter [AARX]
- 0.534 Inches Nominal
- Drive Width [AWGN]
- 0.377 Inches Nominal
- Handle Rotating Feature [AWKD]
- Not Included
- Handle Counterbalancing Weight [AWKE]
- Not Included
- Ratchet [AWKF]
- Not Included
- Reference Marking [ABSP]
- Open/Arrow/Ccw
Weapon Systems (WSDC) 5340-00-343-1397
DLA Procurement Analysis 5340-00-343-1397
- Last Stock Position:
- 124 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5340-00-343-1397
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Mar 2023
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- Oct 2020
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Oct 2019
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Department of the Navy (DN)
- N
- X
- Formerly 4130
- X
- Defense Logistics Agency (DS)
- I
- X
- Formerly 4130
- X
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 5340-00-343-1397
Freight Information 5340-00-343-1397
5340-00-343-1397 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 133300. A Sub NMFC of Z. It has a NMFC Description of MACHINERY/MACHINES NOI. 5340-00-343-1397 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 63220 which rates the freight between FCL and LCL. 5340-00-343-1397 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5340-00-343-1397 is not classified as a special type of cargo when transported by water. 5340-00-343-1397 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5340-00-343-1397
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- Any Suitable Container
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Procurement History 5340-00-343-1397 1 Records
Contracting Technical Data File (CTDF) 5340-00-343-1397 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
