5340-00-294-7317
Door Handle
5340002947317 002947317 8385336
A device designed to actuate the mechanism of a door latch, either by a turning or pulling of the handle, or by operation of a PUSH BUTTON or trigger, and it may be with or without an escutcheon plate. Exludes items having an integral latch. See also DOORKNOB. View more Door Handle
August 2023
15
Marketplace 5340-00-294-7317
Request a Quotation from participating marketplace vendors
Related Documents 5340-00-294-7317 1+ Documents (More...)
RQST NE Updated Every Day 5340-00-294-7317 RQST Updated Every Day 5340-00-294-7317 RQST NE Related Documents
5340-00-294-7317 1+ Documents ( More... ) https//www.nsnlookup.com /fsg-53/fsc-5340/us 5340-00-294-7317
Restrictions 5340-00-294-7317
5340-00-294-7317 is a Door Handle that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
End Users 5340-00-294-7317
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Sep 2009
Approved Sources 5340-00-294-7317
- Part Number
- Manufacturer
- Status
- 8385336
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
Datasheet 5340-00-294-7317
- Characteristic
- Specifications
- FIIG
- Specifications
- A250A0
- Accommodated Shaft Diameter [ABVM]
- 0.622 Inches Minimum And 0.623 Inches Maximum
- Color [HUES]
- Olive Drab Overall
- Groove Width [ABGF]
- 0.031 Inches Nominal
- Handle Clearance [ALMZ]
- 2.312 Inches Nominal
- Handle Height [AGES]
- 2.812 Inches Nominal
- Head Diameter [AASL]
- 0.622 Inches Minimum And 0.623 Inches Maximum
- Material Document And Classification [MDCL]
- Qq-S-681,Class 80-40 Fed Spec Single Material Response Overall
- Material [MATT]
- Steel Uns J05002 Overall
- Nominal Thread Size [CQJX]
- 0.375 Inches
- Integral Shaft Style [ALMR]
- Threaded
- Shaft Accommodation Style [ABHH]
- Round
- Shaft Length [ABXF]
- 2.312 Inches Nominal
- Shank Diameter [AAZE]
- 0.622 Inches Minimum And 0.624 Inches Maximum
- Shank Length [AATR]
- 1.422 Inches Nominal
- Overall Length [ABHP]
- 12.844 Inches Nominal
- Square Shaft Width [AEDS]
- 0.497 Inches Minimum And 0.498 Inches Maximum

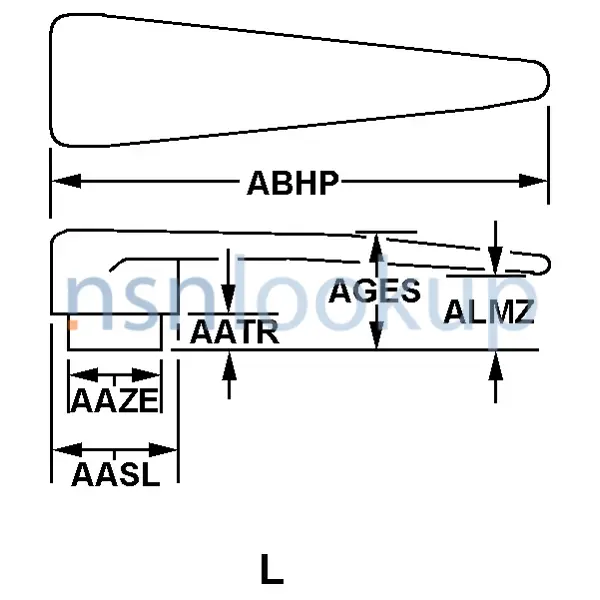

- Style Designator [STYL]
- L
- Surface Treatment Document And Classification [STDC]
- Tt-E-485 Fed Spec Single Treatment Response Overall
- Surface Treatment [SFTT]
- Enamel Semigloss Handle
- Thread Class [AAJD]
- 2A
- Thread Length [AASA]
- 0.390 Inches Nominal
- Thread Series Designator [THSD]
- Unf
Similar Supply Items to 5340-00-294-7317
Freight Information 5340-00-294-7317
5340-00-294-7317 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 018820. A Sub NMFC of Z. It has a NMFC Description of AUTO HANDLES. 5340-00-294-7317 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. 5340-00-294-7317 is rated as class 70 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 08750 which rates the freight between FCL and LCL. It has a Water Commodity Code (WCC) of 585 for ocean manifesting and military sealift. 5340-00-294-7317 is not classified as a special type of cargo when transported by water. 5340-00-294-7317 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
