5340-00-292-0896
Padlock
5340002920896 002920896 ASTM F883 179LH FF-P-101 A-A-1928 175DLH

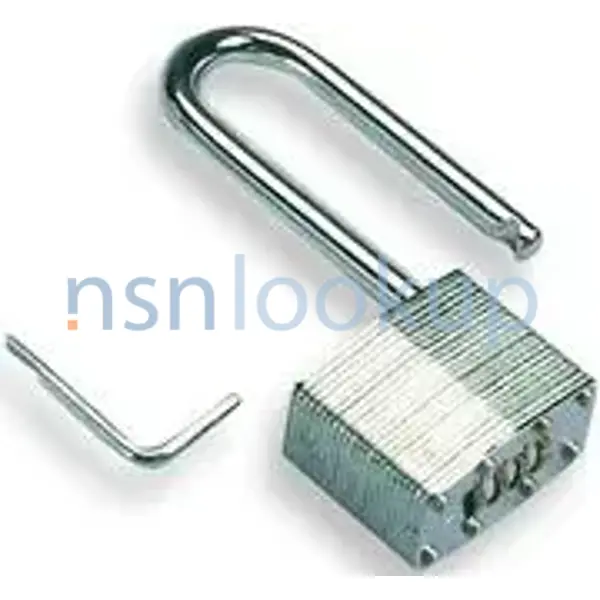

A detachable portable fastening device, having a shackle or bow adapted to be opened for engagement through a staple or the link of a chain. The bow or shackle, when locked, is secured in the case by means of a spring-activated pin(s) entering a notch(es) in the shackle. The lock may be opened by inserting and turning a key or keys, by key insertion only, or by a predetermined setting on the dial of a combination lock. For two or more padlocks which are keyed alike and/or master keyed, see PADLOCK SET. View more Padlock
August 2025
33
Marketplace 5340-00-292-0896
Request a Quotation from participating marketplace vendors
Related Documents 5340-00-292-0896 5+ Documents (More...)
ASTM F883 PADLOCK 2 EA NS Request Quotation Subscribe to View Vendor Details... 5340-00-292-0896 PADLOCK
RQST NS Request Quotation Updated Every 15 Minutes 5340-00-292-0896 BUY NE Updated Every Day 5340-00
Padlock 5340002920896 002920896,ASTM F883 158-3805 5340-01-217-5068 5340-01-567-7035 5340-01-380
Security Ltd (Active) Secondary Buy RNCC 5 RNVC 2 DAC 4 Similar Supply Items to 5340-22-612-9143 5340-00-292-0896
MDL300 1500 FF-P-101 A-A-1928 A detachable portable fastening device, having a shackle or bow adapted
Padlock 5340002920896 002920896,ASTM F883 179LH FF-P-101A-A-1928 175DLH A detachable portable fastening
ASTM F883 PADLOCK 2 EA NS Request Quotation Subscribe to View Vendor Details... 5340-00-292-0896 PADLOCK
Padlock 5340002920896 002920896,ASTM F883 Upgrade for $1 a day Upgrade your Account Upgrade 5340
Restrictions 5340-00-292-0896
5340-00-292-0896 is a Padlock that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5340-00-292-0896
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5340-00-292-0896
- US Army (A192)
- Effective Date:
- 1 Apr 1991
- Supplementary Receivers:
- AJAM
- MOE Rule:
- B031
- Effective Date:
- 1 Apr 1991
- US Coast Guard (C014)
- Effective Date:
- 1 Apr 1991
- US Air Force (FXGS)
- Effective Date:
- 1 Jan 2013
- Supplementary Receivers:
- TT
- NASA (G721)
- Effective Date:
- 1 Apr 1991
- NASA (G751)
- Effective Date:
- 1 Apr 1991
- NASA (G761)
- Effective Date:
- 1 Apr 1991
- NASA (G861)
- Effective Date:
- 1 Apr 1991
- NASA (G881)
- Effective Date:
- 1 Apr 1991
- US Marine Corps (MC14)
- Effective Date:
- 1 Apr 1991
- US Navy (N9QG)
- Effective Date:
- 1 Apr 1991
- Supplementary Collaborators:
- GTJNHD
- MOE Rule:
- V541
- Effective Date:
- 1 Apr 1991
- Spain (YB)
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Israel (YD01)
- Effective Date:
- 1 Aug 2016
- Denmark (ZS)
- Turkey (ZW)
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
- NATO Maintenance and Supply Agency (ZX01)
- Effective Date:
- 1 Feb 2014
- United States of America (ZZ)
Approved Sources 5340-00-292-0896
- Part Number
- Manufacturer
- Status
- ASTM F883
- Manufacturer
- 81346 - American Society For Testing And (Active)
- Incomplete Reference
- Incomplete Reference
- 179LH
- 4QMB1 - Master Lock Company Llc (Active)
- Primary Buy
- Primary Buy
- 179LH
- 38797 - Master Lock Company Llc (Active)
- Secondary Buy
- Secondary Buy
- FF-P-101
- 81348 - Federal Specifications Promulgated (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- A-A-1928
- 58536 - Federal Commercial Item Description (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 175DLH
- 38797 - Master Lock Company Llc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5340-00-292-0896
- Characteristic
- Specifications
- FIIG
- Specifications
- A03100
- Combination Quantity [CKCK]
- 10000
- Construction [CQCF]
- Solid Or Formed
- Departure From Cited Document [ZZZW]
- As Modified By Dial Quantity,Case Overall Height,Shackle Clearance,And Shackle Diameter
- Dial Setting Quantity [CKCY]
- 40 Nominal
- Dial Quantity [AQKC]
- 4
- Environmental Attribute Code [ENAC]
- Plastics Removal In The Marine Environment (Prime) Product
- Material [MATT]
- Steel Overall
- Operating Mechanism Type [BZHX]
- Combination
- Shackle Clearance [CKDJ]
- 2.250 Inches Nominal
- Shackle Diameter [CKDK]
- 0.312 Inches Nominal
- Overall Height [CTHX]
- 4.150 Inches Nominal
- Overall Width [ABHC]
- 1.750 Inches Nominal
- Special Features [FEAT]
- Steel Shackle May Be Thoroughly Hardened Type
DLA Procurement Analysis 5340-00-292-0896
- Last Stock Position:
- 2 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5340-00-292-0896
Army
- Materiel Category and Inventory Manager:
- E
- General Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9Q
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- 02
- Operational Test:
- No Special Procedures
Similar Supply Items to 5340-00-292-0896
Freight Information 5340-00-292-0896
5340-00-292-0896 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 095760. A Sub NMFC of X. It has a NMFC Description of LOCKS/LOCK SETS NOI METAL IN BBL/BX. 5340-00-292-0896 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 50130 which rates the freight between FCL and LCL. 5340-00-292-0896 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5340-00-292-0896 is not classified as a special type of cargo when transported by water. 5340-00-292-0896 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
