5340-00-285-6523

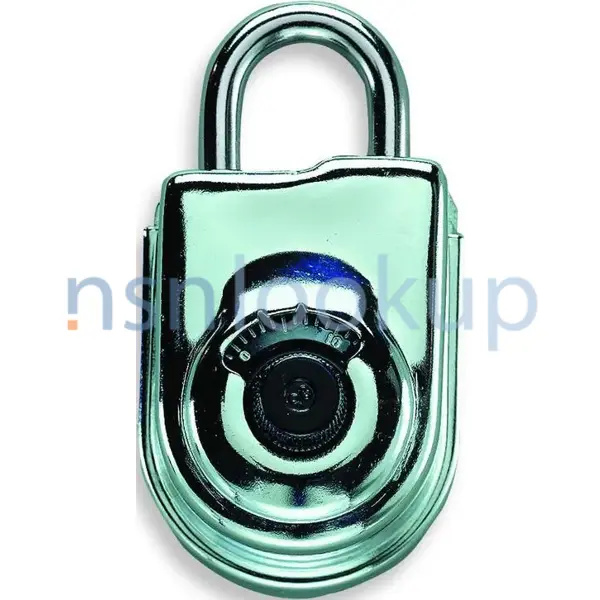

Padlock
5340002856523 002856523 FF-P-110 8077 805847-1 7849937P001 8077 AD
A detachable portable fastening device, having a shackle or bow adapted to be opened for engagement through a staple or the link of a chain. The bow or shackle, when locked, is secured in the case by means of a spring-activated pin(s) entering a notch(es) in the shackle. The lock may be opened by inserting and turning a key or keys, by key insertion only, or by a predetermined setting on the dial of a combination lock. For two or more padlocks which are keyed alike and/or master keyed, see PADLOCK SET. View more Padlock
August 2025
45
Marketplace 5340-00-285-6523
Request a Quotation from participating marketplace vendors
Related Documents 5340-00-285-6523 5+ Documents (More...)
Vendor Details... 8077 PADLOCK 35 EA NS Request Quotation Subscribe to View Vendor Details... 8077 PADLOCK
Quotation Updated Every Day 5340-00-285-6523 RQST NE Updated Every Day 5340-00-285-6523 RQST Updated
PADLOCK 7 EA NS Request Quotation Subscribe to View Vendor Details... 7849937P001 PADLOCK 1 EA NS Request
Quotation Subscribe to View Vendor Details... 8077 PADLOCK 10 EA NS Request Quotation Subscribe to View
PADLOCK 7 EA NS Request Quotation Subscribe to View Vendor Details... 7849937P001 PADLOCK 1 EA NS Request
Quotation Subscribe to View Vendor Details... 8077 PADLOCK 10 EA NS Request Quotation Subscribe to View
PADLOCK 7 EA NS Request Quotation Subscribe to View Vendor Details... 7849937P001 PADLOCK 1 EA NS Request
Quotation Subscribe to View Vendor Details... 8077 PADLOCK 10 EA NS Request Quotation Subscribe to View
Padlock 5340002856523 002856523,FF-P-110,8077 PADLOCK 10 EA NS Request Quotation Subscribe to View
AssyUOMTechnical DocumentQuantative ExpressionDefense Logistics Agency (DS)IAConsolidated With 5340-00-285-6523
Restrictions 5340-00-285-6523
5340-00-285-6523 is a Padlock that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5340-00-285-6523
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5340-00-285-6523
- US Army (A192)
- Effective Date:
- 1 Apr 1991
- Supplementary Receivers:
- AMCLCEBD
- MOE Rule:
- B031
- Effective Date:
- 1 Apr 1991
- US Coast Guard (C014)
- Effective Date:
- 1 Jan 2004
- US Air Force (FXGS)
- Effective Date:
- 1 Jan 2013
- Former MOE Rule:
- FGGS
- NASA (G721)
- Effective Date:
- 1 Apr 1991
- NASA (G751)
- Effective Date:
- 1 Apr 1991
- NASA (G861)
- Effective Date:
- 1 Apr 1991
- US Marine Corps (MC14)
- Effective Date:
- 1 Nov 2007
- US Navy (N9QG)
- Effective Date:
- 1 Apr 1991
- Supplementary Collaborators:
- GTHXHD
- MOE Rule:
- S009
- Effective Date:
- 1 Apr 1991
- Poland (WP01)
- Effective Date:
- 1 Jun 2007
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Israel (YD01)
- Effective Date:
- 1 Aug 2016
- Kuwait (YK01)
- Effective Date:
- 1 Feb 2015
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Belgium (ZB01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Philippines (ZM01)
- Effective Date:
- 1 Feb 2015
- Netherlands (ZN01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Jul 1997
- Greece (ZU01)
- Effective Date:
- 1 Mar 2008
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
- NATO Maintenance and Supply Agency (ZX01)
- Effective Date:
- 1 Sep 2004
Approved Sources 5340-00-285-6523
- Part Number
- Manufacturer
- Status
- 8077
- Manufacturer
- 53085 - Sargent & Greenleaf Inc (Active)
- Primary Buy
- Primary Buy
- 805847-1
- 96214 - Raytheon Company (Active)
- Primary Buy
- Primary Buy
- 7849937P001
- 03538 - Lockheed Martin Corporation (Active)
- Primary Buy
- Primary Buy
- FF-P-110
- 81348 - Federal Specifications Promulgated (Active)
- Incomplete Standard
- Incomplete Standard
- 8077
- AJ771 - Leonardo Spa Aircraft Division (Active)
- Secondary Buy
- Secondary Buy
- 8077 AD
- AM688 - Tecnosystem 3 Snc (Active)
- Secondary Buy
- Secondary Buy
Datasheet 5340-00-285-6523
- Characteristic
- Specifications
- FIIG
- Specifications
- A03100
- Combination Knob Quantity [CKCZ]
- 1
- Combination Quantity [CKCK]
- 30000
- Construction [CQCF]
- Solid
- Dial Quantity [AQKC]
- 1
- Dial Setting Quantity [CKCY]
- 50 Nominal
- Nondefinitive Spec/Std Data [ZZZT]
- De Type And 2 Class
- Operating Mechanism Type [BZHX]
- Combination
- Shackle Diameter [CKDK]
- 0.310 Inches Minimum And 0.360 Inches Maximum
- Overall Height [CTHX]
- 4.000 Inches Nominal
- Overall Width [ABHC]
- 2.750 Inches Maximum
DLA Procurement Analysis 5340-00-285-6523
- Last Stock Position:
- 833 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5340-00-285-6523
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Jan 2023
- Department of the Navy (DN)
- EA
- Subscribe
- EA
- Sep 2016
- Department of the Air Force (DF)
- EA
- Subscribe
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- US Marine Corps (DM)
- M
- 4
- Reversal Of Phrase Code A 5340-01-562-6775
- 4
Army
- Materiel Category and Inventory Manager:
- E
- General Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9Q
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 0
- Non-combat Essential End Item
- Echelon Management:
- 02
- Operational Test:
- No Special Procedures
- Physical Category:
- 1
- Bin
Similar Supply Items to 5340-00-285-6523
Freight Information 5340-00-285-6523
5340-00-285-6523 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 095760. A Sub NMFC of X. It has a NMFC Description of LOCKS/LOCK SETS NOI METAL IN BBL/BX. 5340-00-285-6523 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 50130 which rates the freight between FCL and LCL. 5340-00-285-6523 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5340-00-285-6523 is not classified as a special type of cargo when transported by water. 5340-00-285-6523 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
