5340-00-282-3772
Butt Hinge
5340002823772 002823772 808 FFH116
A hinge usually with rectangularly shaped leaves. The dimension parallel to the hinge pin must be greater than the dimension transverse to the hinge pin. It may have a tension coil spring at its pivot(s) for closing action, and may have a third member between its pivot(s) to permit the door, or the like, to swing in an arc from either side. View more Butt Hinge
November 2023
4
Marketplace 5340-00-282-3772
Request a Quotation from participating marketplace vendors
Related Documents 5340-00-282-3772 5+ Documents (More...)
Updated Every Day 5340-00-282-3772 RQST NE Updated Every Day 5340-00-282-3772 RQST Updated Every Day
/fsg-53/fsc-5340/us 5340-00-282-3772 Butt Hinge 5340002823772 002823772,808,FFH116 808FFH116 A hinge
) https//www.nsnlookup.com /fsg-53/fsc-5340/us 5340-00-068-1088 Butt Hinge 5340000681088000681088,FFH116
Butt Hinge 5340000681088000681088,FFH116 Upgrade for $1 a day Upgrade your Account Upgrade 5340 -00-
FFH116 A hinge usually with rectangularly shaped leaves.
https//www.nsnlookup.com /fsg-53/fsc-5340/us 5340-00-229-4374 Butt Hinge 5340002294374002294374,FFH116
Butt Hinge 5340002823772 002823772,808,FFH116 https//www.nsnlookup.com /fsg-53/fsc-5340/us 5340
-00-229-4370 Butt Hinge 5340002294370002294370,FFH116 https//www.nsnlookup.com /fsg-53/fsc-5340/us 5340
https//www.nsnlookup.com /fsg-53/fsc-5340/us 5340-00-550-9082 Strap Hinge 5340005509082005509082,FFH116
https//www.nsnlookup.com /fsg-53/fsc-5340/us 5340-00-619-0458 Butt Hinge 5340006190458 006190458,FFH116
Restrictions 5340-00-282-3772
5340-00-282-3772 is a Butt Hinge that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
End Users 5340-00-282-3772
- US Air Force (FXGI)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- FXKZ
Approved Sources 5340-00-282-3772
- Part Number
- Manufacturer
- Status
- 808
- Manufacturer
- 6ZGH6 - Stanley Black & Decker, Inc. (Active)
- Incomplete Reference
- Incomplete Reference
- FFH116
- 81348 - Federal Specifications Promulgated (Active)
- Incomplete Standard
- Incomplete Standard
- 808
- 57068 - Stanley Works The (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5340-00-282-3772

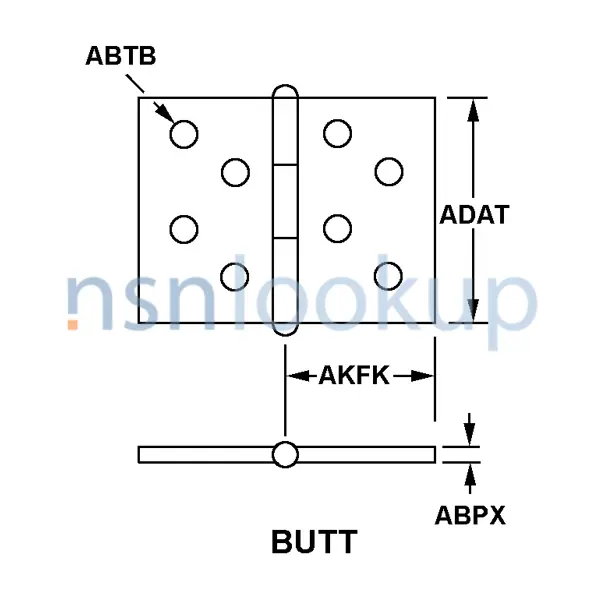

- Characteristic
- Specifications
- FIIG
- Specifications
- A25100
- Body Width [ADAT]
- 3.000 Inches Nominal
- Hinge Mounting Type [AKER]
- Full Surface
- Material Thickness [ABPX]
- 0.092 Inches Nominal
- Mounting Hole Diameter [ABTB]
- 0.193 Inches Nominal
- Mounting Hole Quantity [ABTJ]
- 8
- Nondefinitive Spec/Std Data [ZZZT]
- 2176 Type
- Knuckle Quantity [AKEX]
- 5
- Knuckle Type [AKNB]
- Friction
- Material And Location [ANNQ]
- Steel Pin And Steel, Wrought Body
- Reversible Feature [AJNC]
- Included
- Performance Type [AGLD]
- Not Rated
- Pin Center To Body Edge Distance [AKFK]
- 1.500 Inches Nominal
- Pin Removability [AKES]
- Nonremovable
- Style Designator [STYL]
- Butt
DLA Procurement Analysis 5340-00-282-3772
- Last Stock Position:
- 4 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5340-00-282-3772
Similar Supply Items to 5340-00-282-3772
Freight Information 5340-00-282-3772
5340-00-282-3772 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 095300. A Sub NMFC of Z. It has a NMFC Description of HINGES/BUTTS NOI I/S. 5340-00-282-3772 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 49860 which rates the freight between FCL and LCL. 5340-00-282-3772 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5340-00-282-3772 is not classified as a special type of cargo when transported by water. 5340-00-282-3772 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5340-00-282-3772
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- Any Suitable Container
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
