5340-00-243-6705
Turnbuckle
5340002436705 002436705 MIL-S-21433 M21433 TYIII CLB FM1 21.094 MIL-S-21433A MIL-S-21433A TY III CL B FM 1
A metal loop, sleeve, or solid body with end pulls, having both ends threaded or one end threaded and the other end designed to accommodate a swivel. Items with both ends threaded shall have right hand screw threads on one end and left hand screw threads on the other. It may include lock nuts, check nuts, jam nuts, and/or terminal attachment(s) such as hooks, rings, and the like. It is designed to regulate the distance (take-up) between two points by turning. See also PELICAN HOOK AND TURNBUCKLE ASSEMBLY; and TIE ROD, TENSIONING, THREADED END. View more Turnbuckle
November 2023
14
Marketplace 5340-00-243-6705
Request a Quotation from participating marketplace vendors
Related Documents 5340-00-243-6705 5+ Documents (More...)
MIL-S-21433A TYIII CL B FM 1 TURNBUCKLE 101 EA NS Request Quotation Updated Every Day 5340-00-243-6705
5340-00-243-6705 5+ Documents ( More... ) https//www.nsnlookup.com /fsg-53/fsc-5340/us 5340-00-243-6705
MIL-S-21433 TURNBUCKLE RQST NS Request Quotation FedMall Updated Every 15 Minutes 5340-00-205-6013 BUY
MIL-S-21433 TURNBUCKLE RQST NS Request Quotation FedMall Updated Every 15 Minutes 5340-00-205-6013 BUY
FedMall Updated Every 15 Minutes 5340-00-205-6013 BUY MIL-S-21433 TURNBUCKLE RQST NS Request Quotation
Turnbuckle 5340002436705 002436705 M21433 TYIII CLB FM1 21.094 MIL-S-21433AMIL-S-21433A TY III
MIL-S-21433 TURNBUCKLE RQST NS Request Quotation Updated Every Day 5340-00-234-6961 RQST NE Updated
Every https//www.nsnlookup.com /fsg-53/fsc-5340/us 5340-00-243-6705 Turnbuckle 5340002436705 002436705
M21433 TYI CLJ 0.625 IN 8.625 MIL-S-21433 TYPE I, CLASS J A funnel-shaped receptacle or basket,
MIL-S-21433A3TY1,C SOCKET,WIRE ROPE RQST NS Request Quotation MIL-S-21433 SOCKET,WIRE ROPE RQST NS Request
Restrictions 5340-00-243-6705
5340-00-243-6705 is a Turnbuckle that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5340-00-243-6705
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5340-00-243-6705
- US Coast Guard (C918)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- C004
- US Navy (N9BZ)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- NIZD
- Supplementary Collaborators:
- GTHD
- Spain (YB01)
- Effective Date:
- 1 Oct 2003
- Philippines (ZM01)
- Effective Date:
- 1 Feb 2015
- Italy (ZR01)
- Effective Date:
- 1 Jul 1997
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5340-00-243-6705
- Part Number
- Manufacturer
- Status
- M21433 TYIII CLB FM1 21.094
- Manufacturer
- 81349 - Military Specifications (Active)
- Definitive Standard
- Definitive Standard
- MIL-S-21433
- 81349 - Military Specifications (Active)
- Incomplete Standard
- Incomplete Standard
- MIL-S-21433A
- 81349 - Military Specifications (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- MIL-S-21433A TY III CL B FM 1
- 81349 - Military Specifications (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5340-00-243-6705
- Characteristic
- Specifications
- FIIG
- Specifications
- A264A0

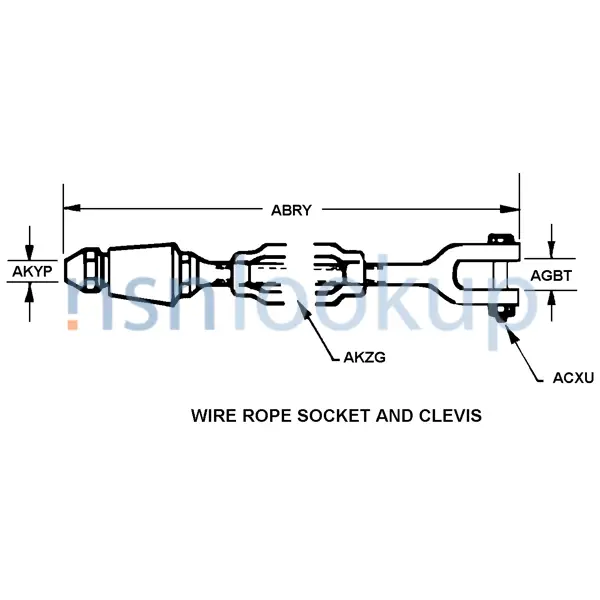

- Accommodated Wire Rope Diameter [AKYP]
- 0.562 Inches Nominal
- Body Length [ADAQ]
- 7.625 Inches Nominal
- Body Style [AAQL]
- Round Closed Body
- End Style [ABQK]
- Were Rope Socket And Clevis
- Fork Width [AGBT]
- 1.062 Inches Nominal
- Nominal Thread Size [CQJX]
- 0.750 Inches Body
- Nondefinitive Spec/Std Data [ZZZT]
- 3 Type And B Class And 1 Form
- Material [MATT]
- Copper Alloy Overall
- Length [ABRY]
- 21.094 Inches Nominal
- Pinhole Diameter [ACXU]
- 0.385 Inches Nominal
- Wire Rope Retention Method [AKYB]
- Solid Wedge
- Take-Up Distance [AKZG]
- 6.000 Inches Nominal
- Thread Class [AAJD]
- 2B Body
- Thread Direction [AAJF]
- Right-Hand Body
- Thread Length [AASA]
- 7.625 Inches Nominal Body
- Thread Length [AASA]
- 7.625 Inches Nominal Overall
- Thread Quantity Per Inch [CMLP]
- 8 Body
- Thread Series Designator [THSD]
- Acme Body
