5340-00-223-4161
Butt Hinge
5340002234161 002234161 A-A-50432 AA50432 TYVI, CLIII STA 3X3 1 MILH1237
A hinge usually with rectangularly shaped leaves. The dimension parallel to the hinge pin must be greater than the dimension transverse to the hinge pin. It may have a tension coil spring at its pivot(s) for closing action, and may have a third member between its pivot(s) to permit the door, or the like, to swing in an arc from either side. View more Butt Hinge
November 2023
4
Marketplace 5340-00-223-4161
Request a Quotation from participating marketplace vendors
Related Documents 5340-00-223-4161 5+ Documents (More...)
Updated Every 15 Minutes 5340-00-223-4161 BUY NE FedMall Updated Every Day 5340-00-223-4161 RQST NE
Updated Every Day 5340-00-223-4161 RQST Updated Every Day 5340-00-223-4161 RQST NE Related Documents
Upgrade 5340-00-223-4161Butt Hinge5340002234161 002234161 A-A-50432 AA50432 TYVI, CLIII STA 3X3 1 MILH1237
Upgrade 5340-00-223-4161Butt Hinge5340002234161 002234161 A-A-50432 AA50432 TYVI, CLIII STA 3X3 1 MILH1237
Upgrade 5340-00-223-4161Butt Hinge5340002234161 002234161 A-A-50432 AA50432 TYVI, CLIII STA 3X3 1 MILH1237
Upgrade 5340-00-223-4161Butt Hinge5340002234161 002234161 A-A-50432 AA50432 TYVI, CLIII STA 3X3 1 MILH1237
Upgrade 5340-00-223-4161Butt Hinge5340002234161 002234161 A-A-50432 AA50432 TYVI, CLIII STA 3X3 1 MILH1237
Upgrade 5340-00-223-4161Butt Hinge5340002234161 002234161 A-A-50432 AA50432 TYVI, CLIII STA 3X3 1 MILH1237
Upgrade 5340-00-223-4161Butt Hinge5340002234161 002234161 A-A-50432 AA50432 TYVI, CLIII STA 3X3 1 MILH1237
Upgrade 5340-00-223-4161Butt Hinge5340002234161 002234161 A-A-50432 AA50432 TYVI, CLIII STA 3X3 1 MILH1237
Restrictions 5340-00-223-4161
5340-00-223-4161 is a Butt Hinge that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
End Users 5340-00-223-4161
- US Air Force (FXGI)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- FXKZ
- US Navy (N9BZ)
- Effective Date:
- 1 Sep 2005
Approved Sources 5340-00-223-4161
- Part Number
- Manufacturer
- Status
- AA50432 TYVI, CLIII STA 3X3 1
- Manufacturer
- 58536 - Federal Commercial Item Description (Active)
- Definitive Standard
- Definitive Standard
- A-A-50432
- 58536 - Federal Commercial Item Description (Active)
- Incomplete Standard
- Incomplete Standard
- MILH1237
- 81349 - Military Specifications (Active)
- Canceled/Obsolete
- Canceled/Obsolete

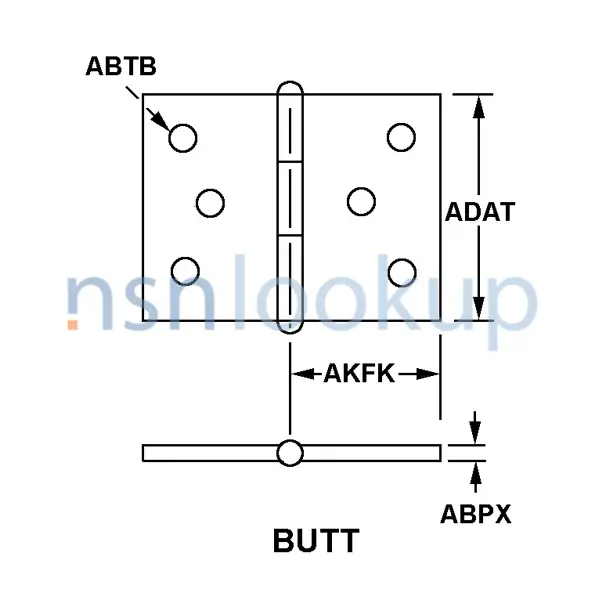

Datasheet 5340-00-223-4161
- Characteristic
- Specifications
- FIIG
- Specifications
- A25100
- Body Width [ADAT]
- 3.000 Inches Nominal
- Hinge Mounting Type [AKER]
- Full Surface
- Material Thickness [ABPX]
- 0.130 Inches Nominal
- Mounting Hole Diameter [ABTB]
- 0.196 Inches Nominal
- Mounting Hole Quantity [ABTJ]
- 6
- Nondefinitive Spec/Std Data [ZZZT]
- 6 Type And 3 Class And A Group
- Knuckle Type [AKNB]
- Friction
- Knuckle Quantity [AKEX]
- 5
- Material And Location [ANNQ]
- Brass, Astm B121-66 Pin Err-100 Err-100
- Material And Location [ANNQ]
- Steel, Astm A264, Grade 1 Body Err-100 Err-100
- Reversible Feature [AJNC]
- Not Included
- Performance Type [AGLD]
- Heavy Duty
- Pin Center To Body Edge Distance [AKFK]
- 1.000 Inches Nominal
- Pin Removability [AKES]
- Nonremovable
- Style Designator [STYL]
- Butt
- Surface Treatment And Location [ANNR]
- Zinc W/Phosphate Body
DLA Procurement Analysis 5340-00-223-4161
Management Data 5340-00-223-4161
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- SX
- SICA RESIDUAL MMAC-OC-ALC
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 5340-00-223-4161
Freight Information 5340-00-223-4161
5340-00-223-4161 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 095300. A Sub NMFC of Z. It has a NMFC Description of HINGES/BUTTS NOI I/S. 5340-00-223-4161 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 49860 which rates the freight between FCL and LCL. 5340-00-223-4161 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5340-00-223-4161 is not classified as a special type of cargo when transported by water. 5340-00-223-4161 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5340-00-223-4161
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
