5340-00-209-9307
Bumper
5340002099307 002099307 X2790-2 4731 R2084
An item so designed that when attached to an object, protects that objec from damage by reducing the force of impact with another object. For external vehicular bumpers see BUMPER, VEHICULAR. Excludes GROMMET (as modified); BUSHING, NONMETALLIC; PAD, CUSHIONING and WASHER (as modified). View more Bumper
May 2023
23
Marketplace 5340-00-209-9307
Request a Quotation from participating marketplace vendors
Related Documents 5340-00-209-9307 5+ Documents (More...)
United States (US) 4. 5340-00-209-9307 Marketplace Restrictions Approved Sources Datasheet Management
Updated Every Day 5340-00-209-9307 RQST NE Updated Every Day 5340-00-209-9307 RQST Updated Every Day
ADPEC : 5340-21-818-3885 is a Bumper NATO Stock https//www.nsnlookup.com /fsg-53/fsc-5340/us 5340-00-209-9307
Bumper 5340002099307 002099307,X2790-2,4731 www.nsnlookup.com /fsg-53/fsc-5340/us 5340-00-209-9307
) https//www.nsnlookup.com /fsg-75/fsc-7520/ca 7520-21-911-3405 Filing Box 7520219113405219113405,R2084
Bumper 5340002099307 002099307,X2790-2,4731 Every Day 5340-00-209-9307 RQST Updated Every Day https
NS Request Quotation R-2084 INACTIVE RQST NS Request Quotation Subscribe to View Vendor Details... 4731
INACTIVE 2 EA NS Request Quotation Subscribe to View Vendor Details... 4731 INACTIVE 96 EA NS Request
Bumper 5340002099307 002099307,X2790-2,4731 - Upgrade for $1 a day Upgrade your Account Upgrade
5340-00-209-9307Bumper5340002099307 002099307 X2790 -2,4731 X2790-24731R2084 An item so designed that
Restrictions 5340-00-209-9307
5340-00-209-9307 is a Bumper that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
End Users 5340-00-209-9307
- US Navy (N9BZ)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- KE
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- France (ZF01)
- Effective Date:
- 1 Jun 2015
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 5340-00-209-9307
- Part Number
- Manufacturer
- Status
- X2790-2
- Manufacturer
- 28569 - Hickok Waekon Llc (Active)
- Primary Buy
- Primary Buy
- 4731
- 14370 - Continental Rubber Works (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- R2084
- 14370 - Continental Rubber Works (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete

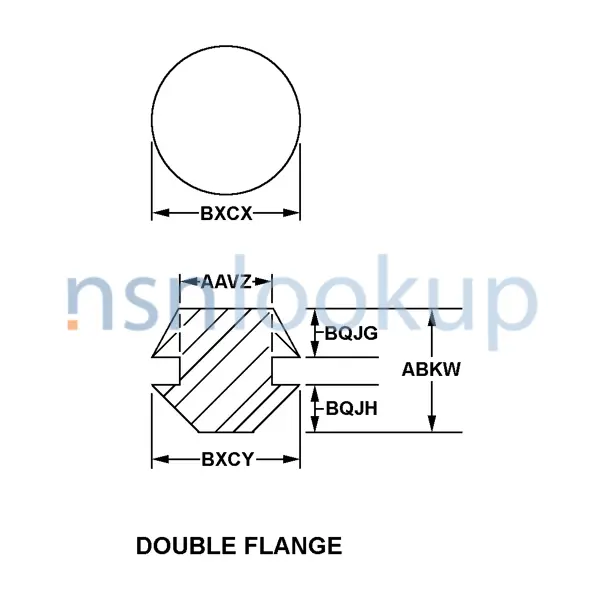

Datasheet 5340-00-209-9307
- Characteristic
- Specifications
- FIIG
- Specifications
- A535L0
- Bottom Flange Diameter [BXCY]
- 0.438 Inches Nominal
- Bottom Flange Width [BQJH]
- 0.250 Inches Nominal
- Color [HUES]
- Black
- Groove Diameter [AAVZ]
- 0.250 Inches Nominal
- Material [MATT]
- Rubber Synthetic
- Outside/Top Flange Diameter [BXCX]
- 0.438 Inches Nominal
- Overall Height [ABKW]
- 0.500 Inches Nominal
- Style Designator [STYL]
- Err-090
- Top Flange Width [BQJG]
- 0.119 Inches Nominal
DLA Procurement Analysis 5340-00-209-9307
Management Data 5340-00-209-9307
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5340-00-209-9307
Freight Information 5340-00-209-9307
5340-00-209-9307 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 156660. A Sub NMFC of X. It has a NMFC Description of PLASTIC/RUBR BUMPERS/SPRINGS NOI. 5340-00-209-9307 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 84190 which rates the freight between FCL and LCL. 5340-00-209-9307 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 772 for ocean manifesting and military sealift. 5340-00-209-9307 is not classified as a special type of cargo when transported by water. 5340-00-209-9307 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5340-00-209-9307
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- --
- --
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
- No Requirement
Contracting Technical Data File (CTDF) 5340-00-209-9307 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
