5340-00-178-1390
Turnbuckle
5340001781390 001781390 10867476 IS5509
A metal loop, sleeve, or solid body with end pulls, having both ends threaded or one end threaded and the other end designed to accommodate a swivel. Items with both ends threaded shall have right hand screw threads on one end and left hand screw threads on the other. It may include lock nuts, check nuts, jam nuts, and/or terminal attachment(s) such as hooks, rings, and the like. It is designed to regulate the distance (take-up) between two points by turning. See also PELICAN HOOK AND TURNBUCKLE ASSEMBLY; and TIE ROD, TENSIONING, THREADED END. View more Turnbuckle
November 2023
13
Marketplace 5340-00-178-1390
Request a Quotation from participating marketplace vendors
Related Documents 5340-00-178-1390 1+ Documents (More...)
IS5509 TURNBUCKLE RQST NS Request Quotation 10867476 TURNBUCKLE RQST NS Request Quotation Subscribe to
View Vendor Details... 10867476 TURNBUCKLE 146 EA NS Request Quotation Updated Every Day 5340-00-178
Restrictions 5340-00-178-1390
5340-00-178-1390 is a Turnbuckle that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5340-00-178-1390
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5340-00-178-1390
- US Army (A919)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- A187
- Supplementary Receivers:
- AZ
- US Marine Corps (MC47)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- MC10
- US Navy (N9BZ)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GG
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Aug 1995
- Turkey (ZW01)
- Effective Date:
- 1 Sep 2009
Approved Sources 5340-00-178-1390
- Part Number
- Manufacturer
- Status
- 10867476
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
- IS5509
- 79931 - Esmet Inc (Active)
- Secondary Buy
- Secondary Buy
Datasheet 5340-00-178-1390
- Characteristic
- Specifications
- FIIG
- Specifications
- A264A0
- Accommodated Wire Rope Diameter [AKYP]
- 0.930 Inches Nominal
- Body Length [ADAQ]
- 4.250 Inches Nominal
- Body Style [AAQL]
- Hex Closed Body
- Furnished Items And Quantity [TMQY]
- 4 Bolt

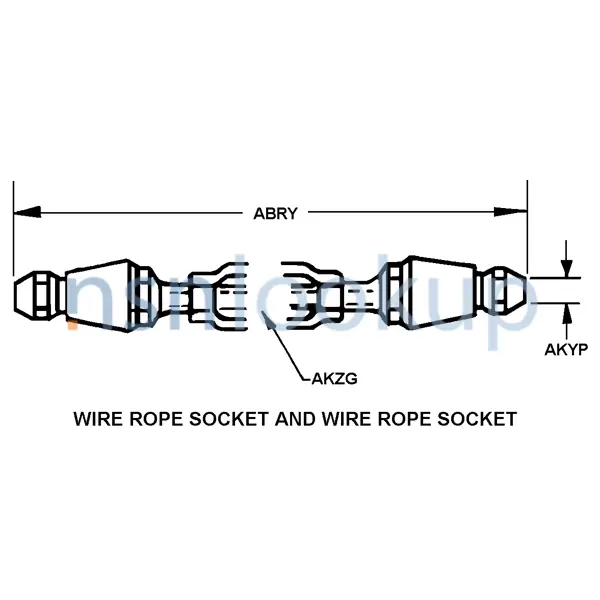

- End Style [ABQK]
- Wire Rope Socket And Wire Rope Socket
- Nominal Thread Size [CQJX]
- 0.250 Inches Body
- Material [MATT]
- Steel Overall
- Length [ABRY]
- 7.250 Inches Minimum And 10.125 Inches Maximum
- Locking Device Type [AZAF]
- Nut
- Wire Rope Retention Method [AKYB]
- Solid Wedge
- Surface Treatment [SFTT]
- Cadmium Overall
- Take-Up Distance [AKZG]
- 2.875 Inches Nominal
- Thread Class [AAJD]
- 2B Body
- Thread Series Designator [THSD]
- Unc Body
