5340-00-170-0347
Loop Clamp
5340001700347 001700347 1808686-1
A clamp designed to surround other item(s) such as cable(s), conduit(s), pipe(s), hose(s), or tube(s), and to fasten together or to another object or structure. Includes straight flexible items. For items specifically designed to clamp a hose to a connection to prevent leakage, see CLAMP, HOSE. See also HANGER, PIPE and CLIP, SPRING TENSION. For retaining straps with a bridge, see STRAP, RETAINING. Excludes CLAMP, ELECTRICAL; BAND, RETAINING; CLAMP (1), C; BRACKET PIPE. View more Loop Clamp
January 2023
4
Marketplace 5340-00-170-0347
Request a Quotation from participating marketplace vendors
Related Documents 5340-00-170-0347 2+ Documents (More...)
5340-00-170-0347 2+ Documents ( More... ) https//www.nsnlookup.com /fsg-53/fsc-5340/us 5340-00-170-0347
Loop Clamp 5340001700347 001700347,1808686-1 1808686-1 A clamp designed to surround other item(s) such
Loop Clamp 5340001700347 001700347,1808686-1 Upgrade for $1 a day Upgrade your Account Upgrade
5340-00-170-0347Loop Clamp5340001700347 001700347 1808686 www.nsnlookup.com /fsg-53/fsc-5340/us 5340-
Restrictions 5340-00-170-0347
5340-00-170-0347 is a Loop Clamp that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
End Users 5340-00-170-0347
- Brazil (YA01)
- Effective Date:
- 1 Aug 2000
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5340-00-170-0347
- Part Number
- Manufacturer
- Status
- 1808686-1
- Manufacturer
- 55972 - Honeywell Intl Inc (Active)
- Primary Buy
- Primary Buy
- 1808686-1
- 19315 - Honeywell Intl Inc Defense Avionics (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5340-00-170-0347
- Characteristic
- Specifications
- FIIG
- Specifications
- A12700
- Distance From Loop Center To Tongue End [AZDC]
- 0.203 Inches Nominal
- Distance From Outer Edge Of Lug To Hole Center [BZTP]
- 0.094 Inches Nominal
- Center To Center Distance Between Loop And Lug Hole [AZDE]
- 0.226 Inches Nominal
- Diameter [ABMZ]
- 0.092 Inches Minimum And 0.097 Inches Maximum
- Material Document And Classification [MDCL]
- Mil-S-5059 Mil Spec Single Material Response Band
- Material Thickness [ABPX]
- 0.015 Inches Nominal
- Material [MATT]
- Steel Comp 302 Band
- Loop Inside Diameter [BZTN]
- 0.172 Inches Nominal
- Overall Width [ABMK]
- 0.219 Inches Nominal

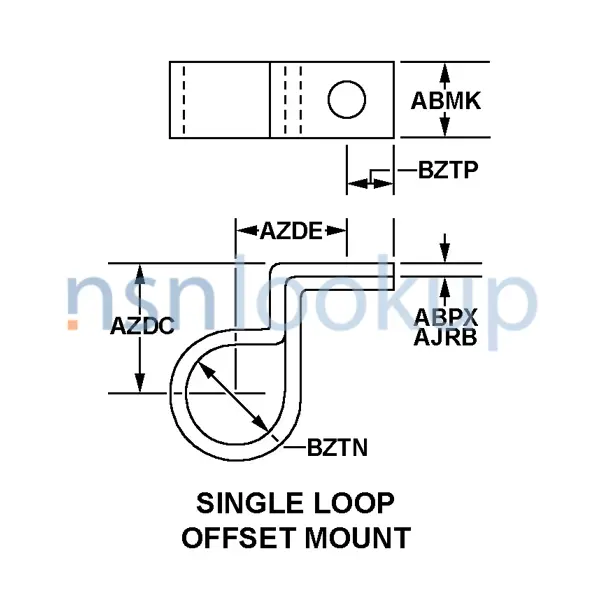

- Style Designator [STYL]
- Single Loop Offset Mount
- Tongue Hole Type [AAAL]
- Round, Unthreaded
Similar Supply Items to 5340-00-170-0347
Freight Information 5340-00-170-0347
5340-00-170-0347 has freight characteristics managed by the Southwestern Power Administration.. 5340-00-170-0347 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
Packaging Data 5340-00-170-0347
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- --
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- Bags made of material conforming to MIL-P-130, MIL-DTL-17667, MIL-PRF-121, or any material authorized by MIL-DTL-117. Closure may be by staples, tape, adhesive or heat seal
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
