5340-00-160-2407
Dust And Moisture Seal Boot
5340001602407 001602407 044254
A flexible, nonmetallic item designed to prevent entry of dust, moisture and other contaminants into critical areas around shafts, levers, electrical wires and hoses. Sealing may be either static or dynamic. The item may include mounting hardware (support plates, clamps and the like). Excludes BELLOWS, PROTECTION; GROMMET, NONMETALLIC; and CABLE NIPPLE, ELECTRICAL. See also CAP, ELECTRICAL; CAP, PROTECTIVE, DUST AND MOISTURE SEAL; and SHIELD, ELECTRICAL CONNECTOR. View more Dust And Moisture Seal Boot
January 2023
7
Marketplace 5340-00-160-2407
Request a Quotation from participating marketplace vendors
Related Documents 5340-00-160-2407 2+ Documents (More...)
RQST NE Updated Every Day 5340-00-160-2407 RQST Updated Every Day 5340-00-160-2407 RQST NE Related Documents
5340-00-160-2407 2+ Documents ( More... ) https//www.nsnlookup.com /fsg-53/fsc-5340/us 5340-00-160-2407
www.nsnlookup.com /fsg-53/fsc-5315/us 5315-01-312-7619 Quick Release Pin 5315013127619013127619 08-044254
Dust And Moisture Seal Boot 5340001602407 Every Day 5340-00-160-2407 RQST NE Restrictions https
Restrictions 5340-00-160-2407
5340-00-160-2407 is a Dust And Moisture Seal Boot that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Approved Sources 5340-00-160-2407
- Part Number
- Manufacturer
- Status
- 044254
- Manufacturer
- 89305 - Simmonds Precision Products Inc (Active)
- Primary Buy
- Primary Buy
Datasheet 5340-00-160-2407
- Characteristic
- Specifications
- FIIG
- Specifications
- A02000

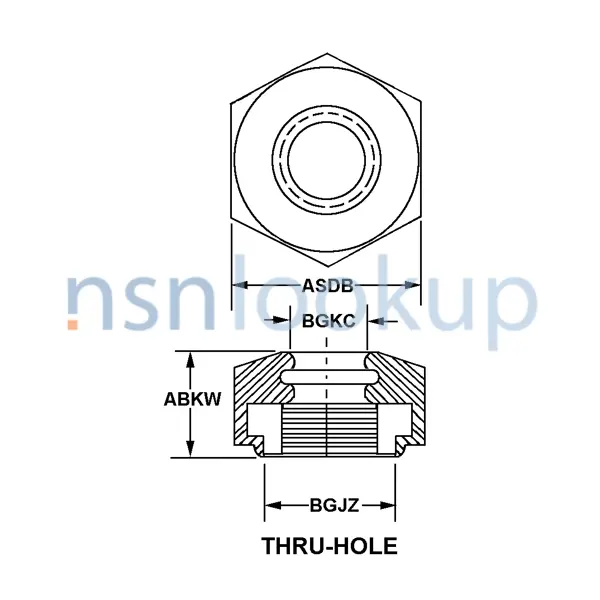

- Style Designator [STYL]
- Thru-Hole
- Overall Height [ABKW]
- 0.220 Inches Nominal
- Width Across Flats [ASDB]
- 0.380 Inches Nominal
- Base Inside Diameter [BGJZ]
- 0.250 Inches Nominal
- Opening Inside Diameter [BGKC]
- 0.120 Inches Nominal
- Material [MATT]
- Rubber Silicone Body
- Material Document And Classification [MDCL]
- Mil-R-5847,Cl 3 Mil Spec Single Material Response Body
- Surface Treatment [SFTT]
- Nickel Body
- Mounting Method [AXGY]
- Thread
- Mounting Device Quantity [ACUP]
- 1
- Base Thread Location [CSFT]
- Internal
- Thread Series [BZRR]
- Unef
- Nominal Thread Size [CQJX]
- 0.250 Inches
- Thread Quantity Per Inch [CMLP]
- 32
- Thread Class [AAJD]
- 2B
- Thread Length [AASA]
- 0.220 Inches Nominal
Management Data 5340-00-160-2407
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Mar 2021
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
- Feb 2007
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
- Oct 2006
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Department of the Army (DA)
- I
- D
- Change To 5340
- D
- Department of the Army (DA)
- I
- V
- Discontinued Without Replacement
- V
- Department of the Army (DA)
- A
- V
- Discontinued Without Replacement
- V
- Department of the Navy (DN)
- N
- V
- Discontinued Without Replacement
- V
Army
- Materiel Category and Inventory Manager:
- H
- Aircraft, Air Materiel
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- BE
- Rotary Wing Aircraft
UH-60
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9W
Similar Supply Items to 5340-00-160-2407
Freight Information 5340-00-160-2407
5340-00-160-2407 has freight characteristics.. 5340-00-160-2407 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
Packaging Data 5340-00-160-2407
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- Packaging Data does not meet current MIL-STD-2073-1E
- Storage Environment
- Unheated General Purpose
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- 0.3" H x 0.3" W x 0.2" L
- --
- --
- 0.25 lb or less, one dimension 2" or less, other dimensions less than 24"
- 85 to 110G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- 3.0" H x 3.0" W x 3.0" L
- --
- --
- --
- Any Suitable Process
- 3.0" H x 3.0" W x 3.0" L
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- --
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- 92
- ASTM-D5118, Type CF, Class Weather-Resistant, Single Wall, Corrugated Fiberboard Box
