5340-00-148-0886
Access Cover
5340001480886 001480886 5152716 PC5152716
A rigid or flexible item of various shapes attached to a structure for the purpose of providing access for inspection, service, replacement of components and/or adjustments or mounting operations. It is designed to be attached by means of bolt holes, slots, mounting ears, tabs, and the like. To permit access, the mounted cover requires partial or complete removal. It may include an observation window. For items permanently attached by hinges and the like, see DOOR, ACCESS (as modified). Excludes all covers not specifically designed to provide access for the purposes listed above. View more Access Cover
March 2024
36
Marketplace 5340-00-148-0886
Request a Quotation from participating marketplace vendors
Related Documents 5340-00-148-0886 5+ Documents (More...)
Photo 1/4 NSN 5340-00-148-0886 (Identification) 2/4 NSN 5340-00-148-0886 (Identification) 3/4 NSN
COVER,ACCESS 2 EA NS Request Quotation Updated Every Day 5152716 RQST NE Updated Every Day 5340-00-148
Restrictions 5340-00-148-0886
5340-00-148-0886 is a Access Cover that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5340-00-148-0886
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5340-00-148-0886
- US Army (A919)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- A187
- Supplementary Receivers:
- AZ
- US Air Force (FXGI)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- FXKZ
- US Marine Corps (MC47)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- MC10
- US Navy (N9BZ)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- HD
- Lithuania (WI01)
- Effective Date:
- 1 Mar 2001
- Brazil (YA01)
- Effective Date:
- 1 May 2010
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Belgium (ZB01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Aug 1995
- Netherlands (ZN01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Feb 2013
- Denmark (ZS01)
- Effective Date:
- 1 Apr 1991
- Norway (ZT01)
- Effective Date:
- 1 Jun 2004
- Greece (ZU01)
- Effective Date:
- 1 Sep 1994
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
Approved Sources 5340-00-148-0886
- Part Number
- Manufacturer
- Status
- 5152716
- Manufacturer
- 72582 - Rolls-Royce Solutions America Inc (Active)
- Primary Buy
- Primary Buy
- 5152716
- 24617 - General Motors Corp (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- PC5152716
- C7432 - Power Components (Deutschland) Gmbh (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 5152716
- T0720 - Fnss Savunma Sistemleri Anonim (Active)
- NATO Reproduction
- NATO Reproduction
Datasheet 5340-00-148-0886
- Characteristic
- Specifications
- FIIG
- Specifications
- A531C0

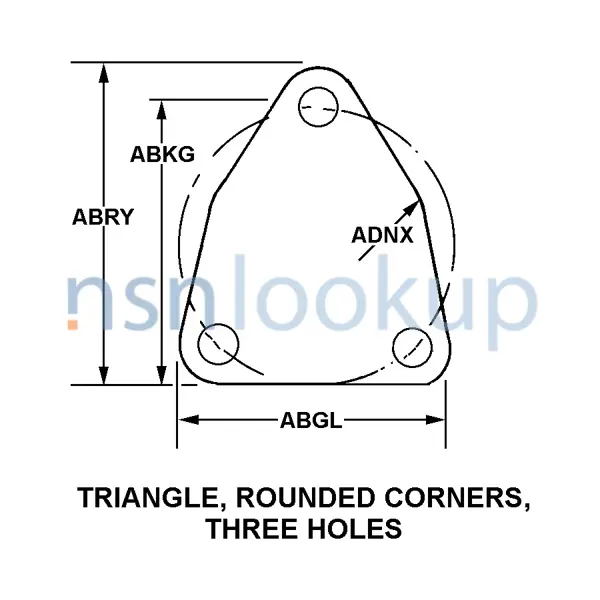

- Peripheral Shape Style [ABMW]
- Triangle, Rounded Corners, Three Holes
- Width [ABGL]
- 3.250 Inches Nominal
- Bolt Circle Diameter [ABKG]
- 1.438 Inches Nominal
- Length [ABRY]
- 3.000 Inches Nominal
- Body Radius [ADNX]
- 2.000 Inches Nominal
- Corner Radius [ADNU]
- 0.313 Inches Nominal
- Cross-Sectional Shape Style [AAGR]
- Flat
- Body Thickness [ADPR]
- 0.125 Inches Nominal
- Material [MATT]
- Steel
- Securing Device Type [ADQB]
- Threaded Fastener
- Mounting Opening Shape Style [ADQK]
- Unthreaded Hole
- Hole Diameter [AAUB]
- 0.344 Inches Nominal
- End Item Identification [AGAV]
- Detroit Diesel Engine,General Motors Corp,Series 71
Weapon Systems (WSDC) 5340-00-148-0886
DLA Procurement Analysis 5340-00-148-0886
- Last Stock Position:
- 990 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5340-00-148-0886
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Mar 2023
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- Oct 2022
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Oct 2020
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Oct 2019
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Department of the Navy (DN)
- N
- X
- Formerly 2815
- X
- Defense Logistics Agency (DS)
- I
- X
- Formerly 2815
- X
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Operational Test:
- No Special Procedures
Similar Supply Items to 5340-00-148-0886
Freight Information 5340-00-148-0886
5340-00-148-0886 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 095190. A Sub NMFC of Z. It has a NMFC Description of HARDWARE, NOI. 5340-00-148-0886 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 49790 which rates the freight between FCL and LCL. 5340-00-148-0886 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5340-00-148-0886 is not classified as a special type of cargo when transported by water. 5340-00-148-0886 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5340-00-148-0886
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- Any Suitable Container
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Procurement History 5340-00-148-0886 12 Records
- Contract
- Date
- CAGE
- Quantity
- Net Price
- Std Price
- CAGE
- SPE5E718V3296
- 16 Apr 2018
- Subscribe
- 454
- Subscribe
- Subscribe
- Subscribe
- SPE5E717V6014
- 30 Sep 2017
- Subscribe
- 372
- Subscribe
- Subscribe
- Subscribe
- SPE5E717V3557
- 24 Apr 2017
- Subscribe
- 96
- Subscribe
- Subscribe
- Subscribe
- SPE5E717P0784
- 17 Nov 2016
- Subscribe
- 582
- Subscribe
- Subscribe
- Subscribe
- SPE5E716V1966
- 18 Feb 2016
- Subscribe
- 7
- Subscribe
- Subscribe
- Subscribe
- SPM7LX08D902843FS
- 18 Dec 2014
- Subscribe
- 1
- Subscribe
- Subscribe
- Subscribe
- SPM7LX08D902843CU
- 03 Dec 2014
- Subscribe
- 670
- Subscribe
- Subscribe
- Subscribe
- SPM7LX08D902843BX
- 25 Nov 2014
- Subscribe
- 1
- Subscribe
- Subscribe
- Subscribe
- SPM7LX08D902843BQ
- 24 Nov 2014
- Subscribe
- 1
- Subscribe
- Subscribe
- Subscribe
- SPM7LX08D902842RN
- 21 Sep 2014
- Subscribe
- 4
- Subscribe
- Subscribe
- Subscribe
- SPM7LX08D902840LG
- 05 Dec 2013
- Subscribe
- 1
- Subscribe
- Subscribe
- Subscribe
- SPM7LX08D902838EB
- 06 Mar 2013
- Subscribe
- 634
- Subscribe
- Subscribe
- Subscribe
Contracting Technical Data File (CTDF) 5340-00-148-0886 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
