5340-00-135-8801
Hand Crank
5340001358801 001358801 C5-15-4395
An item consisting of a radial arm having a handle parallel to its pivoted axis for transmitting motion to a shaft or object. It may have an integral extension. For items without an integral handle, see, ARM (1), HAND CRANK. Excludes HANDWHEEL; and HANDLE, WINDOW REGULATOR. View more Hand Crank
June 2023
7
Marketplace 5340-00-135-8801
Request a Quotation from participating marketplace vendors
Related Documents 5340-00-135-8801 1+ Documents (More...)
RQST NE Updated Every Day 5340-00-135-8801 RQST Updated Every Day 5340-00-135-8801 RQST NE Related Documents
5340-00-135-8801 1+ Documents ( More... ) https//www.nsnlookup.com /fsg-53/fsc-5340/us 5340-00-135-8801
Restrictions 5340-00-135-8801
5340-00-135-8801 is a Hand Crank that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5340-00-135-8801
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5340-00-135-8801
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5340-00-135-8801
- Part Number
- Manufacturer
- Status
- C5-15-4395
- Manufacturer
- 81361 - Edgewood Chemical Biological Center (Active)
- Primary Buy
- Primary Buy
Datasheet 5340-00-135-8801
- Characteristic
- Specifications
- FIIG
- Specifications
- A25300

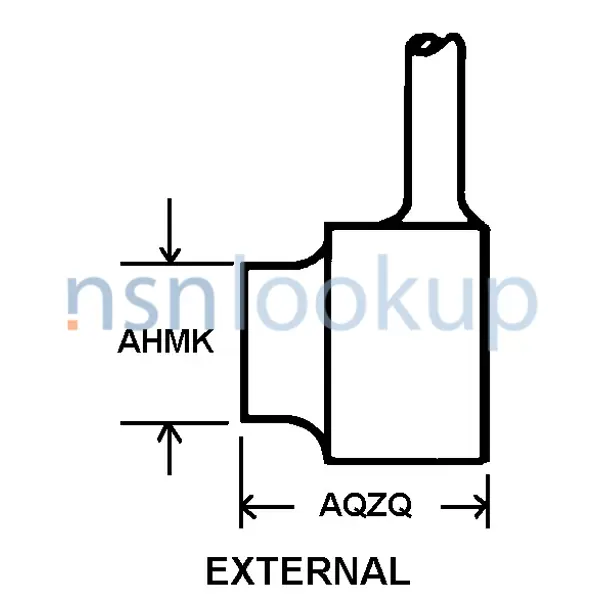

- Drive End Outside Diameter [AHMK]
- 0.420 Inches Nominal
- Drive End Style [AJFW]
- External
- Drive Facility Style [AWJY]
- Round
- Arm Style [AWJW]
- Straight
- Crank Overall Length [AWKA]
- 1.100 Inches Nominal
- Crank Throw Length [AWKG]
- 0.500 Inches Nominal
- Handle Length [AASN]
- 0.570 Inches Nominal
- Handle Rotating Feature [AWKD]
- Not Included
- Handle Style [ALMP]
- Round
- Mounting Facility [AZGM]
- Pin
- Inside Diameter [AARX]
- 0.126 Inches Nominal
- Material And Location [ANNQ]
- Aluminum Alloy, Qq-A-225/6, Alloy 2024, T4 Arm Err-100 Err-100
- Material And Location [ANNQ]
- Steel, Astm A582, Type 303, Cond A Handle Pin Err-100 Err-100
- Material And Location [ANNQ]
- Plastic, Acetal Resin 500, E I Dupont De Nemours And Co Inc Handle Err-100 Err-100
- Ratchet [AWKF]
- Not Included
- Shank Height [AQZQ]
- 0.380 Inches Nominal
NATO Stock Numbers Related to 5340-00-135-8801
Freight Information 5340-00-135-8801
5340-00-135-8801 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 130400. A Sub NMFC of X. It has a NMFC Description of STARTING/CRANKING SYSTMS I/C ENG. 5340-00-135-8801 is rated as class 85 when transported by Less-Than Truckload (LTL) freight. 5340-00-135-8801 is rated as class 55 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 61355 which rates the freight between FCL and LCL. 5340-00-135-8801 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5340-00-135-8801 is not classified as a special type of cargo when transported by water. 5340-00-135-8801 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5340-00-135-8801
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- Packaging Data does not meet current MIL-STD-2073-1E
- Storage Environment
- Unheated General Purpose
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- --
- --
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- --
- 5.5" H x 3.4" W x 0.9" L
- --
- --
- --
- Special Requirements
- 5.5" H x 3.4" W x 0.9" L
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- Special Requirement
- Special Requirements – see Specific Instructions or Drawings provided
- Special Requirements. See Specific Instructions or Drawings Provided
- Special Requirements. See Specific Instructions or Drawings Provided
- Special requirement – See specific instructions or drawings provided
- --
- Special Requirements – see Specific Instructions or Drawings provided
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- 20
- Special requirement – See specific instructions or drawings provided
