5340-00-134-3237

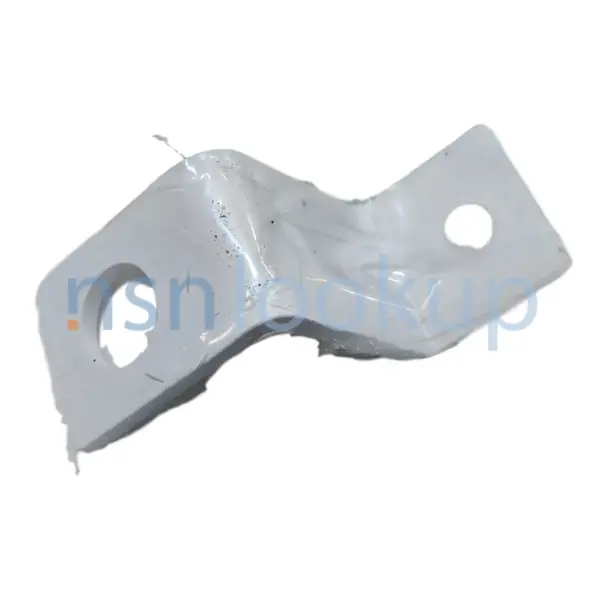

Double Angle Bracket
5340001343237 001343237 10911854
A rigid item usually fabricated from flat material, forming two alternate or two adjacent interior angles, both which are less than 180 degrees (3.141 radians). It is designed to position, align, and/or support an item. It may be reinforced. See also BRACKET, ANGLE and BRACKET (1), MOUNTING. View more Double Angle Bracket
November 2023
22
Marketplace 5340-00-134-3237
Request a Quotation from participating marketplace vendors
Related Documents 5340-00-134-3237 5+ Documents (More...)
... 10911854 BRACKET,DOUBLE ANGLE 49 EA NS Request Quotation Subscribe to View Vendor Details... 5340
NE Updated Every Day 5340-00-134-3237 RQST Updated Every Day 5340-00-134-3237 RQST NE Related Documents
Restrictions 5340-00-134-3237
5340-00-134-3237 is a Double Angle Bracket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5340-00-134-3237
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5340-00-134-3237
- US Army (A919)
- Effective Date:
- 1 Sep 2005
- Supplementary Receivers:
- AZ
- US Navy (N9BZ)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GG
- Austria (WB)
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Brazil (YA)
- Brazil (YA01)
- Effective Date:
- 1 Mar 2001
- Spain (YB)
- Spain (YB01)
- Effective Date:
- 1 Oct 1998
- Singapore (YJ)
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Morocco (YP)
- Morocco (YP01)
- Effective Date:
- 1 Nov 2008
- Republic of Korea (ZH)
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP)
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU)
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW)
- Turkey (ZW01)
- Effective Date:
- 1 Aug 2003
- United States of America (ZZ)
Approved Sources 5340-00-134-3237
- Part Number
- Manufacturer
- Status
- 10911854
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
- 5340001343237
- SCY13 - E.C.A Etablissement (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 5340001343237
- A00AM - E.C.A Etablissement Central Des (Active)
- NATO Reference
- NATO Reference
Datasheet 5340-00-134-3237
- Characteristic
- Specifications
- FIIG
- Specifications
- A042A0
- Center Section Thickness [AHQB]
- 0.120 Inches Nominal
- Center Section Width [AHQA]
- 1.000 Inches Nominal
- Center Section Height [AHPZ]
- 1.560 Inches Nominal
- First Leg Angle [CSSQ]
- 90.0 Degrees Nominal
- First Leg Distance From Edge To Hole Center Along Width [AHRA]
- 0.500 Inches Nominal
- First Leg Hole Arrangement Style [AKAU]
- One Hole
- First Leg Hole Diameter [AHLK]
- 0.280 Inches Minimum And 0.300 Inches Maximum
- First Leg Distance From Edge To Hole Center Along Length [AHRB]
- 0.370 Inches Nominal
- First Leg Style [AJZU]
- Square
- First Leg Thickness [AHPW]
- 0.120 Inches Nominal
- First Leg Width [AHQN]
- 1.000 Inches Nominal
- First Leg Length [ADLK]
- 1.000 Inches Nominal
- Material Document And Classification [MDCL]
- Qq-S-698 Fed Spec Single Material Response
- Material [MATT]
- Steel
- Second Leg Angle [CSSR]
- 90.0 Degrees Nominal
- Second Leg Distance From Edge To Hole Center Along Width [AHLV]
- 0.500 Inches Nominal
- Second Leg Hole Arrangement Style [AKCU]
- One Hole
- Second Leg Distance From Edge To Hole Center Along Length [AHLW]
- 0.500 Inches Nominal
- Second Leg Relationship To First Leg [CSSP]
- Not Identical
- Second Leg Style [AKBU]
- Square
- Second Leg Thickness [AHPX]
- 0.120 Inches Nominal
- Second Leg Width [AHLF]
- 1.000 Inches Nominal
- Second Leg Hole Diameter [AHLN]
- 0.530 Inches Minimum And 0.550 Inches Maximum
- Second Leg Length [ADLL]
- 1.250 Inches Nominal
- Style Designator [STYL]
- Double Angle
- Surface Treatment Document And Classification [STDC]
- Mil-Std-193 Mil Spec Single Treatment Response
- Surface Treatment [SFTT]
- Enamel
