5340-00-133-5034
Butt Hinge Leaf
5340001335034 001335034 3037-1380
An item consisting of one leaf only of a HINGE, BUTT, with or without a hinge pin. View more Butt Hinge Leaf
November 2023
6
Marketplace 5340-00-133-5034
Request a Quotation from participating marketplace vendors
Related Documents 5340-00-133-5034 1+ Documents (More...)
BUY NE FedMall Updated Every Day 5340-00-133-5034 RQST NE Updated Every Day 5340-00-133-5034 RQST
Updated Every Day 5340-00-133-5034 RQST NE Related Documents 5340-00-133-5034 1+ Documents ( More...
Restrictions 5340-00-133-5034
5340-00-133-5034 is a Butt Hinge Leaf that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5340-00-133-5034
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5340-00-133-5034
- US Air Force (FUGI)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- FUKZ
Approved Sources 5340-00-133-5034
- Part Number
- Manufacturer
- Status
- 3037-1380
- Manufacturer
- 81205 - The Boeing Company (Active)
- Primary Buy
- Primary Buy
Datasheet 5340-00-133-5034
- Characteristic
- Specifications
- FIIG
- Specifications
- A25100
- Center To Center Distance Between Mounting Holes Along Length [ADFY]
- 1.375 Inches Nominal
- Hinge Pin [AKEW]
- Not Included
- Material Thickness [ABPX]
- 0.250 Inches Nominal
- Mounting Hole Diameter [ABTB]
- 0.281 Inches Nominal
- Mounting Hole Quantity [ABTJ]
- 3
- Knuckle Inside Diameter [AKFS]
- 0.266 Inches Nominal
- Knuckle Length [AKFH]
- 1.500 Inches Nominal
- Knuckle Quantity [AKEX]
- 1
- Knuckle Type [AKNB]
- Friction
- Leaf Outer Edge To Hole Center Vertical Distance [AKFF]
- 0.500 Inches Nominal
- Material And Location [ANNQ]
- Steel, Qq-S-698 Overall
- Reversible Feature [AJNC]
- Included
- Overall Length [ABHP]
- 1.500 Inches Nominal
- Performance Type [AGLD]
- Not Rated
- Pin Center To Body Edge Distance [AKFK]
- 3.250 Inches Nominal
- Style Designator [STYL]

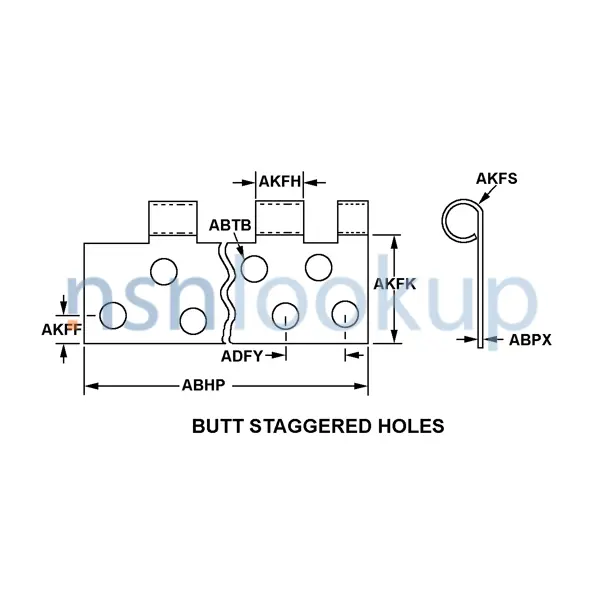

- Butt Staggered Holes
- Surface Treatment And Location [ANNR]
- Cadmium Plate, Qq-P-416, Type 2 Overall
