5340-00-102-9881
Recess Handle
5340001029881 001029881 10608413-1 H9140
A recessed item designed to be attached to another item such as a door, drawer, or window to provide access for the finger tips for opening, lifting, pulling, and the like. Includes sash lifts of the recessed type. View more Recess Handle
January 2023
8
Marketplace 5340-00-102-9881
Request a Quotation from participating marketplace vendors
Related Documents 5340-00-102-9881 4+ Documents (More...)
United States (US) 4. 5340-00-102-9881 Marketplace Restrictions Approved Sources Datasheet Management
RQST NE Updated Every Day 5340-00-102-9881 RQST Updated Every Day 5340-00-102-9881 RQST NE Related Documents
Recess Handle 5340001029881 001029881 Upgrade for $1 a day Upgrade your Account Upgrade 5340-00
-102-9881Recess Handle5340001029881 001029881 10608413 https//www.nsnlookup.com /fsg-53/fsc-5340/us 5340
-1,9140-1 H9140-19140-1 A deformable material which prevents the passage of matter through the joint
DEMILI https//www.nsnlookup.com /fsg-53/fsc-5330/us 5330-00-356-1390 Gasket 5330003561390003561390,H9140
Restrictions 5340-00-102-9881
5340-00-102-9881 is a Recess Handle that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
End Users 5340-00-102-9881
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5340-00-102-9881
- Part Number
- Manufacturer
- Status
- 10608413-1
- Manufacturer
- 18876 - Us Army Aviation And Missile Command (Active)
- Primary Buy
- Primary Buy
- H9140
- 71218 - Bud Industries Inc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5340-00-102-9881
- Characteristic
- Specifications
- FIIG
- Specifications
- A250A0
- Material [MATT]
- Aluminum Alloy Overall
- Surface Treatment [SFTT]
- Anodize Overall

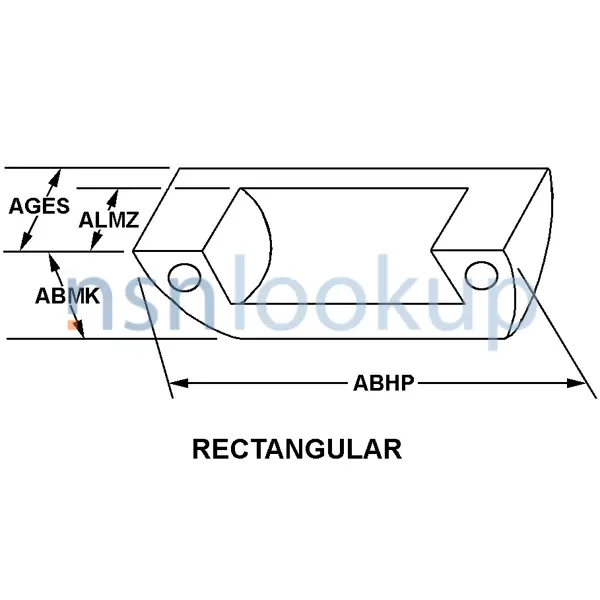

- Style Designator [STYL]
- Rectangular
- Overall Length [ABHP]
- 4.000 Inches Nominal
- Overall Width [ABMK]
- 1.380 Inches Nominal
- Handle Height [AGES]
- 0.880 Inches Nominal
- Handle Clearance [ALMZ]
- 0.760 Inches Nominal
- Mounting Method [AXGY]
- Threaded Hole
- Mounting Facility Quantity [AKPV]
- 2
- Center To Center Distance Between Mounting Facilities Parallel To Length [ABKQ]
- 3.500 Inches Nominal
- Thread Series Designator [THSD]
- Unf
- Nominal Thread Size [CQJX]
- 0.190 Inches
- Thread Class [AAJD]
- 2B
NATO Stock Numbers Related to 5340-00-102-9881
Freight Information 5340-00-102-9881
5340-00-102-9881 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 136500. A Sub NMFC of Z. It has a NMFC Description of METAL NOI/METAL ALLOYS NOI. 5340-00-102-9881 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 68455 which rates the freight between FCL and LCL. 5340-00-102-9881 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 5340-00-102-9881 is not classified as a special type of cargo when transported by water. 5340-00-102-9881 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5340-00-102-9881
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- --
- --
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- --
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- --
- --
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
- No Requirement
