5340-00-087-9547
Hand Crank
5340000879547 000879547 7739770
An item consisting of a radial arm having a handle parallel to its pivoted axis for transmitting motion to a shaft or object. It may have an integral extension. For items without an integral handle, see, ARM (1), HAND CRANK. Excludes HANDWHEEL; and HANDLE, WINDOW REGULATOR. View more Hand Crank
May 2023
6
Marketplace 5340-00-087-9547
Request a Quotation from participating marketplace vendors
Related Documents 5340-00-087-9547 1+ Documents (More...)
RQST NE Updated Every Day 5340-00-087-9547 RQST Updated Every Day 5340-00-087-9547 RQST NE Related Documents
5340-00-087-9547 1+ Documents ( More... ) https//www.nsnlookup.com /fsg-53/fsc-5340/us 5340-00-087-9547
Restrictions 5340-00-087-9547
5340-00-087-9547 is a Hand Crank that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5340-00-087-9547
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5340-00-087-9547
- US Army (A919)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- A187
- Supplementary Receivers:
- AZ
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5340-00-087-9547
- Part Number
- Manufacturer
- Status
- 7739770
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
Datasheet 5340-00-087-9547
- Characteristic
- Specifications
- FIIG
- Specifications
- A25300
- Material And Location [ANNQ]
- Steel Overall
- Arm Style [AWJW]
- Straight
- Crank Throw Length [AWKG]
- 12.000 Inches Nominal

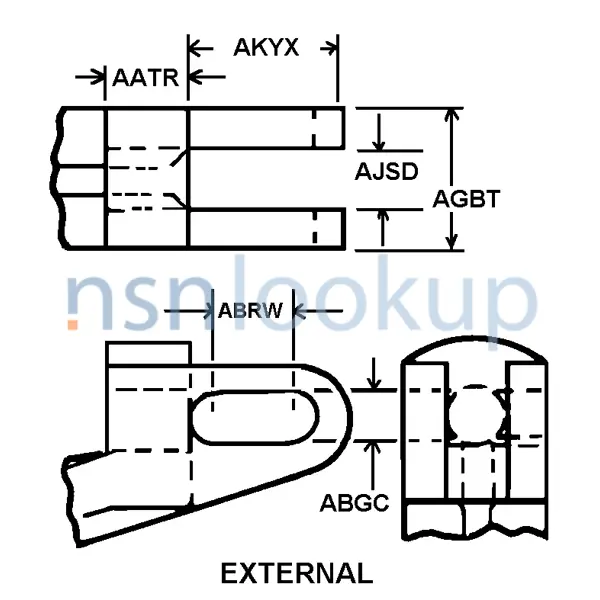

- Drive End Style [AJFW]
- External
- Shank Length [AATR]
- 2.750 Inches Nominal
- Slot Width [ABGC]
- 0.391 Inches Nominal
- Slot Length [ABRW]
- 1.532 Inches Nominal
- Outside Width [ADJV]
- 1.000 Inches Nominal
- Fork Width [AGBT]
- 1.500 Inches Nominal
- Fork Span Width [AJSD]
- 1.000 Inches Nominal
- Fork Depth [AKYX]
- 1.825 Inches Nominal
- Handle Mounting Method [AWKC]
- Integral
- Handle Style [ALMP]
- Round
- Handle Length [AASN]
- 6.406 Inches Nominal
- Handle Rotating Feature [AWKD]
- Included
- Ratchet [AWKF]
- Not Included
DLA Procurement Analysis 5340-00-087-9547
Management Data 5340-00-087-9547
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- PV
- Other Automotive Categories
Semi-Trailer, Prime Mover, 5 ton
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
NATO Stock Numbers Related to 5340-00-087-9547
Freight Information 5340-00-087-9547
5340-00-087-9547 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 095190. A Sub NMFC of Z. It has a NMFC Description of HARDWARE, NOI. 5340-00-087-9547 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 49790 which rates the freight between FCL and LCL. 5340-00-087-9547 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 5340-00-087-9547 is not classified as a special type of cargo when transported by water. 5340-00-087-9547 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5340-00-087-9547
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- 21.0" H x 7.2" W x 2.2" L
- --
- --
- Physical Protection
- Any Suitable Process
- 21.0" H x 7.2" W x 2.2" L
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- Any Suitable Container
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Contracting Technical Data File (CTDF) 5340-00-087-9547 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
