5340-00-069-9312
Loop Clamp
5340000699312 000699312 747-24
A clamp designed to surround other item(s) such as cable(s), conduit(s), pipe(s), hose(s), or tube(s), and to fasten together or to another object or structure. Includes straight flexible items. For items specifically designed to clamp a hose to a connection to prevent leakage, see CLAMP, HOSE. See also HANGER, PIPE and CLIP, SPRING TENSION. For retaining straps with a bridge, see STRAP, RETAINING. Excludes CLAMP, ELECTRICAL; BAND, RETAINING; CLAMP (1), C; BRACKET PIPE. View more Loop Clamp
January 2023
12
Marketplace 5340-00-069-9312
Request a Quotation from participating marketplace vendors
Related Documents 5340-00-069-9312 2+ Documents (More...)
RQST NE Updated Every Day 5340-00-069-9312 RQST Updated Every Day 5340-00-069-9312 RQST NE Related
Documents 5340-00-069-9312 2+ Documents ( More... ) https//www.nsnlookup.com /fsg-53/fsc-5340/us 5340
5340-12-025-7418 DEMIL: | DEMILI : | CRITICALITY https//www.nsnlookup.com /fsg-53/fsc-5340/us 5340-00-069-9312
Loop Clamp 5340000699312 000699312,747-24 Every Day 5340-00-069-9312 RQST NE Restrictions https
Restrictions 5340-00-069-9312
5340-00-069-9312 is a Loop Clamp that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
End Users 5340-00-069-9312
- Italy (ZR01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5340-00-069-9312
- Part Number
- Manufacturer
- Status
- 747-24
- Manufacturer
- 83930 - Transdigm Inc (Active)
- Primary Buy
- Primary Buy
Datasheet 5340-00-069-9312
- Characteristic
- Specifications
- FIIG
- Specifications
- A12700
- Distance From Loop Center To Tongue End [AZDC]
- 1.297 Inches Nominal
- Center To Center Distance Between First And Second Holes [AKZC]
- 0.750 Inches Nominal
- Center To Center Distance Between Loop And Mounting Hole [AZCY]
- 1.047 Inches Nominal
- Center To Center Distance Between Loop And Lug Hole [AZDE]
- 1.250 Inches Nominal
- Diameter [ABMZ]
- 0.199 Inches Nominal
- Material Thickness [ABPX]
- 0.064 Inches Nominal
- Material [MATT]
- Aluminum Alloy 2024 Band
- Material [MATT]
- Plastic Tetrafluoroethylene Cushion
- Loop Inside Diameter [BZTN]
- 1.500 Inches Nominal
- Lug Hole Diameter [BZTQ]
- 0.141 Inches Nominal
- Lug Width [AHMM]
- 1.250 Inches Nominal
- Overall Width [ABMK]
- 0.688 Inches Nominal

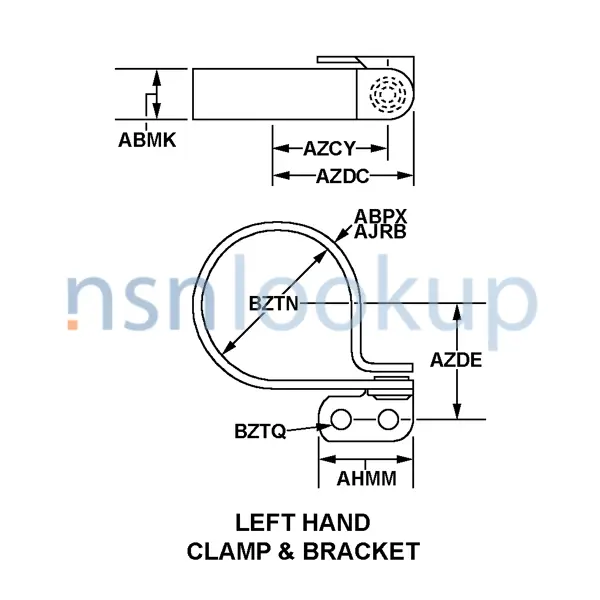

- Style Designator [STYL]
- Left Hand Clamp & Bracket
- Tongue Hole Type [AAAL]
- Round, Unthreaded
Similar Supply Items to 5340-00-069-9312
Freight Information 5340-00-069-9312
5340-00-069-9312 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061200. A Sub NMFC of X. It has a NMFC Description of CABLE CLAMPS/JOINTS NOI. 5340-00-069-9312 is rated as class 60 when transported by Less-Than Truckload (LTL) freight. 5340-00-069-9312 is rated as class 60 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 34370 which rates the freight between FCL and LCL. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 5340-00-069-9312 is not classified as a special type of cargo when transported by water. 5340-00-069-9312 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
