5340-00-039-6883
Access Cover
5340000396883 000396883 B282712 0E337
A rigid or flexible item of various shapes attached to a structure for the purpose of providing access for inspection, service, replacement of components and/or adjustments or mounting operations. It is designed to be attached by means of bolt holes, slots, mounting ears, tabs, and the like. To permit access, the mounted cover requires partial or complete removal. It may include an observation window. For items permanently attached by hinges and the like, see DOOR, ACCESS (as modified). Excludes all covers not specifically designed to provide access for the purposes listed above. View more Access Cover
January 2023
11
Marketplace 5340-00-039-6883
Request a Quotation from participating marketplace vendors
Related Documents 5340-00-039-6883 2+ Documents (More...)
(Identification) 1/3 NSN 5340-00-039-6883 (Identification) 2/3 NSN 5340-00-039-6883 (Identification
RQST NE Updated Every Day 5340-00-039-6883 RQST Updated Every Day 5340-00-039-6883 RQST NE Related
Restrictions 5340-00-039-6883
5340-00-039-6883 is a Access Cover that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5340-00-039-6883
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5340-00-039-6883
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5340-00-039-6883
- Part Number
- Manufacturer
- Status
- 0E337
- Manufacturer
- 92392 - Allis-Chalmers Corp (Obsolete)
- Original Design
- Original Design
- B282712
- 19207 - U S Army Tank Automotive Command (Active)
- Secondary Buy
- Secondary Buy
Datasheet 5340-00-039-6883
- Characteristic
- Specifications
- FIIG
- Specifications
- A531C0
- Body Outside Radius [ADPX]
- 0.500 Inches Nominal
- Body Thickness [ADPR]
- 0.187 Inches Nominal
- Bolt Hole Centerline To Nearest Edge Distance [ADVJ]
- 0.375 Inches Nominal

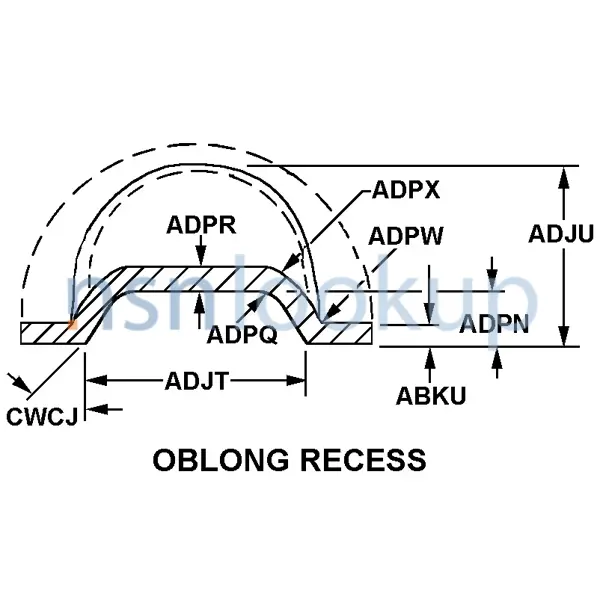

- Cross-Sectional Shape Style [AAGR]
- Oblong Recess
- Distance Between Hole Centers [BPCJ]
- 3.250 Inches Nominal
- First Recess Inside Height [ADPN]
- 0.750 Inches Nominal
- Flange Thickness [ABKU]
- 0.250 Inches Nominal
- Fsc Application Data [ZZZV]
- Differentials,Driving Axle
- Hole Diameter [AAUB]
- 0.406 Inches Nominal
- Hole Quantity Along Length [ADNV]
- 2
- Material [MATT]
- Iron
- Mounting Opening Shape Style [ADQK]
- Unthreaded Hole
- Outside Corner Radius [ADPW]
- 0.187 Inches Nominal
- Outside Diameter [ABKV]
- 4.000 Inches Nominal
- Inside Angle [CWCJ]
- 20.0 Degrees Nominal
- Inside Corner Radius [ADPQ]
- 0.312 Inches Nominal
- Inside Length [ADJU]
- 3.000 Inches Nominal
- Inside Width [ADJT]
- 2.000 Inches Nominal
- Securing Device Type [ADQB]
- Threaded Fastener
- Peripheral Shape Style [ABMW]
- Round, Multi Holes
NATO Stock Numbers Related to 5340-00-039-6883
Freight Information 5340-00-039-6883
5340-00-039-6883 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 095190. A Sub NMFC of J. It has a NMFC Description of HARDWARE, NOI SUB 9. 5340-00-039-6883 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. 5340-00-039-6883 is rated as class 70 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 49790 which rates the freight between FCL and LCL. 5340-00-039-6883 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5340-00-039-6883 is not classified as a special type of cargo when transported by water. 5340-00-039-6883 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
