5331-01-168-6385
Preformed Packing
5331011686385 011686385 MS28775-112 1862800SH2PC 24 A25141-112-STD 71866 PC 32 71869PC32 207-1862800SH2PC24

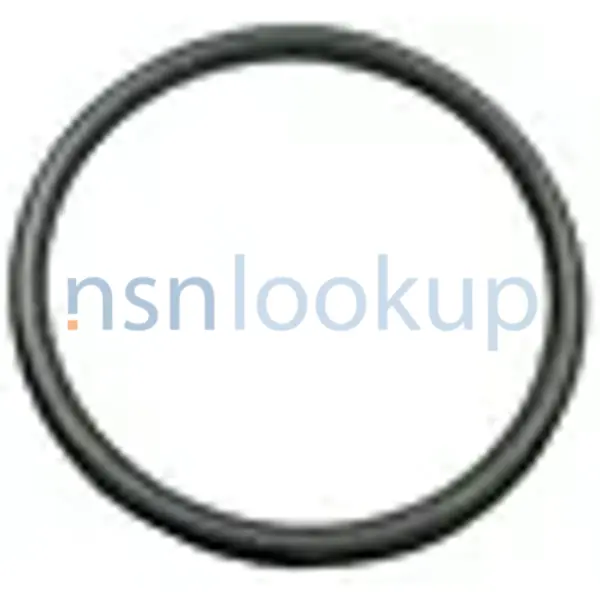

A nonmetallic circular item with an aperature, having a solid round cross-section. They are used primarily for sealing. For items with other than round cross section, see PACKING,PREFORMED. For noncircular items with a round cross-section, see SEAL,NONMETALLIC ROUND SECTION and RUBBER,ROUND SECTION. View more O-Ring
May 2023
29
Marketplace 5331-01-168-6385
Request a Quotation from participating marketplace vendors
Related Documents 5331-01-168-6385 5+ Documents (More...)
MS28775-112 O-RING 29 EA NS Request Quotation Subscribe to View Vendor Details...
MS28775-112 O-RING 70 EA NS Request Quotation Subscribe to View Vendor Details...
MS28775-112 O-RING 29 EA NS Request Quotation Subscribe to View Vendor Details...
MS28775-112 O-RING 70 EA NS Request Quotation Subscribe to View Vendor Details...
MS28775-112 PACKING,PREFORM 29 EA NS Request Quotation Subscribe to View Vendor Details...
MS28775-112 PACKING,PREFORM 3 EA NS Request Quotation Subscribe to View Vendor Details...
MS28775-112 PACKING,PREFORMED 29 EA NS Request Quotation Subscribe to View Vendor Details...
MS28775-112 PACKING,PREFORMED 14 EA NS Request Quotation Subscribe to View Vendor Details...
Restrictions 5331-01-168-6385
5331-01-168-6385 is a Preformed Packing that does not have a nuclear hardened feature, but does have another critical feature or features such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 5331-01-168-6385
- US Navy (N1HE)
- Effective Date:
- 1 Apr 1991
- Supplementary Receivers:
- GG
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Slovenia (WL01)
- Effective Date:
- 1 Jan 2007
- Brazil (YA01)
- Effective Date:
- 1 Jul 2001
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Australia (ZA01)
- Effective Date:
- 1 Oct 2009
- Republic of Korea (ZH01)
- Effective Date:
- 1 May 2003
- Italy (ZR01)
- Effective Date:
- 1 Feb 2002
- Greece (ZU01)
- Effective Date:
- 1 Jun 2005
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
- NATO Maintenance and Supply Agency (ZX01)
- Effective Date:
- 1 Apr 2010
Approved Sources 5331-01-168-6385
- Part Number
- Manufacturer
- Status
- MS28775-112
- Manufacturer
- 96906 - Military Standards (Active)
- Incomplete Standard
- Incomplete Standard
- 1862800SH2PC 24
- 81316 - Portsmouth Naval Shipyard (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- A25141-112-STD
- 89326 - Barksdale, Inc (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 71866 PC 32
- 81982 - Hydro-Aire Aerospace Corp (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 71869PC32
- 81982 - Hydro-Aire Aerospace Corp (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 207-1862800SH2PC24
- 81316 - Portsmouth Naval Shipyard (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
Datasheet 5331-01-168-6385
- Characteristic
- Specifications
- FIIG
- Specifications
- A510X0
- Elongation Percentage [ANYN]
- 160 Maximum
- Center Hole Diameter [ADYT]
- 0.487 Inches Nominal
- Criticality Code Justification [CRTL]
- Zzzw
- Cross-Sectional Height [ADVN]
- 0.094 Inches Nominal
- Departure From Cited Document [ZZZW]
- Material Will Be In Accordance With Ships Parts Control Center Activity Hx Quality Control,Manufacturing And Testing Specifications
- Material [MATT]
- Rubber Butadiene-Acrylonitrile Class Nbr Overall
- Peripheral Diameter [ADYU]
- 0.693 Inches Nominal
- Temp Rating [ABJH]
- -65.0 Deg Fahrenheit And 275.0 Deg Fahrenheit
DLA Procurement Analysis 5331-01-168-6385
- DLA Production Lead Time:
- Subscribe
Management Data 5331-01-168-6385
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Jun 2022
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- Dec 2021
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- Jul 2021
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- Oct 2019
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
- Special Material Content:
- 9
- Non-Hazardous or Non-Sensitive Item
NATO Stock Numbers Related to 5331-01-168-6385
Freight Information 5331-01-168-6385
5331-01-168-6385 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 148520. A Sub NMFC of X. It has a NMFC Description of PACKING RUBR/GUM COMPOUND O/T FOAM. 5331-01-168-6385 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. 5331-01-168-6385 is rated as class 70 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 74340 which rates the freight between FCL and LCL. 5331-01-168-6385 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 596 for ocean manifesting and military sealift. 5331-01-168-6385 is not classified as a special type of cargo when transported by water. 5331-01-168-6385 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
