5331-01-041-1302

O-Ring

5331010411302 010411302 30-0464-5 0561C0031-30 2-032N674-70 398032-72 AS568-032MIL-G- 21569B CLASS 1 B398032-72 211032 1N141300119 200-032-4470 39803272 5331PL1243447

A nonmetallic circular item with an aperature, having a solid round cross-section. They are used primarily for sealing. For items with other than round cross section, see PACKING,PREFORMED. For noncircular items with a round cross-section, see SEAL,NONMETALLIC ROUND SECTION and RUBBER,ROUND SECTION. View more O-Ring

Managed by United States

NSN Created on 20 May 1977

Data Last Changed
March 2025

NATO Update Count
37

NATO Data Quality

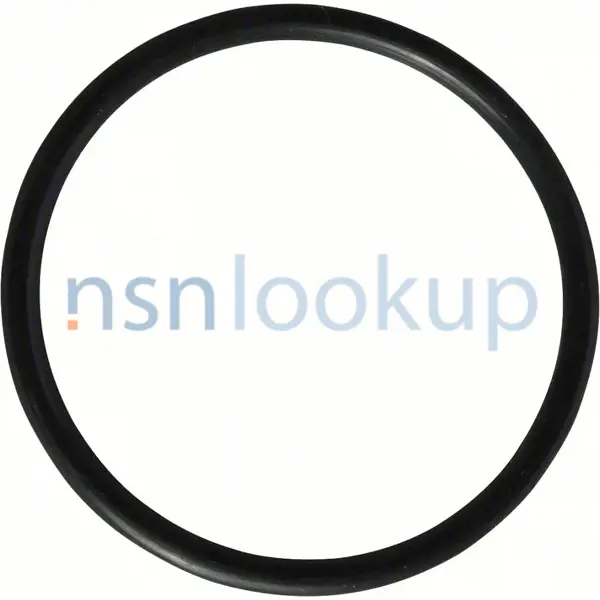

5331-01-041-1302 O-RING 5331010411302 010411302 1/1 — 5331-01-041-1302 Photo 1/1

Marketplace 5331-01-041-1302

Need Help?
Request a Quotation from participating marketplace vendors

Subscribe to View Vendor Details...

2-032N674-70 O-RING 187 EA NS

Updated Every Day

5331-01-041-1302 RQST NE

Updated Every Day

5331-01-041-1302 RQST

Updated Every Day

5331-01-041-1302 RQST NE

Restrictions 5331-01-041-1302

5331-01-041-1302 is a O-Ring that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.

Import and Export 5331-01-041-1302

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 5331-01-041-1302

US Army (A919)
Effective Date:: 1 Apr 2006
Former MOE Rule:: A187
Supplementary Receivers:: AZBF; AMC 1 AMSC G IMC Z IMCACTY AZ

US Air Force (FXGI)
Effective Date:: 1 Apr 2006
Former MOE Rule:: FXKZ; AMC 1 AMSC G IMC Z IMCACTY SX

US Navy (N9BZ)
Effective Date:: 1 Apr 2006
Former MOE Rule:: N9ZD
Supplementary Collaborators:: GTKEJBHXHD; AMC 1 AMSC G IMC Z IMCACTY HD

Austria (WB01)
Effective Date:: 1 Feb 2005

Poland (WP01)
Effective Date:: 1 Oct 2003

Brazil (YA01)
Effective Date:: 1 Nov 2007

Spain (YB01)
Effective Date:: 1 Apr 1991

Australia (ZA01)
Effective Date:: 1 Apr 1991

Canada (ZC01)
Effective Date:: 1 Apr 1991

Germany (ZG01)
Effective Date:: 1 Oct 2009

Republic of Korea (ZH01)
Effective Date:: 1 Apr 2002

Italy (ZR01)
Effective Date:: 1 Jul 1997

Greece (ZU01)
Effective Date:: 1 Dec 2009

Turkey (ZW01)
Effective Date:: 1 Dec 2005

Approved Sources 5331-01-041-1302

Part Number
Manufacturer
Status
2-032N674-70: 02697 - Parker-Hannifin Corp (Active); Primary Buy; RNCC 3 RNVC 2 DAC 4
1N141300119: A2309 - Leonardo Spa Divisione Sistemi Di (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
200-032-4470: Z5287 - International Seal Co Aust Pty Ltd (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 6
39803272: 35795 - Leslie Controls, Inc. (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
5331PL1243447: 9009H - Jednolity Indeks Materialowy - (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9
30-0464-5: 70061 - Lydall Inc (Active); Advisory Reference; RNCC C RNVC 1 DAC 5
0561C0031-30: D9182 - Zf Industrieantriebe Witten Gmbh (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
2-032N674-70: D9182 - Zf Industrieantriebe Witten Gmbh (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
398032-72: D9182 - Zf Industrieantriebe Witten Gmbh (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
AS568-032MIL-G- 21569B CLASS 1: D9182 - Zf Industrieantriebe Witten Gmbh (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
B398032-72: D9182 - Zf Industrieantriebe Witten Gmbh (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
211032: 62876 - Hynautic Inc Div Of Sta-Rite (Active); Advisory Reference; RNCC C RNVC 1 DAC 5

Datasheet 5331-01-041-1302

Characteristic
Specifications
FIIG: A510X0
Elongation Percentage [ANYN]: 331 Maximum
Center Hole Diameter [ADYT]: 1.849 Inches Minimum And 1.879 Inches Maximum
Cross-Sectional Height [ADVN]: 0.067 Inches Minimum And 0.073 Inches Maximum
Hardness Rating [CQFM]: 70.0 Shore Durometer A Nominal
Material [MATT]: Rubber Butadiene-Acrylonitrile Class Nbr
Outside Diameter [ABHE]: 1.983 Inches Minimum And 2.025 Inches Maximum
Temp Rating [ABJH]: -30.0 Deg Fahrenheit And 250.0 Deg Fahrenheit

Weapon Systems (WSDC) 5331-01-041-1302

Subscribe
View WSDC

Subscribe to View Weapon System Codes...

Subscribe
View Data

DLA Procurement Analysis 5331-01-041-1302

Last Stock Position:: 1318 In Stock
DLA Administrative Lead Time:: Subscribe
DLA Production Lead Time:: Subscribe

Subscribe to View DLA Inventory and Forecast...

Management Data 5331-01-041-1302

Subscribe
View Prices

Effective Date: Organization; Unit of Issue; Unit Price; Qty Unit Pack
Oct 2022: Department of the Navy (DN); EA; Subscribe; 1
Oct 2021: Department of the Navy (DN); EA; Subscribe; 1
Oct 2020: Defense Logistics Agency (DS); EA; Subscribe; 1
Feb 2020: Department of the Air Force (DF); EA; Subscribe; 1

Army

Materiel Category and Inventory Manager:

T: Industrial Supplies (DLA/GSA Items)

Appropriation and Budget Activity:

2: Stock Fund Secondary Items

Management Inventory Segment:

2: Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.

Weapons System / End Item / Homogeneous Group:

00: DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item

Accounting Requirements:

X: Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.

Air Force

Fund:

SF: Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point

Budget:

9: 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors

Aggregation Code:

SX: SICA RESIDUAL MMAC-OC-ALC

Price Validation Code:

N: The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.

Expendability Recoverability Repairability:

N: Expendable. Condemn at User. Stock Fund (except Munitions).

Navy

Cognizance:

9B: Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg

NATO Stock Numbers Related to 5331-01-041-1302

5331-12-376-0296 5331-99-399-7988 5331-99-970-2298 5331-99-770-6125 5331-99-820-9975 5331-99-809-7528 5331-99-248-5606 5331-14-577-5287 5331-12-311-3556 5331-34-037-9544 5331-66-157-8153 5331-27-016-1356 5331-27-016-1378 5331-27-016-2123 5331-99-532-7428 5331-99-721-3845 5331-19-003-7610 5331-19-003-6233

Freight Information 5331-01-041-1302

5331-01-041-1302 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 194120. A Sub NMFC of Z. It has a NMFC Description of WASHERS/GASKETS/PCKG DVCS NOI. 5331-01-041-1302 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 95100 which rates the freight between FCL and LCL. 5331-01-041-1302 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 596 for ocean manifesting and military sealift. 5331-01-041-1302 is not classified as a special type of cargo when transported by water. 5331-01-041-1302 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.

Packaging Data 5331-01-041-1302

Responsible Activity
Packaging Data Source: Primary Inventory Control Activity (PICA); --

Item Pack Level (Unpackaged)

Item Size
Item Weight
Characteristics
Weight/Dimensions Category
Fragility
Item Preservation: --; --; Non-Metallic Item; 2lb or less, one dimension 2" or less, other dimensions less than 24"; Above 110G; No Requirement

Unit Pack Level (Packaged)

Quantity per Pack
Unit Size
Unit Weight
Unit Cube
Preservation Method
Cleaning/Drying: 1; --; --; --; --; --

Preservation Material
Wrapping Material
Cushioning/Dunnage
Cushioning Thickness
Container
Special Marking: No Requirement; No Requirement; --; --; --; Type I, shelf life

Intermediate Pack Level

Quantity of Unit Packs
Container: Any Suitable Container

Procurement History 5331-01-041-1302 3 Records

Subscribe
View Prices

Contract: Date; CAGE; Quantity; Net Price; Std Price
SPE7M222V0627: 14 Jan 2022; Subscribe; 1338; Subscribe; Subscribe
SPE7M217V0414: 09 Jan 2017; Subscribe; 1283; Subscribe; Subscribe
SPE7M214M3998: 31 Jul 2014; Subscribe; 1316; Subscribe; Subscribe

Contracting Technical Data File (CTDF) 5331-01-041-1302 October 2021

Criticality and Quality

Critical Item Code:: X
Flight Safety:
Life Support:
Certified Samples:
Serialization:
First Article Test (FAT):
Certificate of Quality Compliance:
Production Lot Testing:
Special Testing:
Qualified Products List (QPL):

Commercial Properties

Government Furnished Material:
Government Furnished Tooling:
Government Furnished Property:
Price Evaluation Code:
Diminshing Manufacturing Sources:
Warranty:
Commerical Off The Shelf (COTS):
End Item Application:
Auctioning Candidate:
Source of Procurement:
Contract Option:

Restrictions

Boeing Rights Guard:
Export Controlled:
Controlled Technical Data Package (TDP):
Restricted Technical Data Package (TDP):
Contains Classified Material
Weapons System Indicator Code (WSIC):: F

Packaging Requirements

Packaging Determination Table:
Packaging Review Code:: N
Special Packaging Instruction Number (SPIN):
Special Packaging Instruction Number Revision:
Special Packaging Instruction Number Date:
Pallet Reference Number Required:

Subscribe
View CTDF

Subscribe to View CTDF Details...
