5331-00-804-5694

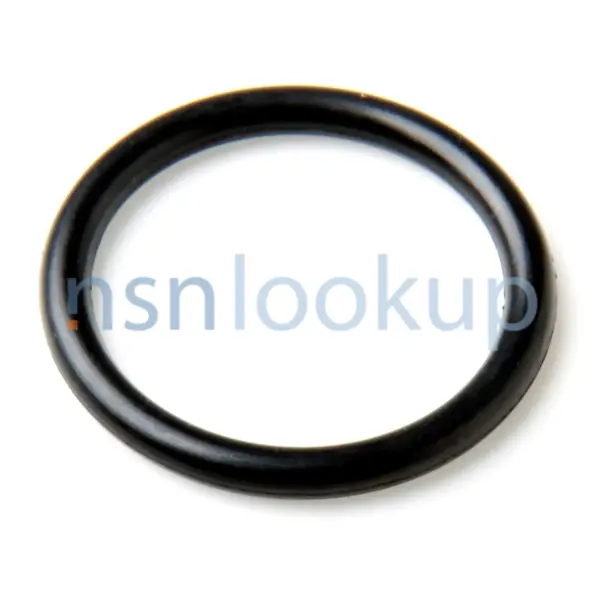

O-Ring

5331008045694 008045694 SAE-AS28778 AS28778-16 GHN10093-3 287-1167P9 3-16 970-329513-916 98006PN21 MS28778-16MIL-P -5510 MS28778-916 S030-916R 1000-004PC16 3-355-8-00-903-05 3188606PC12 287-1122P9 028-08259 2468622-5 3-916 N304-75 81951 ARP568-916MILP5 516B 916-7507 5-131-10-045-00 PRP6290-16-363-70 N0507 3-916 10596841-11

A nonmetallic circular item with an aperature, having a solid round cross-section. They are used primarily for sealing. For items with other than round cross section, see PACKING,PREFORMED. For noncircular items with a round cross-section, see SEAL,NONMETALLIC ROUND SECTION and RUBBER,ROUND SECTION. View more O-Ring

Managed by United States

NSN Created on 1 Jan 1962

Data Last Changed
November 2023

NATO Update Count
130

NATO Data Quality

5331-00-804-5694 O-RING 5331008045694 008045694 1/1 — 5331-00-804-5694 Photo 1/1

Marketplace 5331-00-804-5694

Need Help?
Request a Quotation from participating marketplace vendors

Subscribe to View Vendor Details...

MS28778-16 O-RING 49 EA NS

Subscribe to View Vendor Details...

MS28778-16 O-RING 1527 EA NS

Subscribe to View Vendor Details...

MS28778-16 O-RING 2 EA NS

Subscribe to View Vendor Details...

316 O-RING 12 EA NS

Subscribe to View Vendor Details...

225116 O-RING 1 EA NS

Subscribe to View Vendor Details...

MS28778-16 O-RING 336 EA NS

Subscribe to View Vendor Details...

MS28778-16 O-RING 86 EA NS

Subscribe to View Vendor Details...

MS28778-16 O-RING 18 EA NS

2871122P9 O-RING 15 EA NS

Subscribe to View Vendor Details...

316 O-RING 60 EA NS

MS28778-16 O-RING 85 EA NS

Subscribe to View Vendor Details...

MS28778-16 O-RING RQST NS

Subscribe to View Vendor Details...

22012-16 O-RING 69 EA NS

MS28778-16 O-RING 69 EA NS

Subscribe to View Vendor Details...

MS28778-16 O-RING 132 EA NS

D616 O-RING 6 EA NS

3-16 O-RING 3580 EA NS

316 O-RING RQST NS

Subscribe to View Vendor Details...

MS28778-16 O-RING 41 EA NS

Subscribe to View Vendor Details...

MS28778-16 O-RING 5 EA NS

Subscribe to View Vendor Details...

AN6290-16 O-RING 16 EA NS

Subscribe to View Vendor Details...

853-7903 O-RING 1 EA NS

MS28778-16ES O-RING 1 EA NS

Updated Every Day

5331-00-804-5694 RQST NE

Updated Every Day

5331-00-804-5694 RQST

Updated Every Day

5331-00-804-5694 RQST NE

Restrictions 5331-00-804-5694

5331-00-804-5694 is a O-Ring that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.

Import and Export 5331-00-804-5694

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 5331-00-804-5694

US Army (A919)
Effective Date:: 1 Apr 2006
Former MOE Rule:: A187
Supplementary Receivers:: AJCTBFBDAZ; AMC 1 AMSC T IMC Z IMCACTY CD

US Coast Guard (C918)
Effective Date:: 1 Apr 2006
Former MOE Rule:: C004
Supplementary Receivers:: XH; AMC 1 AMSC T

US Air Force (FXGI)
Effective Date:: 1 Apr 2006
Former MOE Rule:: FXKZ
Supplementary Receivers:: SU; AMC 1 AMSC T IMC Z IMCACTY SX

NASA (G170)
Effective Date:: 1 Apr 1991; AMC 0 AMSC 0 AAC C

NASA (G860)
Effective Date:: 1 Apr 1991; AMC 0 AMSC 0 AAC C

US Marine Corps (MC47)
Effective Date:: 1 Apr 2006
Former MOE Rule:: MC10; AMC 1 AMSC T IMC Z IMCACTY PA

US Navy (N9BZ)
Effective Date:: 1 Apr 2006
Former MOE Rule:: N9ZD
Supplementary Collaborators:: GTKEJVJSJBHXHSHD; AMC 1 AMSC T IMC Z IMCACTY GH

Austria (WB01)
Effective Date:: 1 Feb 2005

Lithuania (WI01)
Effective Date:: 1 May 2001

Slovenia (WL01)
Effective Date:: 1 Jan 2007

Poland (WP01)
Effective Date:: 1 Oct 2005

Brazil (YA01)
Effective Date:: 1 Oct 2000

Spain (YB01)
Effective Date:: 1 Apr 1991

Columbia (YC01)
Effective Date:: 1 Jul 2015

Israel (YD01)
Effective Date:: 1 Apr 1991

Singapore (YJ01)
Effective Date:: 1 Apr 1991

Kuwait (YK01)
Effective Date:: 1 Jan 2015

Morocco (YP01)
Effective Date:: 1 Nov 2008

Saudi Arabia (YS01)
Effective Date:: 1 Feb 2015

Malaysia (YW01)
Effective Date:: 1 Apr 1991

Australia (ZA01)
Effective Date:: 1 Apr 1991

Belgium (ZB01)
Effective Date:: 1 Nov 1999

Canada (ZC01)
Effective Date:: 1 Apr 1991

New Zealand (ZE01)
Effective Date:: 1 Apr 1991

France (ZF01)
Effective Date:: 1 Apr 1991

Germany (ZG01)
Effective Date:: 1 Apr 1991

Republic of Korea (ZH01)
Effective Date:: 1 Apr 1991

United Kingdom (ZK01)
Effective Date:: 1 Apr 1991

Philippines (ZM01)
Effective Date:: 1 Feb 2015

Netherlands (ZN01)
Effective Date:: 1 Apr 1991

Portugal (ZP01)
Effective Date:: 1 Apr 1991

Italy (ZR01)
Effective Date:: 1 Apr 1991

Denmark (ZS01)
Effective Date:: 1 Apr 1991

Norway (ZT01)
Effective Date:: 1 Apr 1991

Greece (ZU01)
Effective Date:: 1 Apr 1991

Turkey (ZW01)
Effective Date:: 1 Aug 1993

NATO Maintenance and Supply Agency (ZX01)
Effective Date:: 1 Apr 1991

Approved Sources 5331-00-804-5694

Part Number
Manufacturer
Status
SAE-AS28778: 0U583 - Sae International (Active); Incomplete Reference; RNCC 3 RNVC 1 DAC E
PRP6290-16-363-70: 77308 - Parco, Llc (Active); Primary Buy; RNCC 3 RNVC 2 DAC X
N0507 3-916: 02697 - Parker-Hannifin Corp (Active); Primary Buy; RNCC 3 RNVC 2 DAC 3
MS28778-16: 0U583 - Sae International (Active); Primary Buy; RNCC 3 RNVC 2 DAC E
10596841-11: 18876 - Us Army Aviation And Missile Command (Active); Primary Buy; RNCC 3 RNVC 2 DAC X
36978-16: 64829 - Arvinmeritor Inc (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
AS28778-16: 1K697 - Dbr Industries, Inc. (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 6
GHN10093-3: 98897 - Lockheed Martin Corp (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 4
263BX16: 91265 - Parker-Hannifin Corporation (Active); Secondary Buy; RNCC 5 RNVC 2 DAC X
916-8307: 25184 - Parker Hannifin Corporation (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 4
MS28778-16: 1K697 - Dbr Industries, Inc. (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 6
D6-16: 01212 - Federal-Mogul Corp Government Sales (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 4
671-00916: 9F512 - Parker-Hannifin Corporation (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 4
2251-16: 91265 - Parker-Hannifin Corporation (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 4
SR810B-90-16: 95272 - Stillman Seal Corporation (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 4
7799-16: 25184 - Parker Hannifin Corporation (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 4
F-14260-16: 70106 - Acushnet Rubber Company, Inc. (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 4
533435-61: 72314 - Bae Systems Information And (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
17343FX: 75Q65 - Oshkosh Defense Llc (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
29,74X2,95-20B9: F8226 - Stacem (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 4
MS28778-16: A0126 - Leonardo Spa Helicopters Division - (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
MS28778-16: A9271 - Goriziane Group Spa (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
MS28778-16: A2142 - Leonardo Spa Aircraft Division (Active); Secondary Buy; RNCC 5 RNVC 2 DAC U
PRP916-8307: 25184 - Parker Hannifin Corporation (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 4
751 836: 77294 - Piper Industrial Manufacturing (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 4
MS28778-16: U7388 - Triumph Aerospace Operations Uk, (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 4
W4072498BR: S3092 - Rheinmetall Air Defence Ag (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 4
137618270: A0199 - Leonardo S.P.A. - Electronics (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
22012-16: 01276 - Danfoss Power Solutions Ii, Llc (Active); Secondary Buy; RNCC 5 RNVC 2 DAC A
AN6290-16: 88044 - Aeronautical Standards Group (Active); Secondary Buy; RNCC 5 RNVC 2 DAC X
Z00.N7423060416: F0086 - Daher Aerospace - Ex Socata (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
MS28778-16: F0229 - Le Joint Francais (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
17343FX: 45152 - Oshkosh Corp (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
2HP865: 45152 - Oshkosh Corp (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
5-131-04-024-001 PC 13: 51900 - Itt Corporation (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
MS28778-16: 81343 - Society Of Automotive Engineers Inc (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC E
SAE-AS2887-16: 81343 - Society Of Automotive Engineers Inc (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC E
3-916 N507-90: C0308 - Parker Hannifin Gmbh O-Ring Division (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 3
MS28778-16ES: H2313 - Eriks B.V. (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 3
3-916 N507-90: 02697 - Parker-Hannifin Corp (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 3
N507-9-16: 02697 - Parker-Hannifin Corp (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
3-16L308-8: 02697 - Parker-Hannifin Corp (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
5330008045694: SCY13 - E.C.A Etablissement (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 9
3-355-8-00-903-05: 51900 - Itt Corporation (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
MS28778-16: 96906 - Military Standards (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC X
5331PL0657677: 9009H - Jednolity Indeks Materialowy - (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9
10172786: A486G - Nimikkeistokeskus Ncb Finland (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9
5330008045694: A00AM - E.C.A Etablissement Central Des (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9
287-1167P9: 49956 - Raytheon Company (Active); Advisory Reference; RNCC C RNVC 1 DAC 4
3-16: D9182 - Zf Industrieantriebe Witten Gmbh (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
970-329513-916: D9182 - Zf Industrieantriebe Witten Gmbh (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
98006PN21: D9182 - Zf Industrieantriebe Witten Gmbh (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
MS28778-16MIL-P -5510: D9182 - Zf Industrieantriebe Witten Gmbh (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
MS28778-916: D9182 - Zf Industrieantriebe Witten Gmbh (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
S030-916R: 33241 - Gulfstream Aerospace Corp Dba (Obsolete); Advisory Reference; RNCC C RNVC 1 DAC 4
1000-004PC16: 27423 - Aluf Industries Inc (Obsolete); Advisory Reference; RNCC C RNVC 1 DAC 6
3-355-8-00-903-05: 6LE50 - Fluid Handling Llc (Active); Advisory Reference; RNCC C RNVC 1 DAC 5
5-131-04-024-001 PC 13: 6LE50 - Fluid Handling Llc (Active); Advisory Reference; RNCC C RNVC 1 DAC 5
3188606PC12: 59364 - Honeywell International Inc. (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
287-1122P9: 49956 - Raytheon Company (Active); Advisory Reference; RNCC C RNVC 1 DAC 4
028-08259: D9182 - Zf Industrieantriebe Witten Gmbh (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
2468622-5: D9182 - Zf Industrieantriebe Witten Gmbh (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
3-916 N304-75: D9182 - Zf Industrieantriebe Witten Gmbh (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
81951: D9182 - Zf Industrieantriebe Witten Gmbh (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
ARP568-916MILP5 516B: D9182 - Zf Industrieantriebe Witten Gmbh (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
916-7507: D9182 - Zf Industrieantriebe Witten Gmbh (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
5-131-10-045-00: 51900 - Itt Corporation (Replaced); Advisory Reference; RNCC C RNVC 1 DAC 6

Datasheet 5331-00-804-5694

Characteristic
Specifications
FIIG: A510X0
Center Hole Diameter [ADYT]: 1.165 Inches Minimum And 1.177 Inches Maximum
Cross-Sectional Height [ADVN]: 0.112 Inches Minimum And 0.120 Inches Maximum
Hardness Rating [CQFM]: 90.0 Shore Durometer A Nominal
Material [MATT]: Rubber Butadiene-Acrylonitrile Class Nbr
Outside Diameter [ABHE]: 1.385 Inches Minimum And 1.421 Inches Maximum
End Item Identification [AGAV]: Rg-31 Mrap; Medium Mine Protected Vehicle - Mmpv

Weapon Systems (WSDC) 5331-00-804-5694

Subscribe
View WSDC

Subscribe to View Weapon System Codes...

Subscribe
View Data

DLA Procurement Analysis 5331-00-804-5694

Last Stock Position:: 19591 In Stock
DLA Administrative Lead Time:: Subscribe
DLA Production Lead Time:: Subscribe

Subscribe to View DLA Inventory and Forecast...

Management Data 5331-00-804-5694

Subscribe
View Prices

Effective Date: Organization; Unit of Issue; Unit Price; Qty Unit Pack
Oct 2022: Department of the Navy (DN); EA; Subscribe; 1
Oct 2021: Department of the Air Force (DF); EA; Subscribe; 1
Oct 2020: Department of the Air Force (DF); EA; Subscribe; 1
Oct 2019: Department of the Air Force (DF); EA; Subscribe; 1

MOE: USC; Code; Statement; Order of Use; Jump To Code; Qty Per Assy; UOM; Technical Document; Quantative Expression
Department of the Air Force (DF): F; R; Refer To Approved For Faa Use; APPROVED FOR FAA USE
US Marine Corps (DM): M; 0; Reversal Of Phrase Code Z 5331-01-192-8639

Army

Materiel Category and Inventory Manager:

T: Industrial Supplies (DLA/GSA Items)

Appropriation and Budget Activity:

2: Stock Fund Secondary Items

Management Inventory Segment:

2: Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.

Weapons System / End Item / Homogeneous Group:

CC: Other Aircraft Categories
Multi-Application Aviation Spares

Accounting Requirements:

X: Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.

Air Force

Fund:

SF: Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point

Budget:

9: 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors

Price Validation Code:

V: The current standard price has been validated.
The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range.
The item was procured under open competition and under the competitive arena the price is considered fair and reasonable.
ZOP or Standard price challenges are permissible but must be supported by adequate justification.

Expendability Recoverability Repairability:

N: Expendable. Condemn at User. Stock Fund (except Munitions).

Navy

Cognizance:

9B: Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg

Special Material Content:

9: Non-Hazardous or Non-Sensitive Item

Marine Corps

Stores Account:

1: Stock Fund Account Item

Combat Essentiality:

5: Critical Repair Part to a Combat Essential End Item

Echelon Management:

B2

Material Identification:

T: Maintenance Float Secondary Non-depot Reparables

Operational Test:

: No Special Procedures

Similar Supply Items to 5331-00-804-5694

Freight Information 5331-00-804-5694

5331-00-804-5694 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 194120. A Sub NMFC of Z. It has a NMFC Description of WASHERS/GASKETS/PCKG DVCS NOI. 5331-00-804-5694 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 95100 which rates the freight between FCL and LCL. 5331-00-804-5694 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 596 for ocean manifesting and military sealift. 5331-00-804-5694 is not classified as a special type of cargo when transported by water. 5331-00-804-5694 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.

Packaging Data 5331-00-804-5694

Responsible Activity
Packaging Data Source: Primary Inventory Control Activity (PICA); --

Item Pack Level (Unpackaged)

Item Size
Item Weight
Characteristics
Weight/Dimensions Category
Fragility
Item Preservation: --; --; Non-Metallic Item; 2lb or less, one dimension 2" or less, other dimensions less than 24"; Above 110G; No Requirement

Unit Pack Level (Packaged)

Quantity per Pack
Unit Size
Unit Weight
Unit Cube
Preservation Method
Cleaning/Drying: 1; --; --; --; --; Any Suitable Process

Preservation Material
Wrapping Material
Cushioning/Dunnage
Cushioning Thickness
Container
Special Marking: No Requirement; No Requirement; No Requirement; Not Applicable; MIL-DTL-117, Type II, Class C, Style 1, Heavy Duty, Waterproof, Greaseproof, Opaque Bag; Type I, shelf life

Intermediate Pack Level

Quantity of Unit Packs
Container: PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box

Procurement History 5331-00-804-5694 9 Records

Subscribe
View Prices

Contract: Date; CAGE; Quantity; Net Price; Std Price
SPE7MX24F0846: 17 Oct 2023; Subscribe; 2300; Subscribe; Subscribe
SPE7M223P2016: 09 Mar 2023; Subscribe; 6846; Subscribe; Subscribe
SPE7M223P2016P00001: 09 Mar 2023; Subscribe; 6846; Subscribe; Subscribe
SPE7M823P1299: 03 Mar 2023; Subscribe; 3480; Subscribe; Subscribe
SPM5EN13D00040084: 17 Oct 2014; Subscribe; 89606; Subscribe; Subscribe
SPM5EN13D00040031: 03 Oct 2013; Subscribe; 8397; Subscribe; Subscribe
SPM5EN13D00040030: 02 Oct 2013; Subscribe; 17100; Subscribe; Subscribe
SPM5EN13D00040026: 11 Jul 2013; Subscribe; 14406; Subscribe; Subscribe
SPM5EN13D00040012: 07 Mar 2013; Subscribe; 36900; Subscribe; Subscribe

Contracting Technical Data File (CTDF) 5331-00-804-5694 October 2021

Criticality and Quality

Critical Item Code:: X
Flight Safety:
Life Support:
Certified Samples:
Serialization:
First Article Test (FAT):
Certificate of Quality Compliance:
Production Lot Testing:
Special Testing:
Qualified Products List (QPL):

Commercial Properties

Government Furnished Material:
Government Furnished Tooling:
Government Furnished Property:
Price Evaluation Code:
Diminshing Manufacturing Sources:
Warranty:
Commerical Off The Shelf (COTS):
End Item Application:
Auctioning Candidate:
Source of Procurement:
Contract Option:

Restrictions

Boeing Rights Guard:
Export Controlled:
Controlled Technical Data Package (TDP):
Restricted Technical Data Package (TDP):
Contains Classified Material
Weapons System Indicator Code (WSIC):: F

Packaging Requirements

Packaging Determination Table:
Packaging Review Code:: N
Special Packaging Instruction Number (SPIN):
Special Packaging Instruction Number Revision:
Special Packaging Instruction Number Date:
Pallet Reference Number Required:

Subscribe
View CTDF

Subscribe to View CTDF Details...

Marketplace 5331-00-804-5694

Related Documents 5331-00-804-5694 5+ Documents (More...)

Restrictions 5331-00-804-5694

Import and Export 5331-00-804-5694

End Users 5331-00-804-5694

Approved Sources 5331-00-804-5694

Datasheet 5331-00-804-5694

Weapon Systems (WSDC) 5331-00-804-5694

DLA Procurement Analysis 5331-00-804-5694

Management Data 5331-00-804-5694

Army

Air Force

Navy

Marine Corps

Similar Supply Items to 5331-00-804-5694

Freight Information 5331-00-804-5694

Packaging Data 5331-00-804-5694

Item Pack Level (Unpackaged)

Unit Pack Level (Packaged)

Intermediate Pack Level

Procurement History 5331-00-804-5694 9 Records

Contracting Technical Data File (CTDF) 5331-00-804-5694 October 2021

Criticality and Quality

Commercial Properties

Restrictions

Packaging Requirements
