5331-00-301-5296

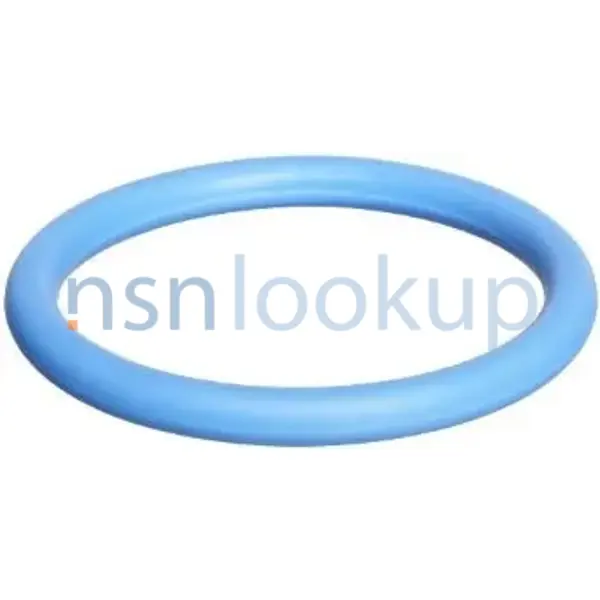

O-Ring
5331003015296 003015296 MIL-DTL-25988/1 M25988/1-175 MIL-R-25988
A nonmetallic circular item with an aperature, having a solid round cross-section. They are used primarily for sealing. For items with other than round cross section, see PACKING,PREFORMED. For noncircular items with a round cross-section, see SEAL,NONMETALLIC ROUND SECTION and RUBBER,ROUND SECTION. View more O-Ring
September 2023
11
Marketplace 5331-00-301-5296
Request a Quotation from participating marketplace vendors
Related Documents 5331-00-301-5296 5+ Documents (More...)
MIL-R 25988 O-RING 1 EA NS Request Quotation Subscribe to View Vendor Details...
MIL-R-25988 O-RING 979 EA NS Request Quotation Subscribe to View Vendor Details...
5331-01-483-8234 RQST Updated Every Day 5331-01-483-8234 RQST NE Related Documents M25988/1-127 MIL-R-25988
O-Ring 5331003015296 003015296 Upgrade for $1 a day Upgrade your Account Upgrade 5331-00-301-5296O-Ring5331003015296
MIL-R-25988 O-RING 979 EA NS Request Quotation Subscribe to View Vendor Details...
O-Ring 5331003015296 003015296 Upgrade for $1 a day Upgrade your Account Upgrade 5331-00-301-5296O-Ring5331003015296
MIL-R-25988 O-RING 979 EA NS Request Quotation Subscribe to View Vendor Details...
MIL-R-25988 O-RING 23 EA NS Request Quotation Subscribe to View Vendor Details... 1549159 O-RING 2 EA
M259881-010 O-RING 167 EA NS Request Quotation MIL-R-25988 O-RING 23 EA NS Request Quotation Updated
O-Ring 5331003015296 003015296 M25988/1-175 MIL-R-25988 A nonmetallic circular item with an aperature
Restrictions 5331-00-301-5296
5331-00-301-5296 is a O-Ring that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5331-00-301-5296
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5331-00-301-5296
- US Air Force (FXGI)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- FXKZ
Approved Sources 5331-00-301-5296
- Part Number
- Manufacturer
- Status
- M25988/1-175
- Manufacturer
- 81349 - Military Specifications (Active)
- Definitive Standard
- Definitive Standard
- MIL-DTL-25988/1
- 81349 - Military Specifications (Active)
- Incomplete Standard
- Incomplete Standard
- MIL-R-25988
- 81349 - Military Specifications (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5331-00-301-5296
- Characteristic
- Specifications
- FIIG
- Specifications
- A510X0
- Elongation Percentage [ANYN]
- 125 Maximum
- Center Hole Diameter [ADYT]
- 8.937 Inches Minimum And 9.037 Inches Maximum
- Cross-Sectional Height [ADVN]
- 0.100 Inches Minimum And 0.106 Inches Maximum
- Hardness Rating [CQFM]
- 70.0 Shore Durometer A Nominal
- Material [MATT]
- Rubber Fluorosilicone Class Fq
- Outside Diameter [ABHE]
- 9.193 Inches Nominal
Weapon Systems (WSDC) 5331-00-301-5296
DLA Procurement Analysis 5331-00-301-5296
- Last Stock Position:
- 48 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5331-00-301-5296
Similar Supply Items to 5331-00-301-5296
Freight Information 5331-00-301-5296
5331-00-301-5296 has freight characteristics managed by the Southwestern Power Administration.It has a National Motor Freight Classification (NMFC) of 194120. A Sub NMFC of Z. It has a NMFC Description of WASHERS/GASKETS/PCKG DVCS NOI. 5331-00-301-5296 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 95100 which rates the freight between FCL and LCL. 5331-00-301-5296 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 596 for ocean manifesting and military sealift. 5331-00-301-5296 is not classified as a special type of cargo when transported by water. 5331-00-301-5296 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5331-00-301-5296
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Non-Metallic Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- --
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- MIL-DTL-117, Type III, Class C, Style 1, Medium Duty, Waterproof, Greaseproof, Opaque Bag
- Special requirements
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- Special Requirement - see Specific Drawing or Instruction provided
- --
Contracting Technical Data File (CTDF) 5331-00-301-5296 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- L
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
