5331-00-294-9718

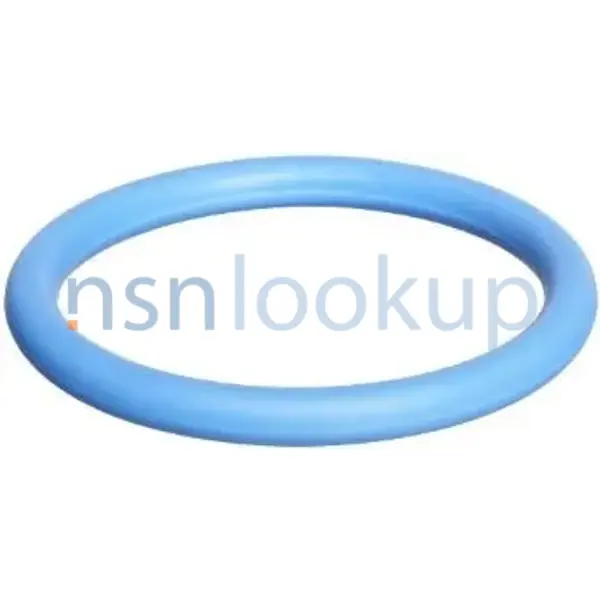

O-Ring
5331002949718 002949718 MIL-DTL-25988/1 M25988/1-334 MIL-R-25988 2-334 L677-70 PRP334-11647 334-11647
A nonmetallic circular item with an aperature, having a solid round cross-section. They are used primarily for sealing. For items with other than round cross section, see PACKING,PREFORMED. For noncircular items with a round cross-section, see SEAL,NONMETALLIC ROUND SECTION and RUBBER,ROUND SECTION. View more O-Ring
November 2023
30
Marketplace 5331-00-294-9718
Request a Quotation from participating marketplace vendors
Related Documents 5331-00-294-9718 5+ Documents (More...)
M25988/1-334 O-RING 100 EA NS Request Quotation 334-11647 O-RING 100 EA NS Request Quotation Subscribe
Y O-RING 1431 EA NS Request Quotation Updated Every Day 5331-00-294-9718 RQST NE Updated Every Day 5331
O-Ring 5331002949718 002949718 294-9718O-Ring5331002949718 002949718 MIL-DTL-25988/1 M25988/1-334
MIL-R-25988 2-334 L677-70 PRP334-11647 334-11647 A nonmetallic circular item with an aperature, having
MIL-R-25988 O-RING 979 EA NS Request Quotation Subscribe to View Vendor Details...
https//www.nsnlookup.com /fsg-53/fsc-5331/us 5331-00-294-9718 O-Ring 5331002949718 002949718 M25988/
M25988/1-240 MIL-R-25988/1 A nonmetallic circular item with an aperature, having a solid round
MIL-R-25988/1 O-RING RQST NS Request Quotation Subscribe to View Vendor Details...
M25988/1-242 2661058Y242 MIL-R-25988/1 2-242L677-70 5331PL0844925 A nonmetallic circular item
MIL-R-25988/1 O-RING RQST NS Request Quotation M25988/1-242 O-RING RQST NS Request Quotation Subscribe
Restrictions 5331-00-294-9718
5331-00-294-9718 is a O-Ring that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5331-00-294-9718
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5331-00-294-9718
- US Air Force (FXGI)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- FXKZ
- US Navy (N9BZ)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- GTKE
- Poland (WP01)
- Effective Date:
- 1 Aug 2006
- Singapore (YJ01)
- Effective Date:
- 1 Jun 2010
- Belgium (ZB01)
- Effective Date:
- 1 Jul 2010
- Republic of Korea (ZH01)
- Effective Date:
- 1 Oct 2009
Approved Sources 5331-00-294-9718
- Part Number
- Manufacturer
- Status
- M25988/1-334
- Manufacturer
- 81349 - Military Specifications (Active)
- Definitive Standard
- Definitive Standard
- MIL-DTL-25988/1
- 81349 - Military Specifications (Active)
- Incomplete Standard
- Incomplete Standard
- MIL-R-25988
- 81349 - Military Specifications (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 2-334 L677-70
- 02697 - Parker-Hannifin Corp (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- PRP334-11647
- 25184 - Parker Hannifin Corporation (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 334-11647
- 25184 - Parker Hannifin Corporation (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5331-00-294-9718
- Characteristic
- Specifications
- FIIG
- Specifications
- A510X0
- Elongation Percentage [ANYN]
- 125 Maximum
- Center Hole Diameter [ADYT]
- 2.580 Inches Minimum And 2.620 Inches Maximum
- Cross-Sectional Height [ADVN]
- 0.205 Inches Minimum And 0.215 Inches Maximum
- Hardness Rating [CQFM]
- 70.0 Shore Durometer A Nominal
- Material [MATT]
- Rubber Fluorosilicone Class Fq
- Outside Diameter [ABHE]
- 3.020 Inches Nominal
Weapon Systems (WSDC) 5331-00-294-9718
DLA Procurement Analysis 5331-00-294-9718
- Last Stock Position:
- 1521 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5331-00-294-9718
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5331-00-294-9718
Freight Information 5331-00-294-9718
5331-00-294-9718 has freight characteristics managed by the Southwestern Power Administration.It has a National Motor Freight Classification (NMFC) of 194120. A Sub NMFC of Z. It has a NMFC Description of WASHERS/GASKETS/PCKG DVCS NOI. 5331-00-294-9718 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 95100 which rates the freight between FCL and LCL. 5331-00-294-9718 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 596 for ocean manifesting and military sealift. 5331-00-294-9718 is not classified as a special type of cargo when transported by water. 5331-00-294-9718 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5331-00-294-9718
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Non-Metallic Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- --
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- --
- --
- MIL-DTL-117, Type III, Class C, Style 1, Medium Duty, Waterproof, Greaseproof, Opaque Bag
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- Any Suitable Container
Procurement History 5331-00-294-9718 3 Records
Contracting Technical Data File (CTDF) 5331-00-294-9718 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
