5330-01-641-5511
Plain Seal
5330016415511 016415511 9858 40220 ITEM 112 41084
A pliable rubber or composition ring-shaped element, split or jointless (solid) not encased in a metal shell, but having a spring, spreader and/or molded-in reinforcement. It is designed to be pressmounted between fixed and movable or moving parts to form a tight and effective seal. View more Plain Seal
May 2023
1
Marketplace 5330-01-641-5511
Request a Quotation from participating marketplace vendors
Related Documents 5330-01-641-5511 5+ Documents (More...)
BUY NE FedMall Updated Every Day 5330-01-641-5511 RQST NE Updated Every Day 5330-01-641-5511 RQST
Updated Every Day 5330-01-641-5511 RQST NE Related Documents 5330-01-641-5511 5+ Documents ( More...
JavaScript in your web browser . 5360-21-862-7473Compression Helical Spring5360218627473 218627473 41084
- Upgrade for $1 a day Upgrade your Account Upgrade 5815 -01-250-3689Spring5815012503689 012503689 41084
Request a Quotation from participating marketplace vendors Request Subscribe to View Vendor Details... 41084
JavaScript in your web browser . 5360-21-862-7473Compression Helical Spring5360218627473 218627473 41084
) https//www.nsnlookup.com /fsg-53/fsc-5330/fr 5330-14-334-0502 Gasket 5330143340502 143340502,035-41084
-0 035-41084-0035-41084035-41084Z A deformable material which prevents the passage of matter through
41084 950-4283 is a Identification Plate Approved Sources 9905-99-950-4283 | RNVC: 2 | DAC: 3 15 Oct
Quotation Subscribe to View Vendor Details... 41084 BEARING,WASHER,THRUST RQST NS Request Quotation
Restrictions 5330-01-641-5511
5330-01-641-5511 is a Plain Seal that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5330-01-641-5511
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5330-01-641-5511
- US Navy (N9BZ)
- Effective Date:
- 1 Jan 2015
- Supplementary Collaborators:
- HD
Approved Sources 5330-01-641-5511
- Part Number
- Manufacturer
- Status
- 9858
- Manufacturer
- 80201 - Skf Usa Inc. (Active)
- Primary Buy
- Primary Buy
- 40220 ITEM 112
- 1KHV0 - Exlar Corporation (Active)
- Secondary Buy
- Secondary Buy
- 41084
- 1KHV0 - Exlar Corporation (Active)
- Secondary Buy
- Secondary Buy
Datasheet 5330-01-641-5511
- Characteristic
- Specifications
- FIIG
- Specifications
- A032A0
- Accommodated Shaft Diameter [ABVM]
- 1.000 Inches Nominal
- Construction [CQCF]
- One-Piece

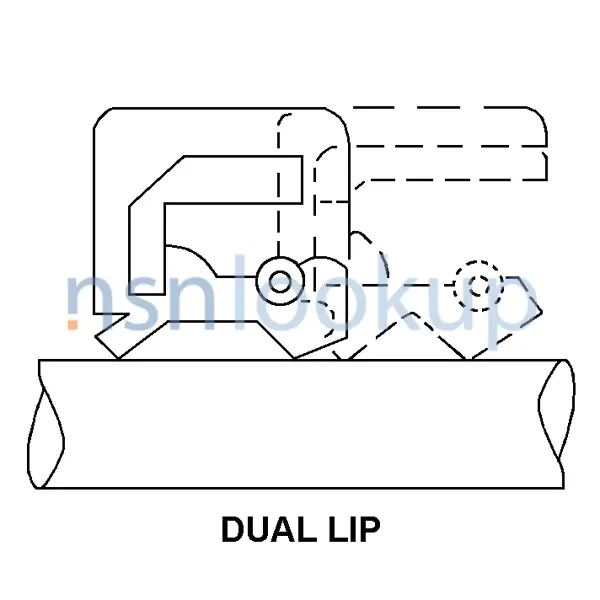

- Cross-Sectional Shape Style [AAGR]
- Dual Lip
- Housing Bore Diameter [CPCW]
- 1.503 Inches Nominal
- End Item Identification [AGAV]
- Actuator, Iccs
- Material [MATT]
- Rubber Fluorocarbon Class Fpm Sealing Element
- Material [MATT]
- Steel Case
- Material [MATT]
- Steel Spring
- Part Name Assigned By Controlling Agency [CXCY]
- Oil Seal Type Crw-A5
- Reference Data And Literature [RDAL]
- Cr Industries Drawing
- Seal Width [ADUC]
- 0.256 Inches Nominal
- Special Features [FEAT]
- Temp Rating 200 To 390 Degrees Fahrenheit
DLA Procurement Analysis 5330-01-641-5511
Management Data 5330-01-641-5511
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 5330-01-641-5511
Freight Information 5330-01-641-5511
5330-01-641-5511 has freight characteristics managed by the Food and Drug Administration (FDA).It has a National Motor Freight Classification (NMFC) of 194090. A Sub NMFC of X. It has a NMFC Description of WASHERS/SEALS. 5330-01-641-5511 is rated as class 60 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 95100 which rates the freight between FCL and LCL. 5330-01-641-5511 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 596 for ocean manifesting and military sealift. 5330-01-641-5511 is not classified as a special type of cargo when transported by water. 5330-01-641-5511 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Procurement History 5330-01-641-5511 1 Records
Contracting Technical Data File (CTDF) 5330-01-641-5511 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
