5330-01-622-6274
Nonmetallic Strip Seal
5330016226274 016226274 596-7551510-57 B831-9242-57
An item fabricated from nonmetallic material designed to be used where there is no relative motion between joined parts. Items having a square or rectangular cross section must be a single piece whose ends may have been secured together to form a specific shape. It may be formed to a specific shape, except round, with or without joints. It may have fabric, cord or metal reinforcement. Except for molded corners, end cuts, and mounting facilities such as holes, slots, press-fit buttons, or the like, the item must be of one continuous cross section. For straight items with square end cuts and without mounting holes, slots or press-fit buttons see RUBBER STRIP. For items with round cross sections see SEAL, NONMETALLIC ROUND SECTION. Excludes GASKET and PACKING, PREFORMED. View more Nonmetallic Strip Seal
May 2023
1
Marketplace 5330-01-622-6274
Request a Quotation from participating marketplace vendors
Related Documents 5330-01-622-6274 3+ Documents (More...)
BUY NE FedMall Updated Every Day 5330-01-622-6274 RQST NE Updated Every Day 5330-01-622-6274 RQST
Updated Every Day 5330-01-622-6274 RQST NE Related Documents 5330-01-622-6274 3+ Documents ( More...
Nonmetallic Strip Seal 5330016226274 day Upgrade your Account Upgrade 5330-01-622-6274Nonmetallic
Strip Seal5330016226274 016226274 596-7551510 RQST NE Updated Every Day 5330-01-622-6274 RQST https/
Nonmetallic Strip Seal 5330016226274 www.nsnlookup.com /fsg-39/fsc-3990/us 3990-01-623 https//www.nsnlookup.com
Restrictions 5330-01-622-6274
5330-01-622-6274 is a Nonmetallic Strip Seal that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5330-01-622-6274
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5330-01-622-6274
- US Navy (N9BZ)
- Effective Date:
- 1 Oct 2013
- Supplementary Collaborators:
- HD
Approved Sources 5330-01-622-6274
- Part Number
- Manufacturer
- Status
- 596-7551510-57
- Manufacturer
- 53711 - Naval Sea Systems Command (Active)
- Primary Buy
- Primary Buy
- B831-9242-57
- 96169 - Electric Boat Corporation (Active)
- Secondary Buy
- Secondary Buy
Datasheet 5330-01-622-6274
- Characteristic
- Specifications
- FIIG
- Specifications
- A032A0
- Material [MATT]
- Rubber Butadiene-Acrylonitrile Class Nbr Overall
- Material Document And Classification [MDCL]
- Mil-R-15624 Cl Iii Mil Spec Single Material Response Overall
- Construction [CQCF]
- One-Piece

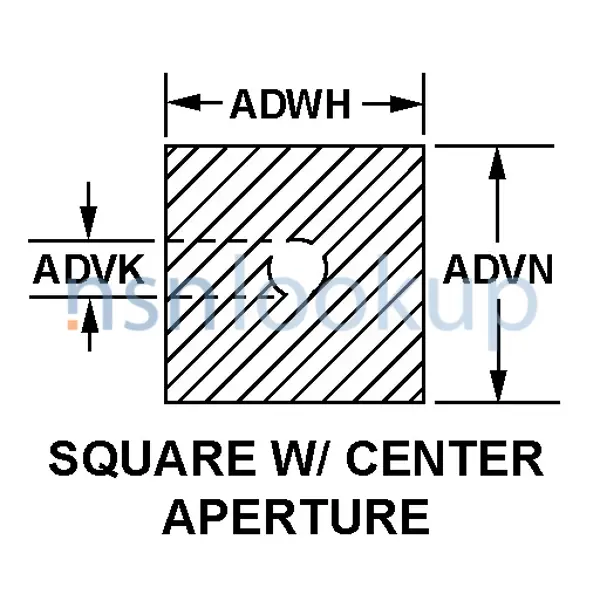

- Cross-Sectional Shape Style [AAGR]
- Square With Center Aperture
- Cross Section Inside Diameter [ADVK]
- 0.531 Inches Nominal
- Cross-Sectional Height [ADVN]
- 1.630 Inches Nominal
- Cross-Sectional Width [ADWH]
- 1.250 Inches Nominal
- Style Designator [STYL]
- Strip
- Overall Length [ABHP]
- 0.750 Inches Nominal
- Special Features [FEAT]
- 45 Degree .03 Chamfer On All Corners
- End Item Identification [AGAV]
- Payload Handling Mechanism
- Part Name Assigned By Controlling Agency [CXCY]
- Pad, Rubber
DLA Procurement Analysis 5330-01-622-6274
Management Data 5330-01-622-6274
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 5330-01-622-6274
Freight Information 5330-01-622-6274
5330-01-622-6274 has freight characteristics managed by the Food and Drug Administration (FDA).It has a National Motor Freight Classification (NMFC) of 194120. A Sub NMFC of Z. It has a NMFC Description of WASHERS/GASKETS/PCKG DVCS NOI. 5330-01-622-6274 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 95100 which rates the freight between FCL and LCL. 5330-01-622-6274 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 596 for ocean manifesting and military sealift. 5330-01-622-6274 is not classified as a special type of cargo when transported by water. 5330-01-622-6274 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 5330-01-622-6274 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- J
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
