5330-01-596-8445
Preformed Packing Back-Up Ring
5330015968445 015968445 N1444-90 8-141
A circular shaped item with an aperture manufactured to predetermined dimensions, constructed with a rectangular cross section that may be solid, with joint, or in a helical form that facilitates spiral wrap installation. It prevents seal extrusion under pressure and is designed to fit on the down-pressure side of a gland groove with a PACKING, PREFORMED or O-RING. View more Preformed Packing Back-Up Ring
January 2023
2

Marketplace 5330-01-596-8445
Request a Quotation from participating marketplace vendors
Related Documents 5330-01-596-8445 1+ Documents (More...)
Preformed Packing Back-Up Ring 5330015968445 United States (US) 4. 5330-01-596-8445 Marketplace Restrictions
RQST NE Updated Every Day 5330-01-596-8445 RQST Updated Every Day 5330-01-596-8445 RQST NE Restrictions
Restrictions 5330-01-596-8445
5330-01-596-8445 is a Preformed Packing Back-Up Ring that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
End Users 5330-01-596-8445
- Spain (YB01)
- Effective Date:
- 1 May 2011
Approved Sources 5330-01-596-8445
- Part Number
- Manufacturer
- Status
- N1444-90 8-141
- Manufacturer
- 02697 - Parker-Hannifin Corp (Active)
- Primary Buy
- Primary Buy
Datasheet 5330-01-596-8445
- Characteristic
- Specifications
- FIIG
- Specifications
- A528B0

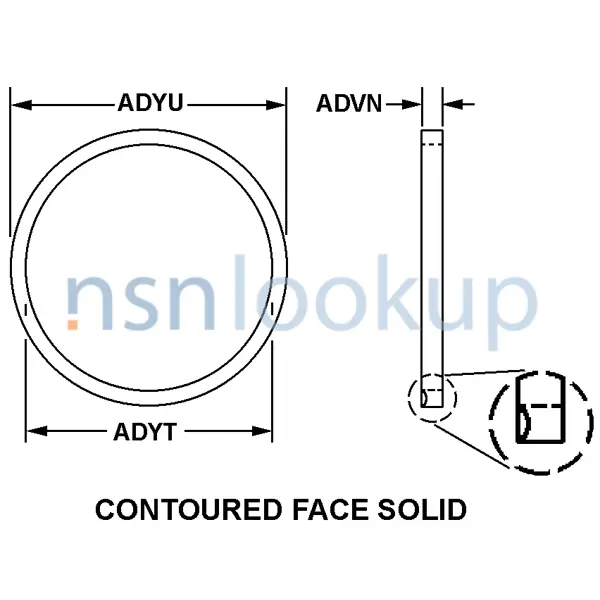

- Center Hole Diameter [ADYT]
- 0.045 Inches Nominal
- Cross-Sectional Shape Style [AAGR]
- Contoured Face Solid
- Cross-Sectional Height [ADVN]
- 0.053 Inches Nominal
- Peripheral Diameter [ADYU]
- 0.086 Inches Nominal
- Temp Rating [ABJH]
- -40.0 Deg Fahrenheit And 250.0 Deg Fahrenheit
NATO Stock Numbers Related to 5330-01-596-8445
Freight Information 5330-01-596-8445
5330-01-596-8445 has freight characteristics.. 5330-01-596-8445 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
