5330-01-590-8783
Seal Retainer
5330015908783 015908783 FTSRC-3-0-3-.360-SC
An item of various shapes and cross sections, usually flanged and designed to fit over a rod, shaft, or the like, for the purpose of encasing and posititioning a SEAL, PLAIN ENCASED or a SEAL, PLAIN. The flange is usually drilled for stud or bolt mounting. Item does not include the seal. Excludes RETAINER, PACKING. View more Seal Retainer
November 2023
1
Marketplace 5330-01-590-8783
Request a Quotation from participating marketplace vendors
Related Documents 5330-01-590-8783 1+ Documents (More...)
United States (US) 4. 5330-01-590-8783 Marketplace Restrictions Approved Sources Datasheet Management
BUY NE FedMall Updated Every Day 5330-01-590-8783 RQST NE Updated Every Day 5330-01-590-8783 RQST
Restrictions 5330-01-590-8783
5330-01-590-8783 is a Seal Retainer that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item has been confirmed as a Critical Munitions List Item or a Sensitive Commerce Control List Item and cannot be in the possession of any party anywhere in the World who is not an authorized NATO Government. Any other possessor of this item should mutilate it now as possession violates international and local laws. This item is a confirmed Commerce Control List Item (CCLI). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5330-01-590-8783
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5330-01-590-8783
- US Air Force (FXGI)
- Effective Date:
- 1 Dec 2010
Approved Sources 5330-01-590-8783
- Part Number
- Manufacturer
- Status
- FTSRC-3-0-3-.360-SC
- Manufacturer
- 51439 - Fatigue Technology Inc (Active)
- Primary Buy
- Primary Buy
Datasheet 5330-01-590-8783
- Characteristic
- Specifications
- FIIG
- Specifications
- A032A0
- Material [MATT]
- Steel Corrosion Resisting Overall
- Construction [CQCF]
- One-Piece
- Style Designator [STYL]

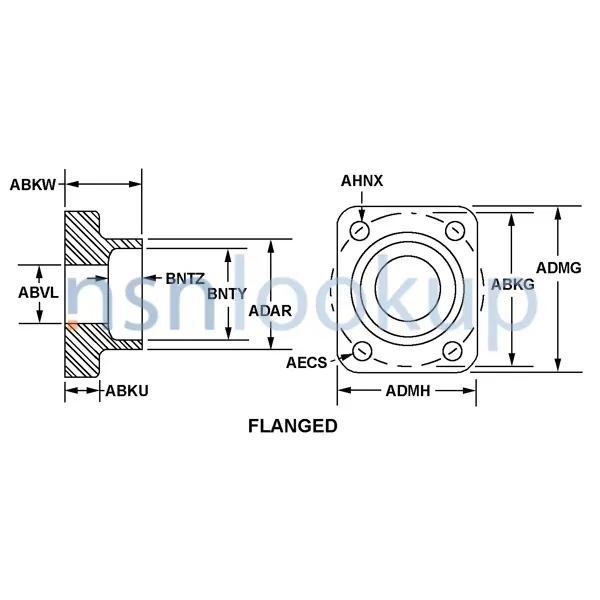

- Flanged
- Aperture Diameter [ABVL]
- 0.238 Inches Maximum
- Special Features [FEAT]
- 0.360 Barrel Grip Length
- End Item Identification [AGAV]
- C-135 Aircraft
Weapon Systems (WSDC) 5330-01-590-8783
DLA Procurement Analysis 5330-01-590-8783
- Last Stock Position:
- 76 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5330-01-590-8783
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- FL
- C-135 STRATOLIFTER
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
NATO Stock Numbers Related to 5330-01-590-8783
Freight Information 5330-01-590-8783
5330-01-590-8783 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 194120. A Sub NMFC of Z. It has a NMFC Description of WASHERS/GASKETS/PCKG DVCS NOI. 5330-01-590-8783 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 95100 which rates the freight between FCL and LCL. 5330-01-590-8783 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 596 for ocean manifesting and military sealift. 5330-01-590-8783 is not classified as a special type of cargo when transported by water. 5330-01-590-8783 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Procurement History 5330-01-590-8783 4 Records
Contracting Technical Data File (CTDF) 5330-01-590-8783 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
