5330-01-529-7470
Packing With Retainer
5330015297470 015297470 BACS11W3
An item composed of a compressible nonmetallic ring which may be loosely fitted into a noncompressible retaining ring, or may be of one piece construction with the compressible ring molded and/or mechanically connected to the retainer. It is specifically designed to form a fluid tight seal when compressed by a packing nut, gland, and the like, between fixed surfaces and a cylindrical item passing through it. Excludes SEAL,PLAIN,ENCASED. View more Packing With Retainer
January 2023
1
Marketplace 5330-01-529-7470
Request a Quotation from participating marketplace vendors
Related Documents 5330-01-529-7470 1+ Documents (More...)
Updated Every Day 5330-01-529-7470 RQST Updated Every Day 5330-01-529-7470 RQST NE Related Documents
5330-01-529-7470 1+ Documents ( More... ) https//www.nsnlookup.com /fsg-53/fsc-5330/us 5330-01-529-7470
Restrictions 5330-01-529-7470
5330-01-529-7470 is a Packing With Retainer that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5330-01-529-7470
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5330-01-529-7470
- NATO Maintenance and Supply Agency (ZX01)
- Effective Date:
- 1 Apr 2005
Approved Sources 5330-01-529-7470
- Part Number
- Manufacturer
- Status
- BACS11W3
- Manufacturer
- 81205 - The Boeing Company (Active)
- Primary Buy
- Primary Buy
Datasheet 5330-01-529-7470
- Characteristic
- Specifications
- FIIG
- Specifications
- A032A0
- End Item Identification [AGAV]
- Airborne Warning And Control System (Awacs)
- Construction [CQCF]
- One-Piece

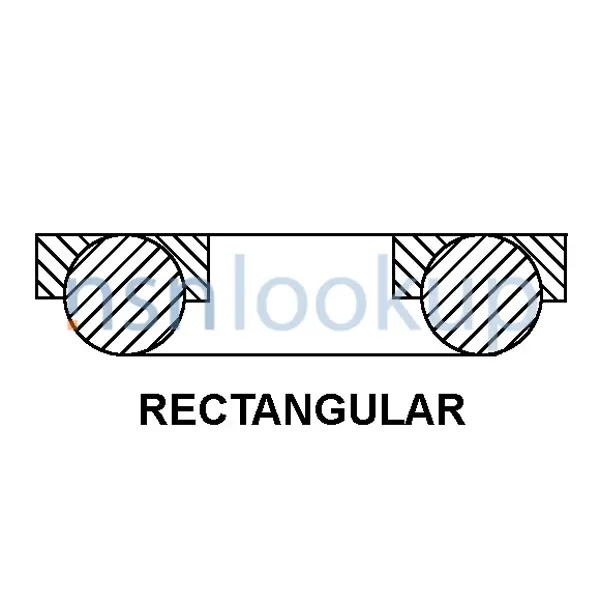

- Cross-Sectional Shape Style [AAGR]
- Rectangular
- Material Document And Classification [MDCL]
- Mil-R-6855, Class 1, Grade 6Mdcl2atjdasae-Ams-S-7952A Assn Std Single Material Response Packing
- Material [MATT]
- Rubber Packing
- Material [MATT]
- Steel Retainer
- Outside Diameter [ABHE]
- 0.458 Inches Minimum And 0.468 Inches Maximum
- Retainer Thickness [ADTJ]
- 0.045 Inches Minimum And 0.055 Inches Maximum
- Packing Ring Cross-Sectional Diameter [ADTK]
- 0.069 Inches Minimum And 0.075 Inches Maximum
- Packing Inside Diameter [AFFX]
- 0.422 Inches Minimum And 0.432 Inches Maximum
- Part Name Assigned By Controlling Agency [CXCY]
- Washer, Sealing
- Surface Treatment Document And Classification [STDC]
- Qq-P-416, Type 1, Class 2 Fed Spec Single Treatment Response Retainer
- Surface Treatment [SFTT]
- Cadmium Retainer
Similar Supply Items to 5330-01-529-7470
Freight Information 5330-01-529-7470
5330-01-529-7470 has freight characteristics managed by the Environmental Protection Agency (EPA).. 5330-01-529-7470 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
