5330-01-507-8282
Seal Retainer
5330015078282 015078282 7249234
An item of various shapes and cross sections, usually flanged and designed to fit over a rod, shaft, or the like, for the purpose of encasing and posititioning a SEAL, PLAIN ENCASED or a SEAL, PLAIN. The flange is usually drilled for stud or bolt mounting. Item does not include the seal. Excludes RETAINER, PACKING. View more Seal Retainer
August 2023
2
Marketplace 5330-01-507-8282
Request a Quotation from participating marketplace vendors
Related Documents 5330-01-507-8282 1+ Documents (More...)
RQST NE Updated Every Day 5330-01-507-8282 RQST Updated Every Day 5330-01-507-8282 RQST NE Related Documents
5330-01-507-8282 1+ Documents ( More... ) https//www.nsnlookup.com /fsg-53/fsc-5330/us 5330-01-507-8282
Restrictions 5330-01-507-8282
5330-01-507-8282 is a Seal Retainer that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5330-01-507-8282
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5330-01-507-8282
- US Navy (N9BZ)
- Effective Date:
- 1 Mar 2005
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- HD
- Republic of Korea (ZH01)
- Effective Date:
- 1 Jul 2009
- Denmark (ZS01)
- Effective Date:
- 1 May 2003
Approved Sources 5330-01-507-8282
- Part Number
- Manufacturer
- Status
- 7249234
- Manufacturer
- 53711 - Naval Sea Systems Command (Active)
- Primary Buy
- Primary Buy

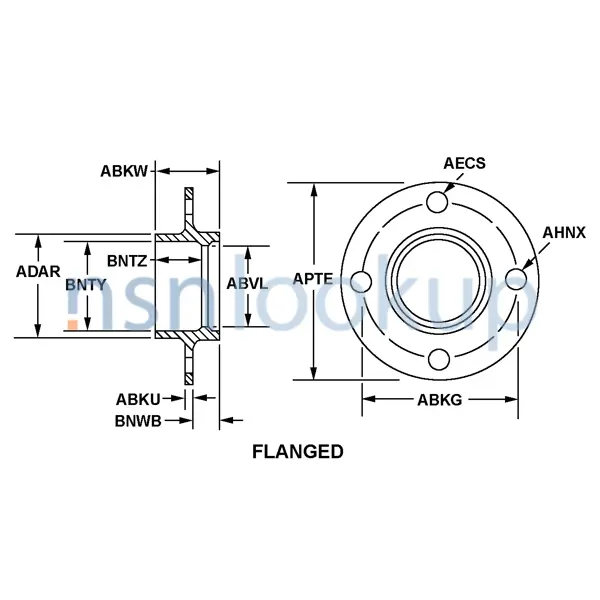

Datasheet 5330-01-507-8282
- Characteristic
- Specifications
- FIIG
- Specifications
- A032A0
- End Item Identification [AGAV]
- Mk45 Mod4
- Body Outside Diameter [ADAR]
- 0.6230 Inches Minimum And 0.6265 Inches Maximum
- Flange Thickness [ABKU]
- 0.250 Inches Nominal
- Material Document And Classification [MDCL]
- Qq-C-502 Fed Spec 1St Material Response Overall
- Material [MATT]
- Copper Overall
- Seal Seat Depth [BNTZ]
- 2.060 Inches Nominal
- Seal Seat Diameter [BNTY]
- 0.460 Inches Minimum And 0.505 Inches Maximum
- Overall Height [ABKW]
- 2.560 Inches Nominal
- Style Designator [STYL]
- Flanged
Weapon Systems (WSDC) 5330-01-507-8282
DLA Procurement Analysis 5330-01-507-8282
Management Data 5330-01-507-8282
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 5330-01-507-8282
Freight Information 5330-01-507-8282
5330-01-507-8282 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 194120. A Sub NMFC of Z. It has a NMFC Description of WASHERS/GASKETS/PCKG DVCS NOI. 5330-01-507-8282 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 95100 which rates the freight between FCL and LCL. 5330-01-507-8282 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 596 for ocean manifesting and military sealift. 5330-01-507-8282 is not classified as a special type of cargo when transported by water. 5330-01-507-8282 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Procurement History 5330-01-507-8282 1 Records
Contracting Technical Data File (CTDF) 5330-01-507-8282 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
