5330-01-477-7614
Nonmetallic Channel Seal
5330014777614 014777614 8100-1251-0285 PT NO 146
An item fabricated from NONMETALLIC CHANNEL. It may be (1) formed to a specific shape with or without joints, (2) a single piece whose ends have been secured together to form a specific shape, or (3) a straight item fabricated to a specific length for a specific application with end cuts or joints. Items except for molded corners, end cut(s), and mounting facilities, such as mounting hole(s), slot(s), press fit buttons, and the like, must be one continuous cross section. It may have fabric, cord, or metal reinforcement. It is specifically designed for use in applications where there is no relative motion between joined parts. Excludes GASKET; GROMMET, NONMETALLIC; and PACKING, PREFORMED. For straight items with square end cuts and without mounting hole(s), slot(s), or press fit buttons, see NONMETALLIC CHANNEL. View more Nonmetallic Channel Seal
May 2023
1
Marketplace 5330-01-477-7614
Request a Quotation from participating marketplace vendors
Related Documents 5330-01-477-7614 1+ Documents (More...)
/fsg-53/fsc-5330/us
BUY NE FedMall Updated Every Day 5330-01-477-7614 RQST NE Updated Every Day 5330-01-477-7614 RQST
Updated Every Day 5330-01-477-7614 RQST NE Related Documents 5330-01-477-7614 1+ Documents ( More...
Restrictions 5330-01-477-7614
5330-01-477-7614 is a Nonmetallic Channel Seal that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5330-01-477-7614
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5330-01-477-7614
- US Navy (N9BZ)
- Effective Date:
- 1 Mar 2005
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- HD
Approved Sources 5330-01-477-7614
- Part Number
- Manufacturer
- Status
- 8100-1251-0285 PT NO 146
- Manufacturer
- 70876 - Bath Iron Works Corporation (Active)
- Primary Buy
- Primary Buy
Datasheet 5330-01-477-7614
- Characteristic
- Specifications
- FIIG
- Specifications
- A032A0
- Material [MATT]
- Rubber Chloroprene Class Cr Overall
- Material Document And Classification [MDCL]
- Mil-Prf-900 Mil Spec Single Material Response Overall
- Hardness Rating [CQFM]
- 45.0 Shore Durometer A Nominal Overall
- Cross-Sectional Shape Style [AAGR]
- Open Channel
- Web Width [ADXH]
- 0.781 Inches Nominal
- Left Side Flange Height [ADXJ]
- 0.750 Inches Nominal
- Right Side Flange Height [ADXK]
- 0.750 Inches Nominal
- Left Side Flange Thickness [ADXL]
- 0.125 Inches Nominal
- Right Side Flange Thickness [ADXM]
- 0.125 Inches Nominal
- Web Thickness [ADXN]
- 0.125 Inches Nominal
- Left Side Flange Thickness At Web [ADXP]
- 0.125 Inches Nominal
- Right Side Flange Thickness At Web [ADXQ]
- 0.125 Inches Nominal
- Left Inside Angle [CQHP]
- 90.0 Degrees Nominal
- Right Inside Angle [CSQD]
- 90.0 Degrees Nominal
- Left Outside Angle [CRSB]
- 90.0 Degrees Nominal
- Right Outside Angle [CTCG]
- 90.0 Degrees Nominal
- Style Designator [STYL]
- Non-Circular
- Aperture Width [ADUE]
- 12.000 Inches Nominal
- Aperture Length [ADUF]
- 14.000 Inches Nominal
- Left Tip Style [CTNK]

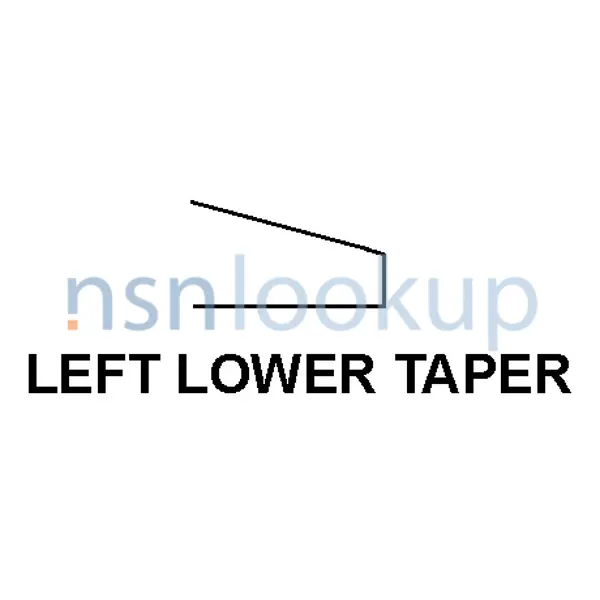

- Left Lower Taper
- Right Tip Relationship With Left Tip [CTNL]
- Not Identical
- Right Tip Style [CTPY]

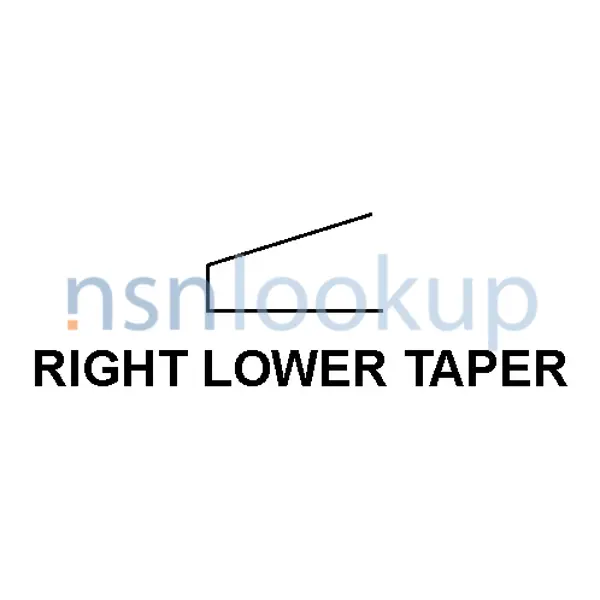

- Right Lower Taper
- Special Features [FEAT]
- 56 In Extrusion
- End Item Identification [AGAV]
- 14 X 12 Fixed Light Assy
- Part Name Assigned By Controlling Agency [CXCY]
- Gasket Glass
