5330-01-461-6589
Packing With Retainer
5330014616589 014616589 D2110-0005-7377 SS 5L.6611.002.65 5L.6611.002.65LV
An item composed of a compressible nonmetallic ring which may be loosely fitted into a noncompressible retaining ring, or may be of one piece construction with the compressible ring molded and/or mechanically connected to the retainer. It is specifically designed to form a fluid tight seal when compressed by a packing nut, gland, and the like, between fixed surfaces and a cylindrical item passing through it. Excludes SEAL,PLAIN,ENCASED. View more Packing With Retainer
January 2023
3
Marketplace 5330-01-461-6589
Request a Quotation from participating marketplace vendors
Related Documents 5330-01-461-6589 3+ Documents (More...)
RQST NE Updated Every Day 5330-01-461-6589 RQST Updated Every Day 5330-01-461-6589 RQST NE Related Documents
5330-01-461-6589 3+ Documents ( More... ) https//www.nsnlookup.com /fsg-53/fsc-5330/us 5330-01-461-6589
Packing With Retainer 5330014616589 014616589 $1 a day Upgrade your Account Upgrade 5330-01-461
-6589Packing With Retainer5330014616589 014616589 D2110 www.nsnlookup.com /fsg-53/fsc-5330/us 5330-01
Packing With Retainer 5330014616589 014616589 $1 a day Upgrade your Account Upgrade 5330-01-461
-6589Packing With Retainer5330014616589 014616589 D2110 www.nsnlookup.com /fsg-53/fsc-5330/us 5330-01
Restrictions 5330-01-461-6589
5330-01-461-6589 is a Packing With Retainer that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5330-01-461-6589
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5330-01-461-6589
- Germany (ZG01)
- Effective Date:
- 1 Dec 1998
Approved Sources 5330-01-461-6589
- Part Number
- Manufacturer
- Status
- D2110-0005-7377 SS
- Manufacturer
- 25184 - Parker Hannifin Corporation (Active)
- Primary Buy
- Primary Buy
- 5L.6611.002.65
- D6513 - Elbit Systems Deutschland Gmbh & Co. (Active)
- Secondary Buy
- Secondary Buy
- 5L.6611.002.65LV
- D1901 - Hensoldt Sensors Gmbh (Active)
- Secondary Buy
- Secondary Buy
- 5L.6611.002.65
- D1901 - Hensoldt Sensors Gmbh (Active)
- Secondary Buy
- Secondary Buy
Datasheet 5330-01-461-6589
- Characteristic
- Specifications
- FIIG
- Specifications
- A032A0
- Color [HUES]
- Black
- Construction [CQCF]
- One-Piece

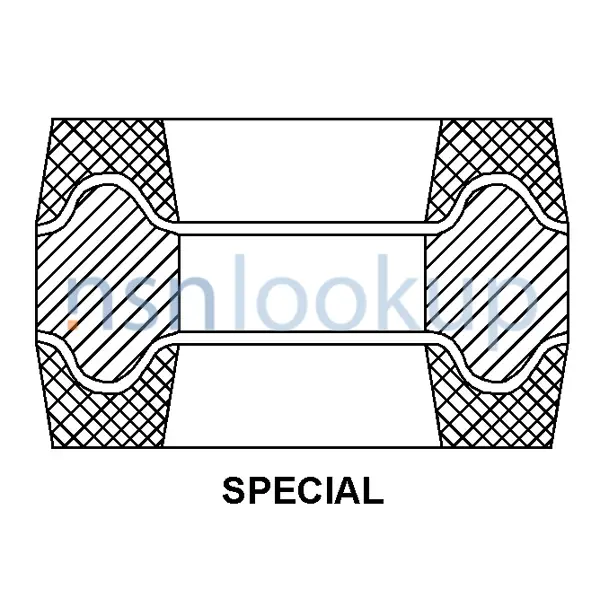

- Cross-Sectional Shape Style [AAGR]
- Special
- Material Document And Classification [MDCL]
- Mil-S-5059 Mil Spec All Material Responses Retainer
- Material [MATT]
- Steel Comp 302 Retainer Or Steel Comp 304 Retainer
- Outside Diameter [ABHE]
- 0.769 Inches Nominal
- Retainer Inside Diameter [AFFW]
- 0.538 Inches Nominal
- Retainer Thickness [ADTJ]
- 0.075 Inches Nominal
- Packing Inside Diameter [AFFX]
- 0.467 Inches Nominal
- Special Features [FEAT]
- Rated Pressure 0 To 3000 Pounds Per Square In.; Burst Pressure 12000 Pounds Per Square In.; Service Temp. Minus 40 Degf To 250 Degf
- Specification/Standard Data [ZZZK]
- Nas1523 Professional/Industrial Association Standard
- Surface Treatment Document And Classification [STDC]
- Qq-P-35 Fed Spec All Treatment Responses Retainer
- Surface Treatment [SFTT]
- Passivate Retainer
Similar Supply Items to 5330-01-461-6589
Freight Information 5330-01-461-6589
5330-01-461-6589 has freight characteristics.. 5330-01-461-6589 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
