5330-01-444-2367
Gasket
5330014442367 014442367 77C953825 77C953825P1
A deformable material which prevents the passage of matter through the joint formed when two faces are joined. It may be metallic or nonmetallic, lubricated or impregnated, solid or hollow cross section. It may be made to any predetermined dimension and shape. Excludes flat disks, items made of felt material and items having joints. For round metal and plastic items with an aperture and a solid rectangular cross section, see WASHER, FLAT; SHIM; BEARING, WASHER, THRUST; and SPACER RING. Excludes DISK, VALVE; SEAL, NONMETALLIC ANGLE; SEAL, NONMETALLIC CHANNEL; SEAL, NONMETALLIC SPECIAL SHAPED SECTION; SHIELDING GASKET, ELECTRONIC; and RING, SEALING JAR. View more Gasket
May 2023
1
Marketplace 5330-01-444-2367
Request a Quotation from participating marketplace vendors
Related Documents 5330-01-444-2367 2+ Documents (More...)
BUY NE FedMall Updated Every Day 5330-01-444-2367 RQST NE Updated Every Day 5330-01-444-2367 RQST
Updated Every Day 5330-01-444-2367 RQST NE Related Documents 5330-01-444-2367 2+ Documents ( More...
Gasket 5330014442367 014442367,77C953825 AAUB]0.140 Inches Minimum And 0.160 Inches MaximumMaterial
Restrictions 5330-01-444-2367
5330-01-444-2367 is a Gasket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is a US Munitions List Item and must be mutilated to scrap. This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
End Users 5330-01-444-2367
- US Navy (N9BZ)
- Effective Date:
- 1 Mar 2005
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- HDJB
Approved Sources 5330-01-444-2367
- Part Number
- Manufacturer
- Status
- 77C953825
- Manufacturer
- 03538 - Lockheed Martin Corporation (Active)
- Incomplete Reference
- Incomplete Reference
- 77C953825P1
- 03538 - Lockheed Martin Corporation (Active)
- Primary Buy
- Primary Buy

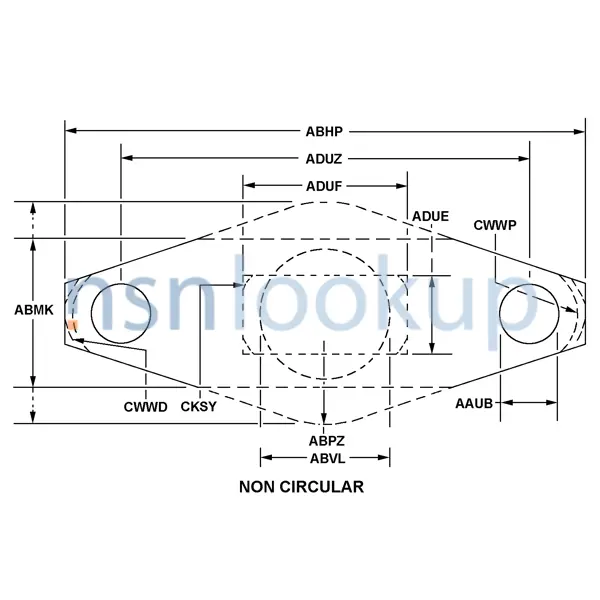

Datasheet 5330-01-444-2367
- Characteristic
- Specifications
- FIIG
- Specifications
- A032A0
- Aperture Corner Radius [CKSY]
- 0.030 Inches Maximum
- Aperture Width [ADUE]
- 0.520 Inches Nominal
- Center To Center Distance Between Bolt Holes Along Length [ADUZ]
- 1.000 Inches Nominal
- Cross-Sectional Shape Style [AAGR]
- Solid Single Or Composition
- Cross-Sectional Thickness [ADVM]
- 0.020 Inches Nominal
- End Radius [ABPZ]
- 0.560 Inches Nominal
- Hole Diameter [AAUB]
- 0.140 Inches Minimum And 0.160 Inches Maximum
- Material Document And Classification [MDCL]
- Zz-R-765, 15-003A4 Fed Spec Single Material Response Overall
- Material [MATT]
- Rubber Silicone Class Q Overall
- Side Radius [CWWP]
- 0.280 Inches Nominal
- Overall Length [ABHP]
- 1.570 Inches Nominal
- Style Designator [STYL]
- Non-Circular
DLA Procurement Analysis 5330-01-444-2367
Management Data 5330-01-444-2367
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 5330-01-444-2367
Freight Information 5330-01-444-2367
5330-01-444-2367 has freight characteristics managed by the Southwestern Power Administration.It has a National Motor Freight Classification (NMFC) of 194120. A Sub NMFC of Z. It has a NMFC Description of WASHERS/GASKETS/PCKG DVCS NOI. 5330-01-444-2367 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 95100 which rates the freight between FCL and LCL. 5330-01-444-2367 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 596 for ocean manifesting and military sealift. 5330-01-444-2367 is not classified as a special type of cargo when transported by water. 5330-01-444-2367 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 5330-01-444-2367 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- Z
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
