5330-01-420-0766
Nonmetallic Special Shaped Section Seal
5330014200766 014200766 A05372.08307 13079857-2 A5372
An item fabricated from NONMETALLIC SPECIAL SHAPED SECTION. It may be (1) formed to a specific shape with or without joints, (2) a single piece whose ends have been secured together to form a specific shape, or (3) a straight item fabricated to a specific length for a specific application with end cuts or joints. Items, except for molded corners, slot(s), press fit buttons, and the like must be of one continuous cross section. It is specifically designed for use in applications where there is no relative motion between joined parts. Excludes BUSHING, NONMETALLIC; PACKING, PERFORMED; PAD, CUSHIONING;and SEAL, PLAIN. For straight items with square end cuts and without mounting hole(s), slot(s), or press fit buttons, see NONMETALLIC SPECIAL SHAPED SECTION. View more Nonmetallic Special Shaped Section Seal
May 2023
6
Marketplace 5330-01-420-0766
Request a Quotation from participating marketplace vendors
Related Documents 5330-01-420-0766 5+ Documents (More...)
(Identification) 1/2 NSN 5330-01-420-0766 (Identification) 2/2 - - 1.
RQST NE Updated Every Day 5330-01-420-0766 RQST Updated Every Day 5330-01-420-0766 RQST NE Related Documents
/fsg-53/fsc-5330/fr
More... ) https//www.nsnlookup.com /fsg-53/fsc-5330/fr 5330-14-352-6416 Gasket 5330143526416143526416,A5372
-5 A5372-5 A deformable material which prevents the passage of matter through the joint formed when two
www.nsnlookup.com /fsg-66/fsc-6685/us 6685-00-718-0906 Pressure Transmitter 6685007180906007180906 A5372
$1 a day Upgrade your Account Upgrade 6685-00-718- 0906Pressure Transmitter6685007180906 007180906 A5372
Shaped Section Seal Upgrade 5330-01-420-0766Nonmetallic Special Shaped Section Seal5330014200766 014200766
A05372.08307 13079857 9 DAC 5 A5372 83259 - Parker-Hannifin Corporation (Active) Canceled/Obsolete RNCC
/fsg-47/fsc-4730/fr
$1 a day Upgrade your Account Upgrade 6685-00-718-0906Pressure Transmitter6685007180906 007180906 A5372
www.nsnlookup.com /fsg-66/fsc-6685/us 6685-00-718-0906 Pressure Transmitter 6685007180906007180906 A5372
Restrictions 5330-01-420-0766
5330-01-420-0766 is a Nonmetallic Special Shaped Section Seal that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5330-01-420-0766
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5330-01-420-0766
- US Army (A919)
- Effective Date:
- 1 Mar 2005
- Former MOE Rule:
- A187
- Supplementary Receivers:
- CT
- Singapore (YJ01)
- Effective Date:
- 1 Jul 2001
- Netherlands (ZN01)
- Effective Date:
- 1 Mar 2000
- Greece (ZU01)
- Effective Date:
- 1 May 2006
Approved Sources 5330-01-420-0766
- Part Number
- Manufacturer
- Status
- A05372.08307
- Manufacturer
- 83259 - Parker-Hannifin Corporation (Active)
- Primary Buy
- Primary Buy
- A5372
- 66001 - Parker Hannifin Corporation Div (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- A5372
- 83259 - Parker-Hannifin Corporation (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 13079857-2
- 34860 - Northrop Grumman Systems Corporation (Active)
- Vendor Drawing
- Vendor Drawing
Datasheet 5330-01-420-0766
- Characteristic
- Specifications
- FIIG
- Specifications
- A032A0
- Aperture Length [ADUF]
- 6.219 Inches Nominal
- Aperture Width [ADUE]
- 7.688 Inches Nominal
- Construction [CQCF]
- One-Piece
- Cross-Sectional Height [ADVN]
- 6.324 Inches Minimum And 6.394 Inches Maximum
- Cross-Sectional Shape Style [AAGR]
- Special
- Cross-Sectional Width [ADWH]
- 7.793 Inches Minimum And 7.863 Inches Maximum
- Hardness Rating [CQFM]
- 55.0 Shore Durometer A Minimum Overall And 75.0 Shore Durometer A Maximum Overall
- Material Document And Classification [MDCL]
- Mil-G-21569, Cl 1 Mil Spec Single Material Response Overall
- Material [MATT]
- Rubber Butadiene-Acrylonitrile Class Nbr Overall
- Outside Corner Radius [ADPW]
- 0.060 Inches Nominal

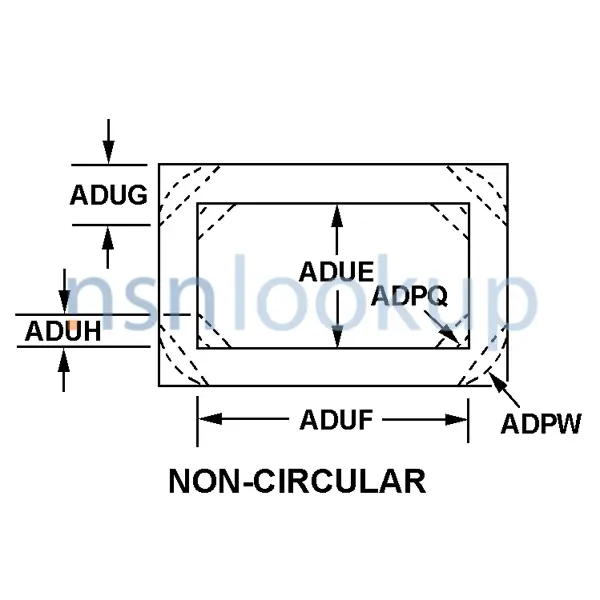

- Style Designator [STYL]
- Non-Circular
- Temp Rating [ABJH]
- -40.0 Deg Fahrenheit And 250.0 Deg Fahrenheit
DLA Procurement Analysis 5330-01-420-0766
Management Data 5330-01-420-0766
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
NATO Stock Numbers Related to 5330-01-420-0766
Freight Information 5330-01-420-0766
5330-01-420-0766 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 194050. A Sub NMFC of X. It has a NMFC Description of GASKETS/RINGS PLUMBING FIXTURES. 5330-01-420-0766 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 78100 which rates the freight between FCL and LCL. 5330-01-420-0766 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 596 for ocean manifesting and military sealift. 5330-01-420-0766 is not classified as a special type of cargo when transported by water. 5330-01-420-0766 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5330-01-420-0766
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Non-Metallic Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- ASTM-D4727, Fiberboard used as a Stiffener on Both Sides of Item
- --
- MIL-DTL-117, Type II, Class C, Style 1, Heavy Duty, Waterproof, Greaseproof, Opaque Bag
- Type I, shelf life
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Contracting Technical Data File (CTDF) 5330-01-420-0766 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
