5330-01-390-4718

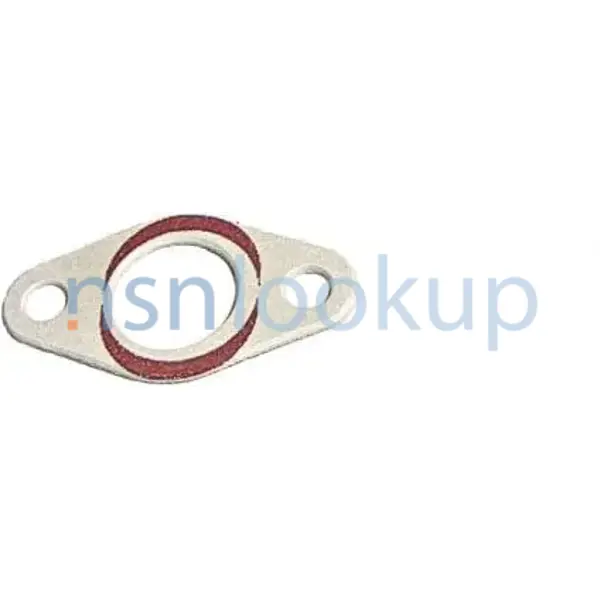

Gasket

5330013904718 013904718 23505526 25103 5123812 1DD595 K 5123812 NON-ASBESTOS 5123812 NON-ASBESTOS 5330008921764 25-103

A deformable material which prevents the passage of matter through the joint formed when two faces are joined. It may be metallic or nonmetallic, lubricated or impregnated, solid or hollow cross section. It may be made to any predetermined dimension and shape. Excludes flat disks, items made of felt material and items having joints. For round metal and plastic items with an aperture and a solid rectangular cross section, see WASHER, FLAT; SHIM; BEARING, WASHER, THRUST; and SPACER RING. Excludes DISK, VALVE; SEAL, NONMETALLIC ANGLE; SEAL, NONMETALLIC CHANNEL; SEAL, NONMETALLIC SPECIAL SHAPED SECTION; SHIELDING GASKET, ELECTRONIC; and RING, SEALING JAR. View more Gasket

Managed by United States

NSN Created on 20 May 1994

Data Last Changed
January 2024

NATO Update Count
46

NATO Data Quality

AAGR Style F33 for 5330-01-390-4718 1/2 — NSN 5330-01-390-4718 (Identification) 1/2

STYL Style B13A for 5330-01-390-4718 2/2 — NSN 5330-01-390-4718 (Identification) 2/2

Marketplace 5330-01-390-4718

Need Help?
Request a Quotation from participating marketplace vendors

Subscribe to View Vendor Details...

25103 GASKET 317 EA NS

Subscribe to View Vendor Details...

5123812NON-ASBESTOS GASKET 18 EA NS

Subscribe to View Vendor Details...

Updated 16 Days Ago

5123812 GASKET 3 EA NS

Subscribe to View Vendor Details...

25103 GASKET RQST NS

Subscribe to View Vendor Details...

25103 GASKET 90 EA NS

Subscribe to View Vendor Details...

5123812 GASKET 63 EA NS

Subscribe to View Vendor Details...

5123812 GASKET 52 EA NS

Subscribe to View Vendor Details...

2510-3 GASKET 1 EA NS

Subscribe to View Vendor Details...

25103 GASKET 1 EA NS

Subscribe to View Vendor Details...

5123812 GASKET 9 EA NS

Updated Every Day

5330-01-390-4718 RQST NE

Updated Every Day

5330-01-390-4718 RQST

Updated Every Day

5330-01-390-4718 RQST NE

Restrictions 5330-01-390-4718

5330-01-390-4718 is a Gasket that does not have a nuclear hardened feature, but does have another critical feature or features such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.

Import and Export 5330-01-390-4718

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 5330-01-390-4718

US Army (A919)
Effective Date:: 1 Apr 2006
Former MOE Rule:: A187
Supplementary Receivers:: AZBF; AMC 3 AMSC L IMC Z IMCACTY CD

US Coast Guard (C918)
Effective Date:: 1 Apr 2006
Former MOE Rule:: C004; AMC 3 AMSC L

US Air Force (FXGI)
Effective Date:: 1 Apr 2006
Former MOE Rule:: FXKZ; AMC 3 AMSC L IMC Z IMCACTY SX

US Marine Corps (MC47)
Effective Date:: 29 May 2008
Former MOE Rule:: MC10; AMC 3 AMSC L IMC Z IMCACTY PA

US Navy (N9BZ)
Effective Date:: 1 Apr 2006
Former MOE Rule:: N9ZD
Supplementary Collaborators:: GTKEJNHXHD; AMC 3 AMSC L IMC Z IMCACTY GH

Austria (WB01)
Effective Date:: 1 Dec 2006

Brazil (YA01)
Effective Date:: 1 Dec 2001

Spain (YB01)
Effective Date:: 1 Dec 2002

Morocco (YP01)
Effective Date:: 1 Nov 2008

Malaysia (YW01)
Effective Date:: 1 May 2000

Belgium (ZB01)
Effective Date:: 1 Nov 1998

France (ZF01)
Effective Date:: 1 Dec 1999

Germany (ZG01)
Effective Date:: 1 Oct 1996

United Kingdom (ZK01)
Effective Date:: 1 Apr 1997

Portugal (ZP01)
Effective Date:: 1 May 1998

Norway (ZT01)
Effective Date:: 1 Oct 2012

Greece (ZU01)
Effective Date:: 1 Jun 2005

Turkey (ZW01)
Effective Date:: 1 Dec 2005

Approved Sources 5330-01-390-4718

Part Number
Manufacturer
Status
5123812: 72582 - Rolls-Royce Solutions America Inc (Active); Primary Buy; RNCC 3 RNVC 2 DAC A
1DD595: 75Q65 - Oshkosh Defense Llc (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
K 5123812 NON-ASBESTOS: 80201 - Skf Usa Inc. (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
5123812 NON-ASBESTOS: 72582 - Rolls-Royce Solutions America Inc (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC A
1DD595: 45152 - Oshkosh Corp (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
K 5123812 NON-ASBESTOS: 18954 - Korody-Colyer Corp A Cr Industries (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
5330013904718: SCY13 - E.C.A Etablissement (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 9
25-103: SCY13 - E.C.A Etablissement (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 9
5330008921764: SCY13 - E.C.A Etablissement (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 9
5330008921764: A00AM - E.C.A Etablissement Central Des (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9
5330013904718: A00AM - E.C.A Etablissement Central Des (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9
25-103: A00AM - E.C.A Etablissement Central Des (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9
23505526: D9182 - Zf Industrieantriebe Witten Gmbh (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
25103: 79150 - Dana Automotive Systems Group, Llc (Active); Advisory Reference; RNCC C RNVC 1 DAC 5

Datasheet 5330-01-390-4718

Characteristic
Specifications
FIIG: A032A0
End Item Identification [AGAV]: Nsn 2320-01-304-2277 Pls (Palletized Loading System); Hemtt Family (Heavy Expanded Mobility Tactical Trucks)
Aperture Diameter [ABVL]: 0.844 Inches Nominal
Bolt Circle Diameter [ABKG]: 1.688 Inches Nominal
Bolt Hole Quantity [AECS]: 2
Criticality Code Justification [CRTL]: Feat
Cross-Sectional Shape Style [AAGR]: Solid Single Or Composition
Cross-Sectional Thickness [ADVM]: 0.031 Inches Nominal
Environmental Attribute Code [ENAC]: Asbestos Alternative Products
Hole Diameter [AAUB]: 0.281 Inches Nominal
Material [MATT]: Rubber Butadiene-Acrylonitrile Class Nbr Overall And Fiber Nonasbestos Overall
Outside Corner Radius [ADPW]: 0.328 Inches Nominal
Side Radius From Gasket Center [ADVC]: 0.609 Inches Nominal
Overall Width [ABMK]: 2.328 Inches Nominal
Special Features [FEAT]: Weapon System Essential
Style Designator [STYL]: Non-Circular

Weapon Systems (WSDC) 5330-01-390-4718

Subscribe
View WSDC

Subscribe to View Weapon System Codes...
