5330-01-362-4479
Packing Retainer
5330013624479 013624479 A78545-110P-99 S34581-110P99
An item designed to fit over a packing gland by mating with a surface of a second part which together will retain into a narrow groove or confined space the PACKING, PREFORMED or O-RING, or an item designed to fit over a rod or shaft, to mate with a stuffing box to confine PACKING MATERIAL. It may function as a static or dynamic seal retainer with the packing located on, around, or in the centerline direction of the rod or shaft axis. It may have holes or joints for mounting, be threaded or unthreaded. See also PACKING NUT and PACKING NUT, STUFFING TUBE. View more Packing Retainer
January 2023
5
Marketplace 5330-01-362-4479
Request a Quotation from participating marketplace vendors
Related Documents 5330-01-362-4479 5+ Documents (More...)
RQST NE Updated Every Day 5330-01-362-4479 RQST Updated Every Day 5330-01-362-4479 RQST NE Related Documents
5330-01-362-4479 4+ Documents ( More... ) https//www.nsnlookup.com /fsg-53/fsc-5330/us 5330-01-362-4479
Packing Retainer 5330013624479 013624479 -53/fsc-5330/us 5330-01-361-1165 Packing Retainer 5330013611165
Restrictions 5330-01-362-4479
5330-01-362-4479 is a Packing Retainer that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5330-01-362-4479
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5330-01-362-4479
- US Air Force (FNN5)
- Effective Date:
- 1 Jul 2003
- Former MOE Rule:
- FXKZ
Approved Sources 5330-01-362-4479
- Part Number
- Manufacturer
- Status
- S34581-110P99
- Manufacturer
- 97820 - Shamban Polymer Tech Group (Replaced)
- Original Design
- Original Design
- A78545-110P-99
- 94697 - Moog Inc (Active)
- Related Drawing
- Related Drawing
- S34581-110P99
- 09257 - Trelleborg Sealing Solutions Us, (Active)
- Advisory Reference
- Advisory Reference
Datasheet 5330-01-362-4479
- Characteristic
- Specifications
- FIIG
- Specifications
- A032A0

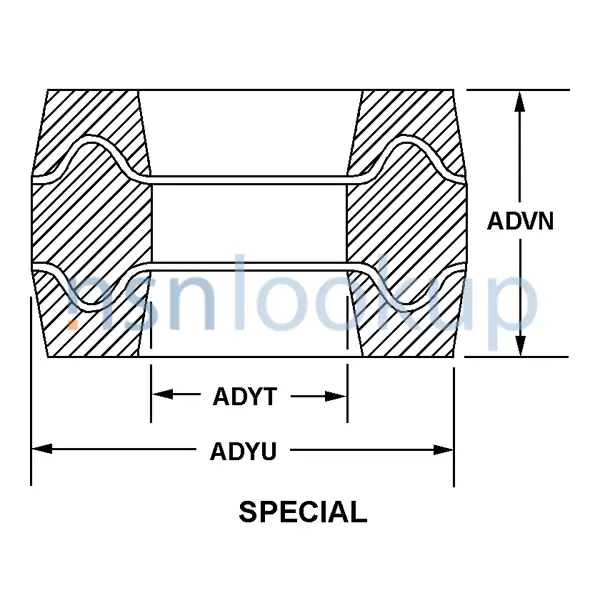

- Center Hole Diameter [ADYT]
- 0.371 Inches Minimum And 0.373 Inches Maximum
- Cross-Sectional Shape Style [AAGR]
- Special
- Cross-Sectional Height [ADVN]
- 0.183 Inches Minimum And 0.193 Inches Maximum
- Material Document And Classification [MDCL]
- Mil-P-83461 Mil Spec Single Material Response Packingturcon 99 Mfr Ref Single Material Response Retainer
- Material [MATT]
- Rubber Butadiene-Acrylonitrile Class Nbr Packingplastic Polytetrafluoroethylene Retainer
- Peripheral Diameter [ADYU]
- 0.551 Inches Minimum And 0.553 Inches Maximum
DLA Procurement Analysis 5330-01-362-4479
Management Data 5330-01-362-4479
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Apr 2014
- Department of the Air Force (DF)
- EA
- Subscribe
- EA
Air Force
- Budget:
- S
- 57X3010 - Aircraft Replenishment Spares
- Aggregation Code:
- BQ
- B-2 TSSP, NORTHROP GRUMMAN
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Similar Supply Items to 5330-01-362-4479
Freight Information 5330-01-362-4479
5330-01-362-4479 has freight characteristics managed by the Southwestern Power Administration.. 5330-01-362-4479 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
Contracting Technical Data File (CTDF) 5330-01-362-4479 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
