5330-01-359-6955
Plain Encased Seal
5330013596955 013596955 33807 174770
A pliable rubber, felt, leather, or composition ring-shaped element, split or solid; with or without spring or spreader, having a metal shell on all or a portion of at least two of the outer surfaces. It may be designed to be either bolt mounted or pressmounted between fixed and moveable parts to form a tight and effective seal by the pressure of the spring or spreader or the resiliency inherent in the element material. Excludes PACKING WITH RETAINER. View more Plain Encased Seal
November 2023
4
Marketplace 5330-01-359-6955
Request a Quotation from participating marketplace vendors
Related Documents 5330-01-359-6955 5+ Documents (More...)

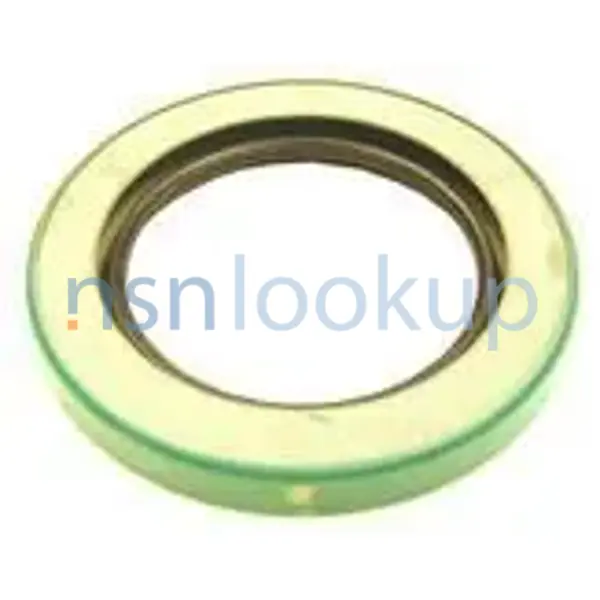

Photo 1/3 NSN 5330-01-359-6955 (Identification) 2/3 NSN 5330-01-359-6955 (Identification) 3/3 -
Day 5330-01-359-6955 RQST Updated Every Day 5330-01-359-6955 RQST NE Related Documents 5330-01-359-6955
//www.nsnlookup.com /fsg-65/fsc-6515/de 6515-12-359-5570 Bone Elevator And Retractor 6515123595570 33807
Plain Encased Seal 5330013596955 013596955 Bone Elevator And Retractor 6515123595570 /www.nsnlookup.com
how to enable JavaScript in your web browser . 2925-15-147-4474Candeletta2925151474474 151474474 174770
Plain Encased Seal 5330013596955 013596955 Bone Elevator And Retractor 6515123595570 33807 https
-630-5519Common Infrastructure6665016305519 016305519 013596955 33807 day Upgrade your Account https/
day Upgrade your Account Upgrade 6665-01-630-5519Common 5-15-33807 https//www.nsnlookup.com /fsg-43/
how to enable JavaScript in your web browser . 2925-15-147-4474Candeletta2925151474474 151474474 174770
https//www.nsnlookup.com /fsg-53/fsc-5330/us 5330-01-359-6955 Plain Encased Seal 5330013596955 013596955
Restrictions 5330-01-359-6955
5330-01-359-6955 is a Plain Encased Seal that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5330-01-359-6955
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5330-01-359-6955
- US Navy (N9BZ)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- GTHD
Approved Sources 5330-01-359-6955
- Part Number
- Manufacturer
- Status
- 33807
- Manufacturer
- 80201 - Skf Usa Inc. (Active)
- Primary Buy
- Primary Buy
- 174770
- 21877 - Northrop Grumman Systems Corporation (Active)
- Vendor Drawing
- Vendor Drawing
Datasheet 5330-01-359-6955
- Characteristic
- Specifications
- FIIG
- Specifications
- A032A0
- Accommodated Shaft Diameter [ABVM]
- 3.375 Inches Nominal
- Case Style [BHHL]
- Recessed
- Hardness Rating [CQFM]
- 70.0 Shore Durometer A Minimum Sealing Element And 80.0 Shore Durometer A Maximum Sealing Element
- Housing Bore Diameter [CPCW]
- 4.6845 Inches Minimum And 4.6875 Inches Maximum
- Material Document And Classification [MDCL]
- Sae-J113 Assn Std Single Material Response Spring
- Material [MATT]
- Rubber Butadiene-Acrylonitrile Class Nbr Sealing Element
- Material [MATT]
- Steel Case
- Material [MATT]
- Steel Spring
- Outside Diameter [ABHE]
- 4.691 Inches Nominal
- Material Document And Classification [MDCL]
- Astm-D2000 Assn Std Single Material Response Sealing Element
- Seal Width [ADUC]
- 0.423 Inches Minimum And 0.453 Inches Maximum
- Sealing Element Style [CTQC]
- Angular
Weapon Systems (WSDC) 5330-01-359-6955
DLA Procurement Analysis 5330-01-359-6955
- Last Stock Position:
- 46 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5330-01-359-6955
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5330-01-359-6955
Freight Information 5330-01-359-6955
5330-01-359-6955 has freight characteristics managed by the Southwestern Power Administration.It has a National Motor Freight Classification (NMFC) of 194050. A Sub NMFC of X. It has a NMFC Description of GASKETS/RINGS PLUMBING FIXTURES. 5330-01-359-6955 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 78100 which rates the freight between FCL and LCL. 5330-01-359-6955 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 596 for ocean manifesting and military sealift. 5330-01-359-6955 is not classified as a special type of cargo when transported by water. 5330-01-359-6955 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5330-01-359-6955
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Non-Metallic Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- MIL-DTL-117, Type III, Class C, Style 1, Medium Duty, Waterproof, Greaseproof, Opaque Bag
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Contracting Technical Data File (CTDF) 5330-01-359-6955 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
