5330-01-326-0792
Gasket
5330013260792 013260792 4075433 4075430 4075431 11156 69082 5330PL0673235
A deformable material which prevents the passage of matter through the joint formed when two faces are joined. It may be metallic or nonmetallic, lubricated or impregnated, solid or hollow cross section. It may be made to any predetermined dimension and shape. Excludes flat disks, items made of felt material and items having joints. For round metal and plastic items with an aperture and a solid rectangular cross section, see WASHER, FLAT; SHIM; BEARING, WASHER, THRUST; and SPACER RING. Excludes DISK, VALVE; SEAL, NONMETALLIC ANGLE; SEAL, NONMETALLIC CHANNEL; SEAL, NONMETALLIC SPECIAL SHAPED SECTION; SHIELDING GASKET, ELECTRONIC; and RING, SEALING JAR. View more Gasket
November 2023
11
Marketplace 5330-01-326-0792
Request a Quotation from participating marketplace vendors
Related Documents 5330-01-326-0792 5+ Documents (More...)
/fsg-53/fsc-5330/us
(Identification) 1/2 NSN 5330-01-326-0792 (Identification) 2/2 - - 1.
NE Updated Every Day 5330-01-326-0792 RQST Updated Every Day 5330-01-326-0792 RQST NE Related Documents
Tete De Sertissage 3456144073550144073550 Tumbler3510014646504 014646504 26-60182 26-69082 -765 -8170
United Kingdom (ZK) Approved Sources 5998-99-765-8170 Part NumberManufacturerStatus419/1/69082 https
765-8170 United Kingdom (ZK) Approved Sources 5998-99-765-8170 Part NumberManufacturerStatus419 /1/69082
-14-407-3550 Tete De Sertissage 3456144073550 144073550 Tumbler3510014646504 014646504 26-6018226-69082
enable JavaScript in your web browser . 3456-14-407-3550Tete De Sertissage3456144073550 144073550 69082
69082 Request a Quotation from participating https//www.nsnlookup.com https//www.nsnlookup.com /fsg-
JavaScript in your web browser . 5998-99-765-8170Circuit Card Assembly5998997658170 997658170419/1/69082
JavaScript in your web browser . 5998-99-765-8170Circuit Card Assembly5998997658170 997658170419/1/69082
Restrictions 5330-01-326-0792
5330-01-326-0792 is a Gasket that is an aviation critical safety item or flight safety critical aircraft part. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5330-01-326-0792
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5330-01-326-0792
- US Air Force (FXGI)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- FXKZ
- US Navy (N9BZ)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GG
- Poland (WP01)
- Effective Date:
- 1 Aug 2007
- Singapore (YJ01)
- Effective Date:
- 1 Jun 1996
- Republic of Korea (ZH01)
- Effective Date:
- 1 Mar 1999
- Greece (ZU01)
- Effective Date:
- 1 May 2008
Approved Sources 5330-01-326-0792
- Part Number
- Manufacturer
- Status
- 4075433
- Manufacturer
- 77445 - Rtx Corporation (Active)
- Source Control
- Source Control
- 4075430
- 04319 - Parker-Hannifin Corporation (Active)
- Primary Buy
- Primary Buy
- 4075430
- 77445 - Rtx Corporation (Active)
- Original Design
- Original Design
- 4075431
- 15284 - Eaton Corporation (Active)
- Secondary Buy
- Secondary Buy
- 11156
- 15284 - Eaton Corporation (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 69082
- 04319 - Parker-Hannifin Corporation (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 4075431
- 77445 - Rtx Corporation (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 5330PL0673235
- 9009H - Jednolity Indeks Materialowy - (Active)
- NATO Reference
- NATO Reference
Datasheet 5330-01-326-0792
- Characteristic
- Specifications
- FIIG
- Specifications
- A032A0
- End Item Identification [AGAV]
- F100pw0229 Engine
- Aperture Diameter [ABVL]
- 23.957 Inches Nominal

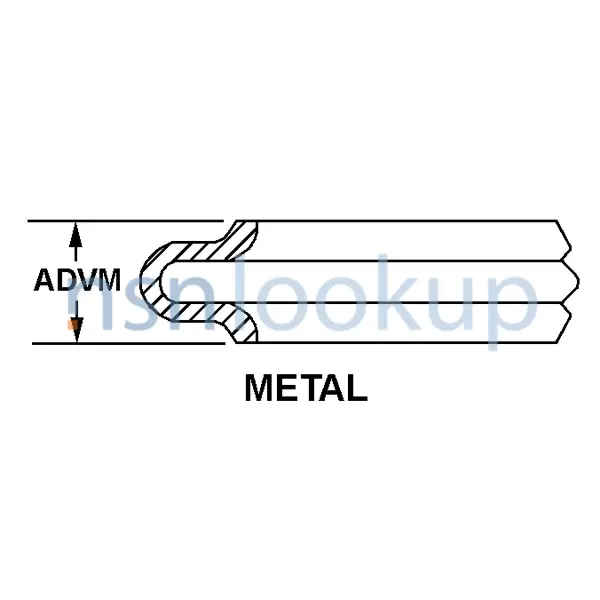

- Cross-Sectional Shape Style [AAGR]
- Metal
- Cross-Sectional Thickness [ADVM]
- 0.007 Inches Minimum And 0.009 Inches Maximum
- Material [MATT]
- Nickel Alloy 718 Overall
- Outside Diameter [ABKV]
- 24.325 Inches Minimum And 24.375 Inches Maximum
- Material Document And Classification [MDCL]
- Ams 5596 Assn Std Single Material Response Overall
- Style Designator [STYL]
- Circular
Weapon Systems (WSDC) 5330-01-326-0792
DLA Procurement Analysis 5330-01-326-0792
- Last Stock Position:
- 54 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5330-01-326-0792
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5330-01-326-0792
Freight Information 5330-01-326-0792
5330-01-326-0792 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 194120. A Sub NMFC of G. It has a NMFC Description of WASHERS/GASKETS/PCKG DVCS NOI SUB7. 5330-01-326-0792 is rated as class 92.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 95100 which rates the freight between FCL and LCL. 5330-01-326-0792 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5330-01-326-0792 is not classified as a special type of cargo when transported by water. 5330-01-326-0792 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5330-01-326-0792
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Non-Metallic Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- ASTM-D4727, Fiberboard used as a Stiffener on Both Sides of Item
- --
- MIL-DTL-117, Type II, Class C, Style 1, Heavy Duty, Waterproof, Greaseproof, Opaque Bag
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Procurement History 5330-01-326-0792 2 Records
Contracting Technical Data File (CTDF) 5330-01-326-0792 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- L
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
