5330-01-317-9050
Nonmetallic Channel Seal
5330013179050 013179050 XTC20R10
An item fabricated from NONMETALLIC CHANNEL. It may be (1) formed to a specific shape with or without joints, (2) a single piece whose ends have been secured together to form a specific shape, or (3) a straight item fabricated to a specific length for a specific application with end cuts or joints. Items except for molded corners, end cut(s), and mounting facilities, such as mounting hole(s), slot(s), press fit buttons, and the like, must be one continuous cross section. It may have fabric, cord, or metal reinforcement. It is specifically designed for use in applications where there is no relative motion between joined parts. Excludes GASKET; GROMMET, NONMETALLIC; and PACKING, PREFORMED. For straight items with square end cuts and without mounting hole(s), slot(s), or press fit buttons, see NONMETALLIC CHANNEL. View more Nonmetallic Channel Seal
May 2023
5
Marketplace 5330-01-317-9050
Request a Quotation from participating marketplace vendors
Related Documents 5330-01-317-9050 1+ Documents (More...)
/fsg-53/fsc-5330/us
(Identification) 1/2 NSN 5330-01-317-9050 (Identification) 2/2 - - 1.
RQST NE Updated Every Day 5330-01-317-9050 RQST Updated Every Day 5330-01-317-9050 RQST NE Related Documents
Restrictions 5330-01-317-9050
5330-01-317-9050 is a Nonmetallic Channel Seal that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5330-01-317-9050
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5330-01-317-9050
- US Army (A919)
- Effective Date:
- 1 Mar 2005
- Former MOE Rule:
- A187
- Supplementary Receivers:
- BF
Approved Sources 5330-01-317-9050
- Part Number
- Manufacturer
- Status
- XTC20R10
- Manufacturer
- 98376 - Star Cases Llc (Active)
- Primary Buy
- Primary Buy
Datasheet 5330-01-317-9050
- Characteristic
- Specifications
- FIIG
- Specifications
- A032A0
- End Item Identification [AGAV]
- 4925-01-261-1140
- Construction [CQCF]
- One-Piece
- Cross-Sectional Shape Style [AAGR]
- Open Channel
- Material [MATT]
- Rubber Neoprene Overall
- Left Side Flange Height [ADXJ]
- 0.200 Inches Nominal
- Left Side Flange Thickness At Web [ADXP]
- 0.600 Inches Nominal
- Left Side Flange Thickness [ADXL]
- 0.060 Inches Nominal

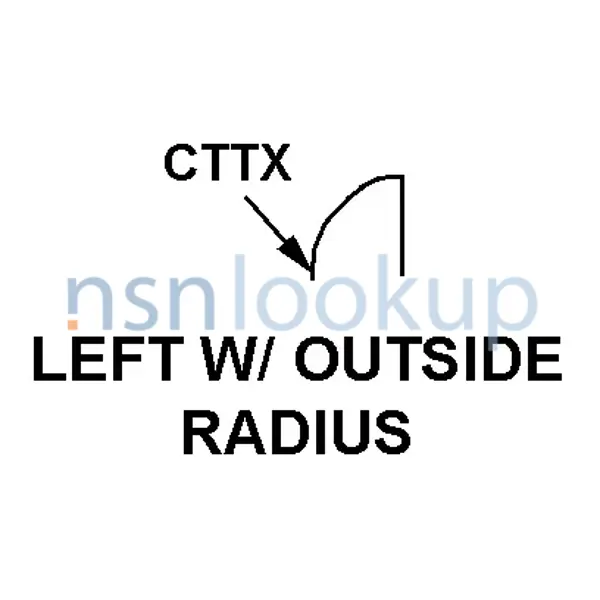

- Left Tip Style [CTNK]
- Left W/ Outside Radius
- Left Tip Radius [CTTX]
- 0.300 Inches Nominal
- Right Side Flange Thickness At Web [ADXQ]
- 0.600 Inches Nominal
- Right Side Flange Thickness [ADXM]
- 0.030 Inches Nominal
- Right Tip Relationship With Left Tip [CTNL]
- Not Identical
- Right Flange Fillet Radius At Web [ADXX]
- 0.200 Inches Nominal
- Web Thickness [ADXN]
- 0.100 Inches Nominal
- Web Width [ADXH]
- 0.200 Inches Nominal
DLA Procurement Analysis 5330-01-317-9050
Management Data 5330-01-317-9050
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- CC
- Other Aircraft Categories
Multi-Application Aviation Spares
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
NATO Stock Numbers Related to 5330-01-317-9050
Freight Information 5330-01-317-9050
5330-01-317-9050 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 156600. A Sub NMFC of Z. It has a NMFC Description of PLASTIC/RUBBER ARTICLE VIZ:. 5330-01-317-9050 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 77670 which rates the freight between FCL and LCL. It has a Water Commodity Code (WCC) of 596 for ocean manifesting and military sealift. 5330-01-317-9050 is not classified as a special type of cargo when transported by water. 5330-01-317-9050 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 5330-01-317-9050 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
