5330-01-284-7393
Nonmetallic Special Shaped Section Seal
5330012847393 012847393 11102737801 10273780-1 GR874 X-1174
An item fabricated from NONMETALLIC SPECIAL SHAPED SECTION. It may be (1) formed to a specific shape with or without joints, (2) a single piece whose ends have been secured together to form a specific shape, or (3) a straight item fabricated to a specific length for a specific application with end cuts or joints. Items, except for molded corners, slot(s), press fit buttons, and the like must be of one continuous cross section. It is specifically designed for use in applications where there is no relative motion between joined parts. Excludes BUSHING, NONMETALLIC; PACKING, PERFORMED; PAD, CUSHIONING;and SEAL, PLAIN. For straight items with square end cuts and without mounting hole(s), slot(s), or press fit buttons, see NONMETALLIC SPECIAL SHAPED SECTION. View more Nonmetallic Special Shaped Section Seal
January 2024
5
Marketplace 5330-01-284-7393
Request a Quotation from participating marketplace vendors
Updated Every Day Updated Every Day
Updated Every Day Related Documents 5330-01-284-7393 5+ Documents (More...)
GR874 SEAL,NONMETALLIC SPECIAL SHAPED SECTION 1 FT NS Request Quotation 10273780-1 SEAL,NONMETALLIC SPECIAL
... 10273780-1 SEAL 5 FT NS Request Quotation X-1174 SEAL 1 FT NS Request Quotation Subscribe to View
Related Documents 5985-00-928-1671 3+ Documents RQST https//www.nsnlookup.com /fsg-53/fsc-5330/us 5330-01-284-7393
www.nsnlookup.com /fsg-59/fsc-5985/us 5985-00-928-1671 Electrical Dummy Load 5985009281671009281671 GR874
GR874-W50B DUMMY LOAD,ELECTRICAL RQST NS Request Quotation 874-W50B DUMMY LOAD,ELECTRICAL RQST NS Request
www.nsnlookup.com /fsg-59/fsc-5985/us 5985-00-928-1671 Electrical Dummy Load 5985009281671 009281671 GR874
Restrictions 5330-01-284-7393
5330-01-284-7393 is a Nonmetallic Special Shaped Section Seal that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5330-01-284-7393
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5330-01-284-7393
- US Army (A919)
- Effective Date:
- 1 Mar 2005
- Former MOE Rule:
- A187
- Supplementary Receivers:
- BD
- US Air Force (FXGI)
- Effective Date:
- 1 Mar 2005
- Former MOE Rule:
- FXKZ
- US Navy (N9BZ)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GGGT
- Portugal (ZP01)
- Effective Date:
- 1 Mar 1997
Approved Sources 5330-01-284-7393
- Part Number
- Manufacturer
- Status
- 11102737801
- Manufacturer
- 73801 - Greene Rubber Co Inc (Active)
- Primary Buy
- Primary Buy
- GR874
- 73801 - Greene Rubber Co Inc (Active)
- Original Design
- Original Design
- X-1174
- 97112 - Moore I B Co Inc (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 10273780-1
- 18876 - Us Army Aviation And Missile Command (Active)
- Vendor Drawing
- Vendor Drawing
Datasheet 5330-01-284-7393
- Characteristic
- Specifications
- FIIG
- Specifications
- A032A0
- Material [MATT]
- Rubber Chloroprene Class Cr Overall
- Material Document And Classification [MDCL]
- Mil-R-3065 Cl Sc Mil Spec Single Material Response Overall
- Construction [CQCF]
- Solid

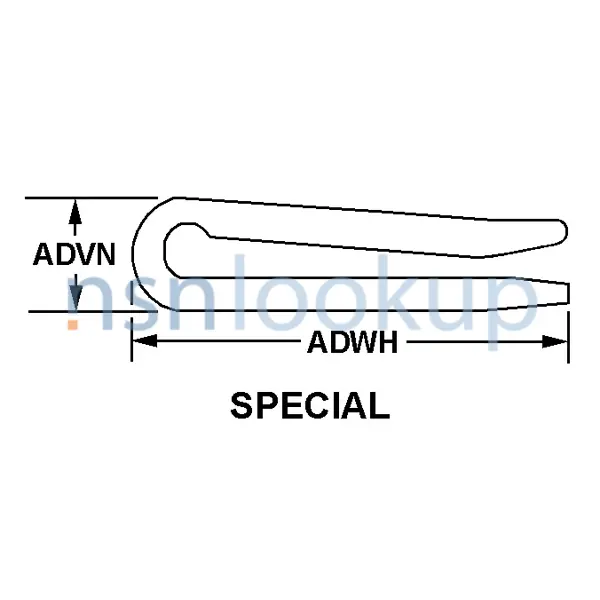

- Cross-Sectional Shape Style [AAGR]
- Special
- Cross-Sectional Height [ADVN]
- 0.140 Inches Nominal
- Cross-Sectional Width [ADWH]
- 0.375 Inches Nominal
Weapon Systems (WSDC) 5330-01-284-7393
DLA Procurement Analysis 5330-01-284-7393
- Last Stock Position:
- 3 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5330-01-284-7393
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- SX
- SICA RESIDUAL MMAC-OC-ALC
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5330-01-284-7393
Freight Information 5330-01-284-7393
5330-01-284-7393 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 194120. A Sub NMFC of Z. It has a NMFC Description of WASHERS/GASKETS/PCKG DVCS NOI. 5330-01-284-7393 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 95100 which rates the freight between FCL and LCL. 5330-01-284-7393 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 596 for ocean manifesting and military sealift. 5330-01-284-7393 is not classified as a special type of cargo when transported by water. 5330-01-284-7393 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5330-01-284-7393
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Non-Metallic Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- --
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- --
- --
- MIL-DTL-117, Type III, Class C, Style 1, Medium Duty, Waterproof, Greaseproof, Opaque Bag
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
