5330-01-236-2585
Gasket
5330012362585 012362585 212450
A deformable material which prevents the passage of matter through the joint formed when two faces are joined. It may be metallic or nonmetallic, lubricated or impregnated, solid or hollow cross section. It may be made to any predetermined dimension and shape. Excludes flat disks, items made of felt material and items having joints. For round metal and plastic items with an aperture and a solid rectangular cross section, see WASHER, FLAT; SHIM; BEARING, WASHER, THRUST; and SPACER RING. Excludes DISK, VALVE; SEAL, NONMETALLIC ANGLE; SEAL, NONMETALLIC CHANNEL; SEAL, NONMETALLIC SPECIAL SHAPED SECTION; SHIELDING GASKET, ELECTRONIC; and RING, SEALING JAR. View more Gasket
January 2023
4
Marketplace 5330-01-236-2585
Request a Quotation from participating marketplace vendors
Related Documents 5330-01-236-2585 5+ Documents (More...)
Gasket 5330012362585 012362585,212450 212450 A deformable material which prevents the passage of matter
RQST NE Updated Every Day 5330-01-236-2585 RQST Updated Every Day 5330-01-236-2585 RQST NE Related Documents
to enable JavaScript in your web browser . 6625-99-310-0934Lead Test6625993100934 9931009340-OWE-212450
to enable JavaScript in your web browser . 6625-99-310-0934Lead Test6625993100934 9931009340-OWE-212450
enable JavaScript in your web browser . 2910-14-237-1214Carburetor Nozzle2910142371214 142371214 212450
Gasket 5330012362585 012362585,212450 - Upgrade for $1 a day Upgrade your Account Upgrade 5330-
www.nsnlookup.com /fsg-59/fsc-5910/us 5910-01-669-0403 Gas Dielectric Variable Capacitor 016690403 212450
Day 5910-01-669-0403 RQST NE Related Documents https//www.nsnlookup.com /fsg-53/fsc-5330/us 5330-01-236-2585
) United Kingdom (ZK) Italy (ZR) Approved Sources 1560-99-778-1294 Part NumberManufacturerStatusP-212450
Restrictions 5330-01-236-2585
5330-01-236-2585 is a Gasket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
End Users 5330-01-236-2585
- United Kingdom (ZK01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5330-01-236-2585
- Part Number
- Manufacturer
- Status
- 212450
- Manufacturer
- 61208 - Twin Disc, Incorporated (Active)
- Primary Buy
- Primary Buy
Datasheet 5330-01-236-2585
- Characteristic
- Specifications
- FIIG
- Specifications
- A032A0
- Aperture Diameter [ABVL]
- 3.085 Inches Nominal
- Bolt Circle Diameter [ABKG]
- 3.500 Inches Nominal
- Cross-Sectional Shape Style [AAGR]
- Rectangular Metal
- Cross-Sectional Thickness [ADVM]
- 0.026 Inches Minimum And 0.036 Inches Maximum
- Hole Diameter [AAUB]
- 0.406 Inches Nominal
- Material Document And Classification [MDCL]
- Sae Assn Std Single Material Response Overall
- Material [MATT]
- Steel Comp 1151 Overall
- Outside Corner Radius [ADPW]
- 0.400 Inches Nominal

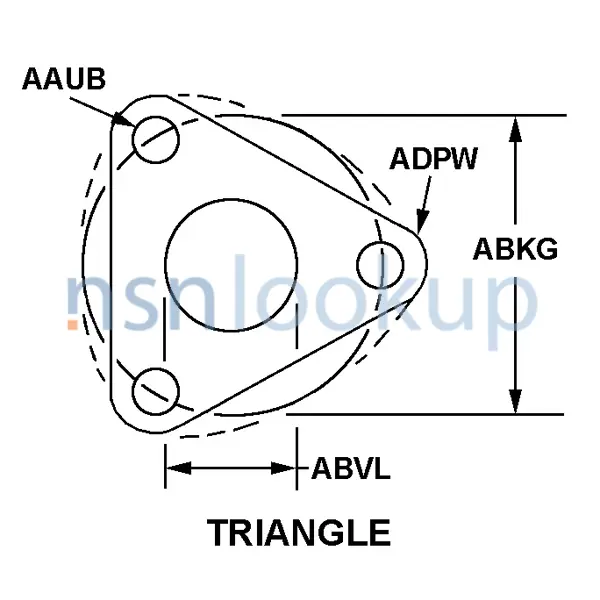

- Style Designator [STYL]
- Triangle
Similar Supply Items to 5330-01-236-2585
Freight Information 5330-01-236-2585
5330-01-236-2585 has freight characteristics managed by the United Kingdom (UK).. 5330-01-236-2585 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
