5330-01-199-5904
Plain Seal
5330011995904 011995904 RW4/790214 23X3073 RW4/790214-1 M1-D6-S6-525
A pliable rubber or composition ring-shaped element, split or jointless (solid) not encased in a metal shell, but having a spring, spreader and/or molded-in reinforcement. It is designed to be pressmounted between fixed and movable or moving parts to form a tight and effective seal. View more Plain Seal
January 2023
5
Marketplace 5330-01-199-5904
Request a Quotation from participating marketplace vendors
Related Documents 5330-01-199-5904 1+ Documents (More...)
/fsc-5330/us 5330-01-199-5904 Plain Seal 5330011995904011995904,RW4/790214 RW4/79021423X3073RW4/790214
Secondary Buy RNCC 5 RNVC 2 DAC 6 RW4/790214-1 K0524 - David Brown Special https//www.nsnlookup.com
Restrictions 5330-01-199-5904
5330-01-199-5904 is a Plain Seal that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5330-01-199-5904
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5330-01-199-5904
- US Coast Guard (C056)
- Effective Date:
- 1 Jun 2010
- Former MOE Rule:
- C165
Approved Sources 5330-01-199-5904
- Part Number
- Manufacturer
- Status
- RW4/790214
- Manufacturer
- K0524 - David Brown Special Products Ltd (Replaced)
- Original Design
- Original Design
- 23X3073
- 73680 - Garlock Sealing Technologies Llc (Active)
- Secondary Buy
- Secondary Buy
- RW4/790214-1
- K0524 - David Brown Special Products Ltd (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- M1-D6-S6-525
- U2164 - James Walker & Co Ltd (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- RW4/790214
- K2182 - David Brown Gear Systems Limited (Active)
- Advisory Reference
- Advisory Reference
- RW4/790214-1
- K2182 - David Brown Gear Systems Limited (Active)
- Advisory Reference
- Advisory Reference
Datasheet 5330-01-199-5904
- Characteristic
- Specifications
- FIIG
- Specifications
- A032A0
- End Item Identification [AGAV]
- Main Reduction Gear On Board 270 Ft. Wmec Coast Guard Vessels
- Accommodated Shaft Diameter [ABVM]
- 5.250 Inches Nominal
- Construction [CQCF]
- Split

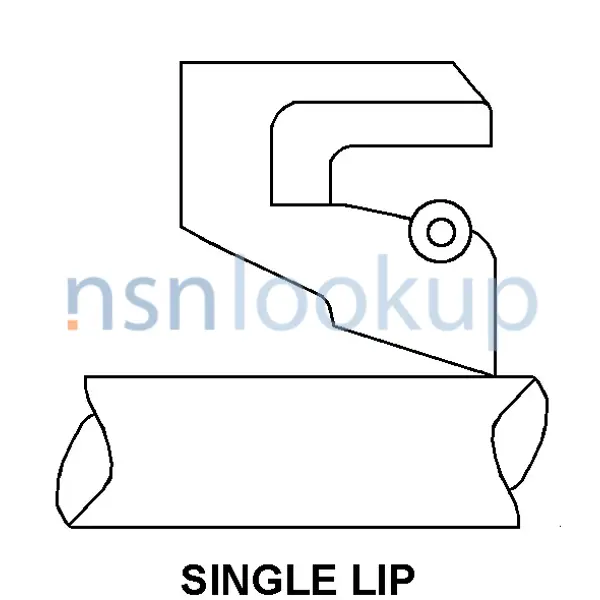

- Cross-Sectional Shape Style [AAGR]
- Single Lip
- Housing Bore Diameter [CPCW]
- 6.750 Inches Nominal
- Material [MATT]
- Rubber Synthetic Overall
- Seal Width [ADUC]
- 1.500 Inches Nominal
- Special Features [FEAT]
- Used On Wmec 270 Ft Class A U. S. Coast Guard Vessels
Management Data 5330-01-199-5904
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Oct 2010
- US Coast Guard (GP)
- EA
- Subscribe
- 1
- EA
Coast Guard
- Inventory Activity:
- S
- Stock Fund item managed for the Coast Guard by the respective Inventory Control Point. A funded requisition is required
- Serial Number Control:
- 0
- Item not controlled by serial number
- Material Control:
- 9
- Non-Hazardous or Non-Sensitive Item
NATO Stock Numbers Related to 5330-01-199-5904
Freight Information 5330-01-199-5904
5330-01-199-5904 has freight characteristics managed by the US Postal Service (USPS).. 5330-01-199-5904 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
