5330-01-131-1700
Nonmetallic Strip Seal
5330011311700 011311700 TP063-4015-B001 13219E4288-1
An item fabricated from nonmetallic material designed to be used where there is no relative motion between joined parts. Items having a square or rectangular cross section must be a single piece whose ends may have been secured together to form a specific shape. It may be formed to a specific shape, except round, with or without joints. It may have fabric, cord or metal reinforcement. Except for molded corners, end cuts, and mounting facilities such as holes, slots, press-fit buttons, or the like, the item must be of one continuous cross section. For straight items with square end cuts and without mounting holes, slots or press-fit buttons see RUBBER STRIP. For items with round cross sections see SEAL, NONMETALLIC ROUND SECTION. Excludes GASKET and PACKING, PREFORMED. View more Nonmetallic Strip Seal
June 2023
7
Marketplace 5330-01-131-1700
Request a Quotation from participating marketplace vendors
Related Documents 5330-01-131-1700 1+ Documents (More...)
TP063-4015-B001 SEAL,NONMETALLIC STRIP 1 EA NS Request Quotation Updated Every Day 5330-01-131-1700 RQST
NE Updated Every Day 5330-01-131-1700 RQST Updated Every Day 5330-01-131-1700 RQST NE Related Documents
Restrictions 5330-01-131-1700
5330-01-131-1700 is a Nonmetallic Strip Seal that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5330-01-131-1700
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5330-01-131-1700
- US Marine Corps (MC47)
- Effective Date:
- 1 Mar 2005
- Former MOE Rule:
- MC10
- US Navy (N9BZ)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GG
- Netherlands (ZN01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5330-01-131-1700
- Part Number
- Manufacturer
- Status
- TP063-4015-B001
- Manufacturer
- 30781 - Parker-Hannifin Corporation (Active)
- Primary Buy
- Primary Buy
- 13219E4288-1
- 97403 - Cecom Lr Center (Active)
- Vendor Drawing
- Vendor Drawing
Datasheet 5330-01-131-1700
- Characteristic
- Specifications
- FIIG
- Specifications
- A032A0
- Aperture Diameter [ABVL]
- 7.750 Inches Nominal

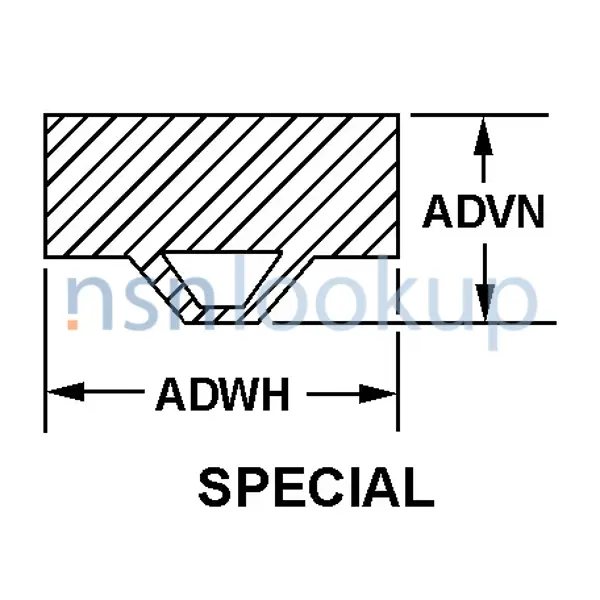

- Cross-Sectional Shape Style [AAGR]
- Special
- Cross-Sectional Height [ADVN]
- 0.239 Inches Nominal
- Cross-Sectional Width [ADWH]
- 0.365 Inches Minimum And 0.371 Inches Maximum
- Fabrication Method [AARN]
- Solid
- Functional Description [FTLD]
- Used On Ramp Bay,Boat Bridge Erection
- Material [MATT]
- Rubber Butadiene-Acrylonitrile Class Nbr Overall
- Special Features [FEAT]
- Three-Piece Construction; Polyamide Nylon Strenthening Material
- Style Designator [STYL]
- Circular
DLA Procurement Analysis 5330-01-131-1700
Management Data 5330-01-131-1700
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Operational Test:
- No Special Procedures
NATO Stock Numbers Related to 5330-01-131-1700
Freight Information 5330-01-131-1700
5330-01-131-1700 has freight characteristics managed by the Netherlands.It has a National Motor Freight Classification (NMFC) of 194120. A Sub NMFC of Z. It has a NMFC Description of WASHERS/GASKETS/PCKG DVCS NOI. 5330-01-131-1700 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. 5330-01-131-1700 is rated as class 77.5 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 95100 which rates the freight between FCL and LCL. It has a Water Commodity Code (WCC) of 596 for ocean manifesting and military sealift. 5330-01-131-1700 is not classified as a special type of cargo when transported by water. 5330-01-131-1700 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5330-01-131-1700
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Non-Metallic Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- ASTM-D4727, Fiberboard used as a Stiffener on Both Sides of Item
- --
- MIL-DTL-117, Type II, Class C, Style 1, Heavy Duty, Waterproof, Greaseproof, Opaque Bag
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
Contracting Technical Data File (CTDF) 5330-01-131-1700 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
