5330-01-117-0021
Nonmetallic Special Shaped Section Seal
5330011170021 011170021 S9082-8K0176
An item fabricated from NONMETALLIC SPECIAL SHAPED SECTION. It may be (1) formed to a specific shape with or without joints, (2) a single piece whose ends have been secured together to form a specific shape, or (3) a straight item fabricated to a specific length for a specific application with end cuts or joints. Items, except for molded corners, slot(s), press fit buttons, and the like must be of one continuous cross section. It is specifically designed for use in applications where there is no relative motion between joined parts. Excludes BUSHING, NONMETALLIC; PACKING, PERFORMED; PAD, CUSHIONING;and SEAL, PLAIN. For straight items with square end cuts and without mounting hole(s), slot(s), or press fit buttons, see NONMETALLIC SPECIAL SHAPED SECTION. View more Nonmetallic Special Shaped Section Seal
November 2023
3
Marketplace 5330-01-117-0021
Request a Quotation from participating marketplace vendors
Related Documents 5330-01-117-0021 2+ Documents (More...)
S9082-8K0176 SEAL,NONMETALLIC SPECIAL SHAPED SECTION 7 EA NS Request Quotation Updated Every Day 5330
-01-117-0021 RQST NE Updated Every Day 5330-01-117-0021 RQST Updated Every Day 5330-01-117-0021 RQST
Restrictions 5330-01-117-0021
5330-01-117-0021 is a Nonmetallic Special Shaped Section Seal that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5330-01-117-0021
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5330-01-117-0021
- US Air Force (FXGI)
- Effective Date:
- 1 Mar 2005
- Former MOE Rule:
- FXKZ
- Brazil (YA01)
- Effective Date:
- 1 Oct 2000
Approved Sources 5330-01-117-0021
- Part Number
- Manufacturer
- Status
- S9082-8K0176
- Manufacturer
- 99193 - Honeywell International Inc. (Active)
- Primary Buy
- Primary Buy
Datasheet 5330-01-117-0021
- Characteristic
- Specifications
- FIIG
- Specifications
- A032A0
- Attachment Method [ABSX]
- Cemented
- Construction [CQCF]
- Solid
- Cross Section Inside Diameter [ADVK]
- 0.312 Inches Nominal

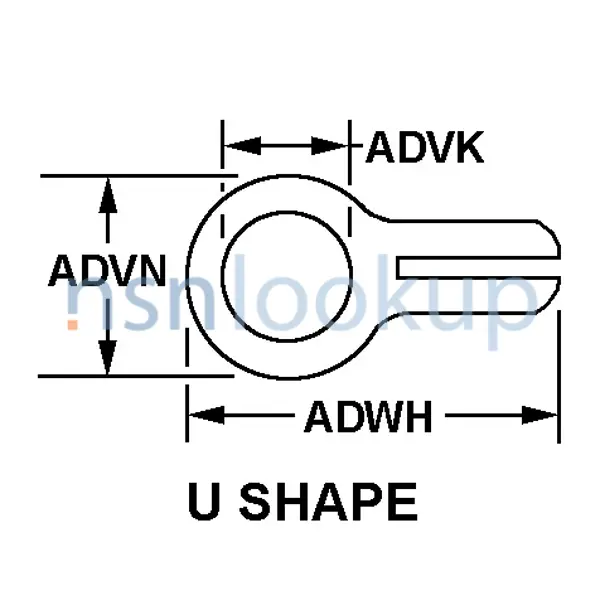

- Cross-Sectional Shape Style [AAGR]
- U Shape
- Cross-Sectional Height [ADVN]
- 0.406 Inches Nominal
- Cross-Sectional Width [ADWH]
- 0.781 Inches Nominal
- Fabrication Method [AARN]
- Solid
- Material [MATT]
- Rubber Overall
- Material Document And Classification [MDCL]
- Ams 3303 Assn Std Single Material Response Overall
- Overall Length [ABHP]
- 17.750 Inches Nominal
- Style Designator [STYL]
- Strip
Weapon Systems (WSDC) 5330-01-117-0021
DLA Procurement Analysis 5330-01-117-0021
- Last Stock Position:
- 252 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5330-01-117-0021
Similar Supply Items to 5330-01-117-0021
Freight Information 5330-01-117-0021
5330-01-117-0021 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 194120. A Sub NMFC of Z. It has a NMFC Description of WASHERS/GASKETS/PCKG DVCS NOI. 5330-01-117-0021 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. 5330-01-117-0021 is rated as a variable freight class when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 95100 which rates the freight between FCL and LCL. It has a Water Commodity Code (WCC) of 596 for ocean manifesting and military sealift. 5330-01-117-0021 is not classified as a special type of cargo when transported by water. 5330-01-117-0021 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5330-01-117-0021
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Non-Metallic Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- --
- --
- MIL-DTL-117, Type II, Class C, Style 1, Heavy Duty, Waterproof, Greaseproof, Opaque Bag
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- Any Suitable Container
Procurement History 5330-01-117-0021 1 Records
Contracting Technical Data File (CTDF) 5330-01-117-0021 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- L
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
