5330-01-102-4683

Plain Seal

5330011024683 011024683 132-0484 11669450 B61-80-6122 10086459

A pliable rubber or composition ring-shaped element, split or jointless (solid) not encased in a metal shell, but having a spring, spreader and/or molded-in reinforcement. It is designed to be pressmounted between fixed and movable or moving parts to form a tight and effective seal. View more Plain Seal

Managed by United States

NSN Created on 22 Oct 1980

Data Last Changed
February 2025

NATO Update Count
31

NATO Data Quality

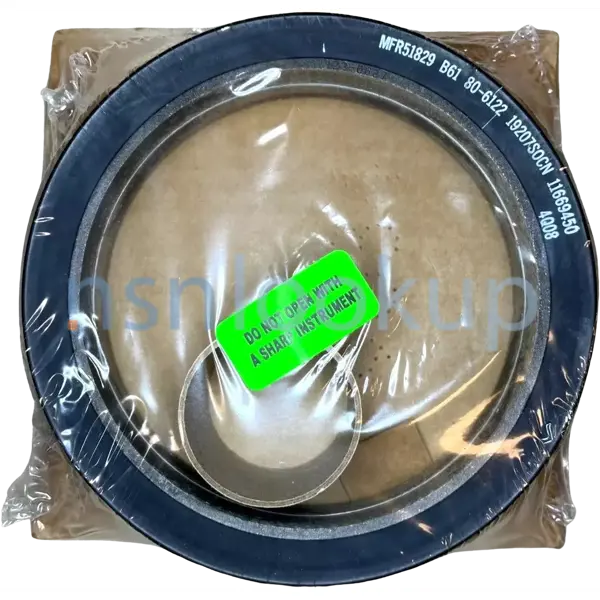

5330-01-102-4683 SEAL,PLAIN 5330011024683 011024683 1/2 — 5330-01-102-4683 Photo 1/2

AAGR Style L3 for 5330-01-102-4683 2/2 — NSN 5330-01-102-4683 (Identification) 2/2

Marketplace 5330-01-102-4683

Need Help?
Request a Quotation from participating marketplace vendors

Subscribe to View Vendor Details...

11669450 SEAL,PLAIN 3 EA NS

Subscribe to View Vendor Details...

011024683.5330 SEAL,PLAIN 1 EA NS

Updated Every Day

5330-01-102-4683 RQST NE

Updated Every Day

5330-01-102-4683 RQST

Updated Every Day

5330-01-102-4683 RQST NE

Restrictions 5330-01-102-4683

5330-01-102-4683 is a Plain Seal that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.

Import and Export 5330-01-102-4683

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 5330-01-102-4683

US Army (A919)
Effective Date:: 1 Apr 2006
Former MOE Rule:: A187
Supplementary Receivers:: AZBD; AMC 3 AMSC B IMC Z IMCACTY AZ

US Marine Corps (MC47)
Effective Date:: 1 Apr 2006
Former MOE Rule:: MC10; AMC 3 AMSC B IMC Z IMCACTY PA

US Navy (N9BZ)
Effective Date:: 1 Dec 2013
Supplementary Collaborators:: GG; AMC 3 AMSC B IMC Z IMCACTY GH

Finland (WF01)
Effective Date:: 1 Feb 2008

France (ZF01)
Effective Date:: 1 Apr 1991

Germany (ZG01)
Effective Date:: 1 Apr 1991

Republic of Korea (ZH01)
Effective Date:: 1 Mar 1999

United Kingdom (ZK01)
Effective Date:: 1 Nov 2010

Italy (ZR01)
Effective Date:: 1 Apr 1991

Denmark (ZS01)
Effective Date:: 25 Sep 1997

Norway (ZT01)
Effective Date:: 1 Feb 1997

Greece (ZU01)
Effective Date:: 1 May 2006

Turkey (ZW01)
Effective Date:: 1 Dec 2005

NATO Maintenance and Supply Agency (ZX01)
Effective Date:: 1 Apr 1991

Approved Sources 5330-01-102-4683

Part Number
Manufacturer
Status
11669450: 19207 - U S Army Tank Automotive Command (Active); Source Control; RNCC 1 RNVC 2 DAC D
132-0484: 11083 - Caterpillar Inc (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
11669450: A9271 - Goriziane Group Spa (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
11669450: 6TD95 - Fabco Welding & Machine, Inc. (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
11669450: 1L0H7 - Ergoseal, Inc (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
B61-80-6122: 51829 - Cr Industries Chicago Rawhide Mfg Co (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
10086459: A486G - Nimikkeistokeskus Ncb Finland (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9

Datasheet 5330-01-102-4683

Characteristic
Specifications
FIIG: A032A0
Accommodated Shaft Diameter [ABVM]: 1.040 Inches Nominal
Construction [CQCF]: One-Piece
Cross-Sectional Shape Style [AAGR]: Dual Lip
Housing Bore Diameter [CPCW]: 4.560 Inches Nominal
Material [MATT]: Rubber Overall
Seal Width [ADUC]: 5.756 Inches Nominal

Weapon Systems (WSDC) 5330-01-102-4683

Subscribe
View WSDC

Subscribe to View Weapon System Codes...

Subscribe
View Data

DLA Procurement Analysis 5330-01-102-4683

Last Stock Position:: 15 In Stock
DLA Administrative Lead Time:: Subscribe
DLA Production Lead Time:: Subscribe

Subscribe to View DLA Inventory and Forecast...

Management Data 5330-01-102-4683

Subscribe
View Prices

Effective Date: Organization; Unit of Issue; Unit Price; Qty Unit Pack
Jul 2023: Department of the Navy (DN); EA; Subscribe; 1
Mar 2023: Defense Logistics Agency (DS); EA; Subscribe; 1
Jan 2023: US Marine Corps (DM); EA; Subscribe; 1
Oct 2021: Defense Logistics Agency (DS); EA; Subscribe; 1
Oct 2020: Defense Logistics Agency (DS); EA; Subscribe; 1
Oct 2019: Department of the Army (DA); EA; Subscribe; 1

Army

Materiel Category and Inventory Manager:

T: Industrial Supplies (DLA/GSA Items)

Appropriation and Budget Activity:

2: Stock Fund Secondary Items

Management Inventory Segment:

2: Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.

Weapons System / End Item / Homogeneous Group:

MM: Armored Carriers
Infantry Fighting Vehicle (M2, M2A1, M2A2), Cavalry Fighting Vehicle (M3, M3A1, M3A2)

Accounting Requirements:

X: Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.

Navy

Cognizance:

9B: Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg

Marine Corps

Stores Account:

1: Stock Fund Account Item

Combat Essentiality:

5: Critical Repair Part to a Combat Essential End Item

Echelon Management:

B2

Operational Test:

: No Special Procedures

Similar Supply Items to 5330-01-102-4683

Freight Information 5330-01-102-4683

5330-01-102-4683 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 194120. A Sub NMFC of Z. It has a NMFC Description of WASHERS/GASKETS/PCKG DVCS NOI. 5330-01-102-4683 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. 5330-01-102-4683 is rated as class 77.5 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 95100 which rates the freight between FCL and LCL. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5330-01-102-4683 is not classified as a special type of cargo when transported by water. 5330-01-102-4683 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
