5330-01-097-0737
Nonmetallic Strip Seal
5330010970737 010970737 B2307110
An item fabricated from nonmetallic material designed to be used where there is no relative motion between joined parts. Items having a square or rectangular cross section must be a single piece whose ends may have been secured together to form a specific shape. It may be formed to a specific shape, except round, with or without joints. It may have fabric, cord or metal reinforcement. Except for molded corners, end cuts, and mounting facilities such as holes, slots, press-fit buttons, or the like, the item must be of one continuous cross section. For straight items with square end cuts and without mounting holes, slots or press-fit buttons see RUBBER STRIP. For items with round cross sections see SEAL, NONMETALLIC ROUND SECTION. Excludes GASKET and PACKING, PREFORMED. View more Nonmetallic Strip Seal
May 2023
5
Marketplace 5330-01-097-0737
Request a Quotation from participating marketplace vendors
Related Documents 5330-01-097-0737 1+ Documents (More...)
5330-01-097-0737 1+ Documents ( More... ) https//www.nsnlookup.com /fsg-53/fsc-5330/us 5330-01-097-0737
Nonmetallic Strip Seal 5330010970737 B2307110 An item fabricated from nonmetallic material designed
Restrictions 5330-01-097-0737
5330-01-097-0737 is a Nonmetallic Strip Seal This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5330-01-097-0737
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5330-01-097-0737
- MOE Rule:
- B481
- Effective Date:
- 1 Jan 2004
Approved Sources 5330-01-097-0737
- Part Number
- Manufacturer
- Status
- B2307110
- Manufacturer
- 32828 - Kaydon Corporation (Active)
- Primary Buy
- Primary Buy
Datasheet 5330-01-097-0737
- Characteristic
- Specifications
- FIIG
- Specifications
- A032A0
- Attachment Method [ABSX]
- Cemented
- Construction [CQCF]
- Solid

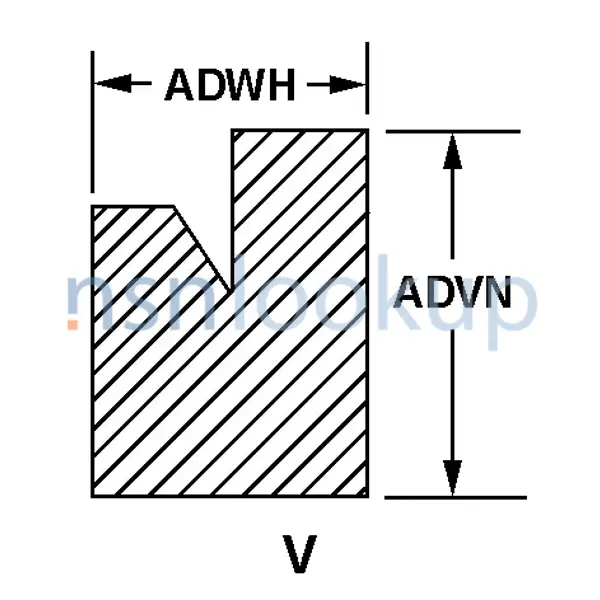

- Cross-Sectional Shape Style [AAGR]
- V
- Cross-Sectional Height [ADVN]
- 0.312 Inches Nominal
- Cross-Sectional Width [ADWH]
- 0.188 Inches Nominal
- Fabrication Method [AARN]
- Solid
- Material [MATT]
- Rubber Synthetic Overall
- Smooth Finish Surface Location [ADYV]
- External
- Overall Length [ABHP]
- 50.000 Inches Nominal
- Style Designator [STYL]
- Strip
Management Data 5330-01-097-0737
NATO Stock Numbers Related to 5330-01-097-0737
Freight Information 5330-01-097-0737
5330-01-097-0737 has freight characteristics.. 5330-01-097-0737 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
