5330-01-070-3361
Preformed Packing
5330010703361 010703361 12266910 48110 957C048110
A circular shaped item with an aperture manufactured to predetermined dimensions and designed for use as a seal in stuffing boxes, packing nuts, and the like. It may be (1) any nonmetallic molded or formed ring (except solid (without joint) rings having a square or rectangular cross section); or (2) any shredded metal or metal foil type metallic or semimetallic rings. Excludes felt items but includes multimaterial items in which one of the materials is felt. For solid (without joints) nonmetallic items with a square or rectangular cross section, see WASHER (as modified) and GASKET. For rubber items specifically designed for weather-proofing doors, windows, chests, and the like see SEAL, NONMETALLIC ANGLE; SEAL, NONMETALLIC CHANNEL; and SEAL, NONMETALLIC, SPECIAL SHAPED SECTION. For circular (with aperature) nonmetallic items with a solid round cross-section see O-RING. Excludes CUP, COMPRESSION; GASKET; WASHER (as modified); and FELT, MECHANICAL, PREFORMED. View more Preformed Packing
November 2023
8
Marketplace 5330-01-070-3361
Request a Quotation from participating marketplace vendors
Related Documents 5330-01-070-3361 5+ Documents (More...)
United States (US) 4. 5330-01-070-3361 Marketplace Restrictions Approved Sources Datasheet Management
RQST NE Updated Every Day 5330-01-070-3361 RQST Updated Every Day 5330-01-070-3361 RQST NE Related
243 A nonmetallic circular item with an aperature, having a solid round cross-section. 48110 O-Ring
https//www.nsnlookup.com /fsg-53/fsc-5330/us 5330-01-070-3361 Preformed Packing 5330010703361 010703361
a day Upgrade your Account Upgrade 4920-00-448-2990Power Sup Card Assy4920004482990 0044829907807-48110
a day Upgrade your Account Upgrade 4920-00-448-2990Power Sup Card Assy4920004482990 0044829907807-48110
a day Upgrade your Account Upgrade 6640-01-454-1067Evaporation Workstation6640014541067 014541067 48110
O-Ring 5331144598867 144598867,48110 48110 243 A nonmetallic circular item with an aperature, having
day Upgrade your Account Upgrade 3040-00-782-9976Rigid Connecting Link3040007829976 007829976 215-48110
2925-00-159-8215 Engine Generator Stator 2925001598215 448-2990 Part NumberManufacturerStatus7807-48110
Restrictions 5330-01-070-3361
5330-01-070-3361 is a Preformed Packing that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5330-01-070-3361
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5330-01-070-3361
- US Army (A919)
- Effective Date:
- 1 Mar 2005
- Former MOE Rule:
- A187
- Supplementary Receivers:
- AZBF
- US Navy (N9BZ)
- Effective Date:
- 1 Mar 2005
- Former MOE Rule:
- N9ZD
- Greece (ZU01)
- Effective Date:
- 1 May 2006
Approved Sources 5330-01-070-3361
- Part Number
- Manufacturer
- Status
- 12266910
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
- 48110
- 34228 - L3 Technologies, Inc. (Active)
- Secondary Buy
- Secondary Buy
- 957C048110
- 34228 - L3 Technologies, Inc. (Active)
- Canceled/Obsolete
- Canceled/Obsolete

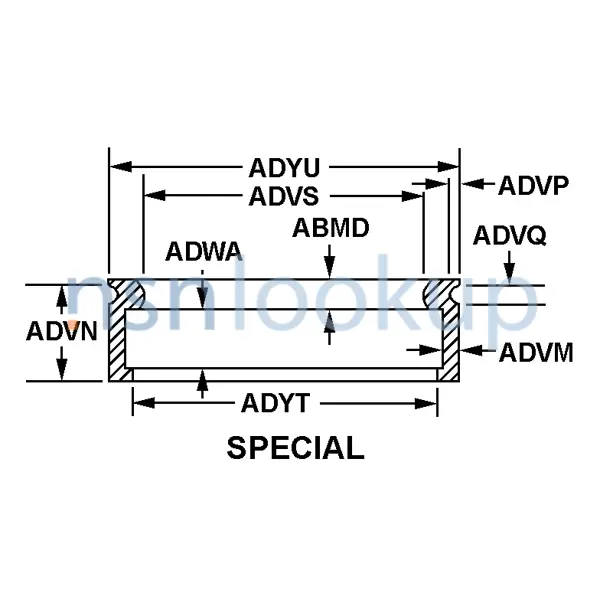

Datasheet 5330-01-070-3361
- Characteristic
- Specifications
- FIIG
- Specifications
- A032A0
- Center Hole Diameter [ADYT]
- 4.687 Inches Nominal
- Color [HUES]
- Black
- Cross-Sectional Height [ADVN]
- 0.687 Inches Nominal
- Cross-Sectional Shape Style [AAGR]
- Special
- Cross-Sectional Thickness [ADVM]
- 0.062 Inches Nominal
- Material [MATT]
- Carbon Overall
- Outer Groove Depth [ADVP]
- 0.250 Inches Nominal
- Outer Groove Width [ADVQ]
- 0.250 Inches Nominal
- Inner Groove Width [ADWA]
- 0.312 Inches Nominal
- Lip Inside Diameter [ADVS]
- 4.375 Inches Nominal
- Recess Diameter [ABMD]
- 0.312 Inches Nominal
- Peripheral Diameter [ADYU]
- 4.999 Inches Nominal
Weapon Systems (WSDC) 5330-01-070-3361
DLA Procurement Analysis 5330-01-070-3361
- Last Stock Position:
- 7 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5330-01-070-3361
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 5330-01-070-3361
Freight Information 5330-01-070-3361
5330-01-070-3361 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 148520. A Sub NMFC of X. It has a NMFC Description of PACKING RUBR/GUM COMPOUND O/T FOAM. 5330-01-070-3361 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. 5330-01-070-3361 is rated as class 70 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 74340 which rates the freight between FCL and LCL. 5330-01-070-3361 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 596 for ocean manifesting and military sealift. 5330-01-070-3361 is not classified as a special type of cargo when transported by water. 5330-01-070-3361 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 5330-01-070-3361 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- S
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
