5330-01-040-0445
Nonmetallic Strip Seal
5330010400445 010400445 12252250
An item fabricated from nonmetallic material designed to be used where there is no relative motion between joined parts. Items having a square or rectangular cross section must be a single piece whose ends may have been secured together to form a specific shape. It may be formed to a specific shape, except round, with or without joints. It may have fabric, cord or metal reinforcement. Except for molded corners, end cuts, and mounting facilities such as holes, slots, press-fit buttons, or the like, the item must be of one continuous cross section. For straight items with square end cuts and without mounting holes, slots or press-fit buttons see RUBBER STRIP. For items with round cross sections see SEAL, NONMETALLIC ROUND SECTION. Excludes GASKET and PACKING, PREFORMED. View more Nonmetallic Strip Seal
November 2023
14
Marketplace 5330-01-040-0445
Request a Quotation from participating marketplace vendors
Related Documents 5330-01-040-0445 1+ Documents (More...)
(Identification) 1/2 NSN 5330-01-040-0445 (Identification) 2/2 - - 1.
RQST NE Updated Every Day 5330-01-040-0445 RQST Updated Every Day 5330-01-040-0445 RQST NE Related Documents
Restrictions 5330-01-040-0445
5330-01-040-0445 is a Nonmetallic Strip Seal that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5330-01-040-0445
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5330-01-040-0445
- US Army (A919)
- Effective Date:
- 1 Mar 2005
- Former MOE Rule:
- A187
- Supplementary Receivers:
- AZ
- Spain (YB01)
- Effective Date:
- 1 May 1997
- Morocco (YP01)
- Effective Date:
- 1 Nov 2008
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Mar 2010
- Greece (ZU01)
- Effective Date:
- 1 Aug 1995
- Turkey (ZW01)
- Effective Date:
- 1 Dec 2005
Approved Sources 5330-01-040-0445
- Part Number
- Manufacturer
- Status
- 12252250
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
- 5330010400445
- SCY13 - E.C.A Etablissement (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 5330010400445
- A00AM - E.C.A Etablissement Central Des (Active)
- NATO Reference
- NATO Reference
Datasheet 5330-01-040-0445
- Characteristic
- Specifications
- FIIG
- Specifications
- A032A0
- Attachment Method [ABSX]
- Cemented
- Construction [CQCF]
- Split

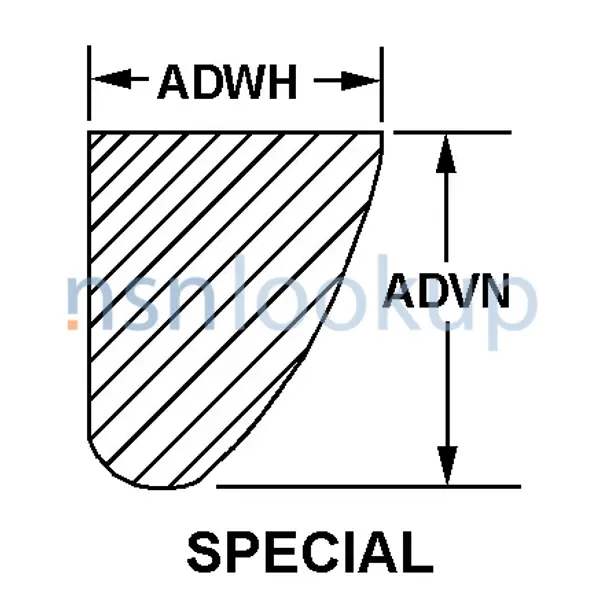

- Cross-Sectional Shape Style [AAGR]
- Special
- Cross-Sectional Height [ADVN]
- 0.320 Inches Nominal
- Cross-Sectional Width [ADWH]
- 0.500 Inches Nominal
- Fabrication Method [AARN]
- Cellular, Exploded
- Material [MATT]
- Rubber Chloroprene Class Cr Backing
- Material [MATT]
- Rubber Polyisoprene Natural Class Nr Overall Or Rubber Butadiene-Styrene Class Sbr Overall
- Material Document And Classification [MDCL]
- 670 Rc07f1 Mil Std Single Material Response Overall
- Material Document And Classification [MDCL]
- Astm D2000 2Bc515c1f1 Assn Std Single Material Response Backing
- Smooth Finish Surface Location [ADYV]
- Top
- Overall Length [ABHP]
- 68.500 Inches Nominal
- Style Designator [STYL]
- Strip
DLA Procurement Analysis 5330-01-040-0445
Management Data 5330-01-040-0445
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
NATO Stock Numbers Related to 5330-01-040-0445
Freight Information 5330-01-040-0445
5330-01-040-0445 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 194120. A Sub NMFC of Z. It has a NMFC Description of WASHERS/GASKETS/PCKG DVCS NOI. 5330-01-040-0445 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 95100 which rates the freight between FCL and LCL. 5330-01-040-0445 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 596 for ocean manifesting and military sealift. 5330-01-040-0445 is not classified as a special type of cargo when transported by water. 5330-01-040-0445 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5330-01-040-0445
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Non-Metallic Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- MIL-DTL-117, Type III, Class C, Style 1, Medium Duty, Waterproof, Greaseproof, Opaque Bag
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
- No Requirement
Procurement History 5330-01-040-0445 2 Records
Contracting Technical Data File (CTDF) 5330-01-040-0445 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
