5330-00-874-6735

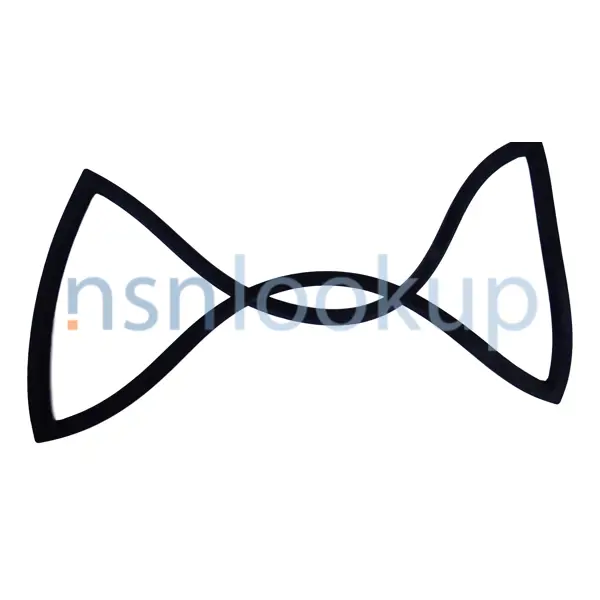

Nonmetallic Special Shaped Section Seal
5330008746735 008746735 10897684
An item fabricated from NONMETALLIC SPECIAL SHAPED SECTION. It may be (1) formed to a specific shape with or without joints, (2) a single piece whose ends have been secured together to form a specific shape, or (3) a straight item fabricated to a specific length for a specific application with end cuts or joints. Items, except for molded corners, slot(s), press fit buttons, and the like must be of one continuous cross section. It is specifically designed for use in applications where there is no relative motion between joined parts. Excludes BUSHING, NONMETALLIC; PACKING, PERFORMED; PAD, CUSHIONING;and SEAL, PLAIN. For straight items with square end cuts and without mounting hole(s), slot(s), or press fit buttons, see NONMETALLIC SPECIAL SHAPED SECTION. View more Nonmetallic Special Shaped Section Seal
May 2023
23
Marketplace 5330-00-874-6735
Request a Quotation from participating marketplace vendors
Related Documents 5330-00-874-6735 5+ Documents (More...)
RQST NE Updated Every Day 5330-00-874-6735 RQST Updated Every Day 5330-00-874-6735 RQST NE Related
Documents 5330-00-874-6735 1+ Documents ( More... ) https//www.nsnlookup.com /fsg-53/fsc-5330/us 5330
fsc-9320/uk 9320-99-768-5031 Nonmetallic Special Shaped Section Seal Items to 9320-99-768-5031 5330-00-874-6735
fsc-8030/fr 8030-14-496-5669 Nonmetallic Special Shaped Section Seal Items to 8030-14-496-5669 5330-00-874-6735
Section Seal Nonmetallic Special Shaped Section Seal Similar Supply Items to 9320-99-768-5031 5330-00-874-6735
Section Seal Nonmetallic Special Shaped Section Seal Similar Supply Items to 9390-99-238-2373 5330-00-874-6735
www.nsnlookup.com /fsg-93/fsc-9320/uk 9320-99-768-5031 Nonmetallic Special Shaped Section Seal 768-5031 5330-00-874-6735
www.nsnlookup.com /fsg-93/fsc-9320/no 9320-25-125-0852 Nonmetallic Special Shaped Section Seal 125-0852 5330-00-874-6735
768-5031 is a Nonmetallic Special Shaped Section Seal Similar Supply Items to 9320-99-768-5031 5330-00-874-6735
Restrictions 5330-00-874-6735
5330-00-874-6735 is a Nonmetallic Special Shaped Section Seal that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5330-00-874-6735
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5330-00-874-6735
- US Army (A919)
- Effective Date:
- 1 Mar 2005
- Former MOE Rule:
- A187
- Supplementary Receivers:
- BF
- US Air Force (FXGI)
- Effective Date:
- 1 Mar 2005
- Former MOE Rule:
- FXKZ
- US Marine Corps (MC47)
- Effective Date:
- 1 Mar 2005
- Former MOE Rule:
- MC10
- Austria (WB01)
- Effective Date:
- 1 Aug 2006
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Israel (YD01)
- Effective Date:
- 1 Aug 2016
- Morocco (YP01)
- Effective Date:
- 1 Nov 2008
- Belgium (ZB01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Netherlands (ZN01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Denmark (ZS01)
- Effective Date:
- 1 Apr 1991
- Norway (ZT01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Aug 1995
Approved Sources 5330-00-874-6735
- Part Number
- Manufacturer
- Status
- 10897684
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
- 5330008746735
- SCY13 - E.C.A Etablissement (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5330-00-874-6735
- Characteristic
- Specifications
- FIIG
- Specifications
- A032A0
- Aperture Length [ADUF]
- 21.375 Inches Nominal
- Aperture Width [ADUE]
- 9.250 Inches Nominal
- Construction [CQCF]
- Solid
- Cross-Sectional Shape Style [AAGR]
- Rectangular One Corner Radius
- Cross-Sectional Height [ADVN]
- 0.375 Inches Minimum And 0.391 Inches Maximum
- Cross-Sectional Width [ADWH]
- 0.625 Inches Minimum And 0.641 Inches Maximum
- Fabrication Method [AARN]
- Solid
- Material [MATT]
- Rubber Chloroprene Class Cr Overall
- Outside Corner Radius [ADPW]
- 0.125 Inches Nominal
- Inside Corner Radius [ADPQ]
- 0.062 Inches Nominal
- Material Document And Classification [MDCL]
- Astm D2000 2Bc415f2 Assn Std Single Material Response Overall
- Style Designator [STYL]
- Non-Circular
Weapon Systems (WSDC) 5330-00-874-6735
DLA Procurement Analysis 5330-00-874-6735
Management Data 5330-00-874-6735
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Operational Test:
- No Special Procedures
Similar Supply Items to 5330-00-874-6735
Freight Information 5330-00-874-6735
5330-00-874-6735 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 194120. A Sub NMFC of Z. It has a NMFC Description of WASHERS/GASKETS/PCKG DVCS NOI. 5330-00-874-6735 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 95100 which rates the freight between FCL and LCL. 5330-00-874-6735 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 596 for ocean manifesting and military sealift. 5330-00-874-6735 is not classified as a special type of cargo when transported by water. 5330-00-874-6735 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5330-00-874-6735
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- ASTM-D4727, Fiberboard used as a Stiffener on Both Sides of Item
- --
- MIL-DTL-117, Type II, Class C, Style 1, Heavy Duty, Waterproof, Greaseproof, Opaque Bag
- Type I, shelf life
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Procurement History 5330-00-874-6735 2 Records
Contracting Technical Data File (CTDF) 5330-00-874-6735 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- K
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
