5330-00-860-0577

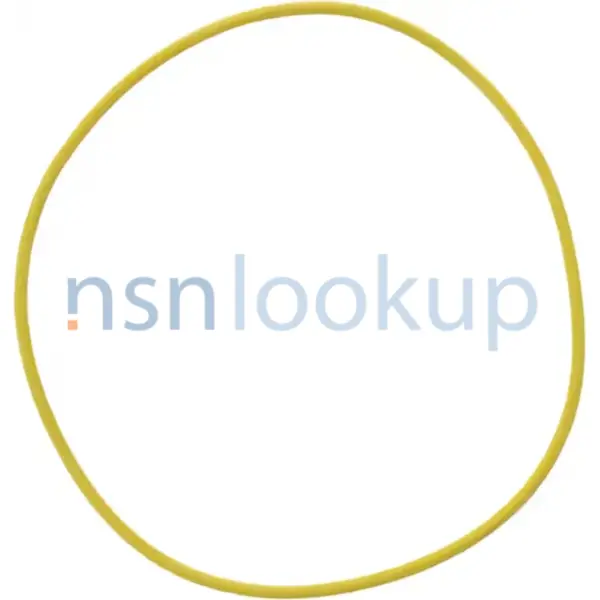

Nonmetallic Round Section Xtg-411 Transmission Seal
5330008600577 008600577 8351892 8351905 25208600577 2520008600577
An item fabricated from nonmetallic material designed to be used where there is no relative motion between joined parts. Items with a solid cross section must be a single piece whose ends may have been secured together to form a specific shape. It may be formed to specific shape with or without joints. It may be a straight item of a specific length with end cuts or joints. It may have a solid or tubular cross section. Except for molded corners, end cuts, and mounting facilities such as mounting holes, slots, press-fit buttons, or the like, the item must be of one continuous round cross section. It may have fabric, cord or metal reinforcement. For straight items with square end cuts and without mounting holes, slots or press-fit buttons see RUBBER ROUND SECTION and TUBING, NONMETALLIC. Excludes GASKET and PACKING, PREFORMED. View more Nonmetallic Round Section Seal
March 2025
27
Marketplace 5330-00-860-0577
Request a Quotation from participating marketplace vendors
Updated Every Day Updated Every Day
Updated Every Day Related Documents 5330-00-860-0577 5+ Documents (More...)
(Identification) 1/2 NSN 5330-00-860-0577 (Identification) 2/2 - - 1.
RQST NE Updated Every Day 5330-00-860-0577 RQST Updated Every Day 5330-00-860-0577 RQST NE Related
Upgrade 5330-00-861-1428Nonmetallic Round Section Seal5330008611428 008611428 8351900 2520008611428 8351892
Upgrade 5330-00-861-1432Nonmetallic Round Section Seal5330008611432 008611432 8351896 2520008611432 8351892
day Upgrade your Account Upgrade 5330-00-910-3709Preformed Packing5330009103709 009103709 8356061 8351892
Nonmetallic Round Section Seal 5330008600577 Upgrade your Account Upgrade 5330-00-860-0577Nonmetallic
day Upgrade your Account Upgrade 5330-00-910-3709Preformed Packing5330009103709 009103709 8356061 8351892
9658Nonmetallic Round Section Seal5330008579658 008579658 8352146 6775122 PC6775122 2520008579658 8351892
day Upgrade your Account Upgrade 5330-00-910-3709Preformed Packing5330009103709 009103709 8356061 8351892
9658Nonmetallic Round Section Seal5330008579658 008579658 8352146 6775122 PC6775122 2520008579658 8351892
Restrictions 5330-00-860-0577
5330-00-860-0577 is a Nonmetallic Round Section Xtg-411 Transmission Seal that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5330-00-860-0577
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5330-00-860-0577
- US Army (A919)
- Effective Date:
- 1 Mar 2005
- Former MOE Rule:
- A187
- Supplementary Receivers:
- AZ
- US Navy (N9BZ)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GG
- Austria (WB01)
- Effective Date:
- 1 Aug 2006
- Spain (YB01)
- Effective Date:
- 1 Feb 1994
- Israel (YD01)
- Effective Date:
- 1 Aug 2016
- Morocco (YP01)
- Effective Date:
- 1 Nov 2008
- Belgium (ZB01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Jan 2015
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Netherlands (ZN01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Mar 2014
- Denmark (ZS01)
- Effective Date:
- 1 Apr 1991
- Norway (ZT01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Aug 1995
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 5330-00-860-0577
- Part Number
- Manufacturer
- Status
- 8351892
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Source Control
- Source Control
- 8351905
- 27418 - Federal-Mogul Corp (Active)
- Primary Buy
- Primary Buy
- 8351905
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
- 8351905
- 5S588 - Lydall Inc Redman Plastics Div (Active)
- Primary Buy
- Primary Buy
- 8351905
- 0F5F7 - Parker-Hannifin Corporation (Active)
- Primary Buy
- Primary Buy
- 25208600577
- SCY13 - E.C.A Etablissement (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 2520008600577
- SCY13 - E.C.A Etablissement (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 8351905
- 09257 - Trelleborg Sealing Solutions Us, (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 8351905
- 99189 - John Crane-Houdaille Inc (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 25208600577
- A00AM - E.C.A Etablissement Central Des (Active)
- NATO Reference
- NATO Reference
- 2520008600577
- A00AM - E.C.A Etablissement Central Des (Active)
- NATO Reference
- NATO Reference
Datasheet 5330-00-860-0577
- Characteristic
- Specifications
- FIIG
- Specifications
- A032A0
- End Item Identification [AGAV]
- 2520-00-894-9533
- Aperture Diameter [ABVL]
- 12.666 Inches Minimum And 12.718 Inches Maximum
- Color [HUES]
- Yellow
- Construction [CQCF]
- Solid
- Cross-Sectional Height [ADVN]
- 12.972 Inches Minimum And 13.036 Inches Maximum
- Cross-Sectional Shape Style [AAGR]
- Rectangular
- Cross-Sectional Width [ADWH]
- 0.088 Inches Minimum And 0.098 Inches Maximum
- Material [MATT]
- Plastic Polytetrafluoroethylene Overall
- Style Designator [STYL]
- Circular
Weapon Systems (WSDC) 5330-00-860-0577
DLA Procurement Analysis 5330-00-860-0577
Management Data 5330-00-860-0577
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5330-00-860-0577
Freight Information 5330-00-860-0577
5330-00-860-0577 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 194090. A Sub NMFC of X. It has a NMFC Description of WASHERS/SEALS. 5330-00-860-0577 is rated as class 60 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 95100 which rates the freight between FCL and LCL. 5330-00-860-0577 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 596 for ocean manifesting and military sealift. 5330-00-860-0577 is not classified as a special type of cargo when transported by water. 5330-00-860-0577 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5330-00-860-0577
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Non-Metallic Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- MIL-DTL-117, Type III, Class C, Style 1, Medium Duty, Waterproof, Greaseproof, Opaque Bag
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Procurement History 5330-00-860-0577 5 Records
- Contract
- Date
- CAGE
- Quantity
- Net Price
- Std Price
- CAGE
- SPE5EM18V3383
- 07 Mar 2018
- Subscribe
- 200
- Subscribe
- Subscribe
- Subscribe
- SPE5E117V2239
- 07 Sep 2017
- Subscribe
- 14
- Subscribe
- Subscribe
- Subscribe
- SPE5EM16V3194
- 11 Mar 2016
- Subscribe
- 50
- Subscribe
- Subscribe
- Subscribe
- SPM5EM13V2472
- 24 Jun 2013
- Subscribe
- 190
- Subscribe
- Subscribe
- Subscribe
- SPM5EM13M1729
- 05 Feb 2013
- Subscribe
- 15
- Subscribe
- Subscribe
- Subscribe
Contracting Technical Data File (CTDF) 5330-00-860-0577 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- K
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
